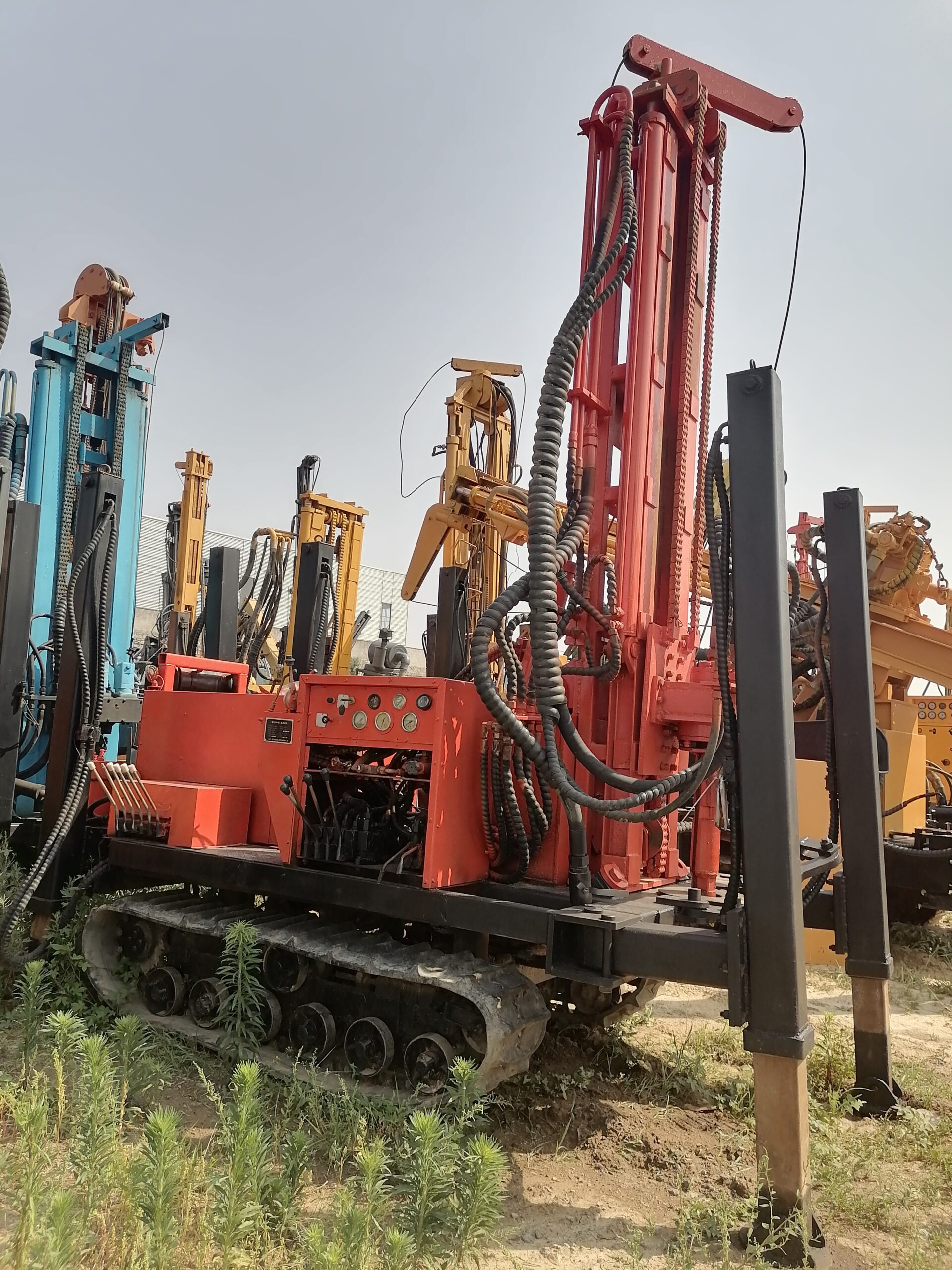

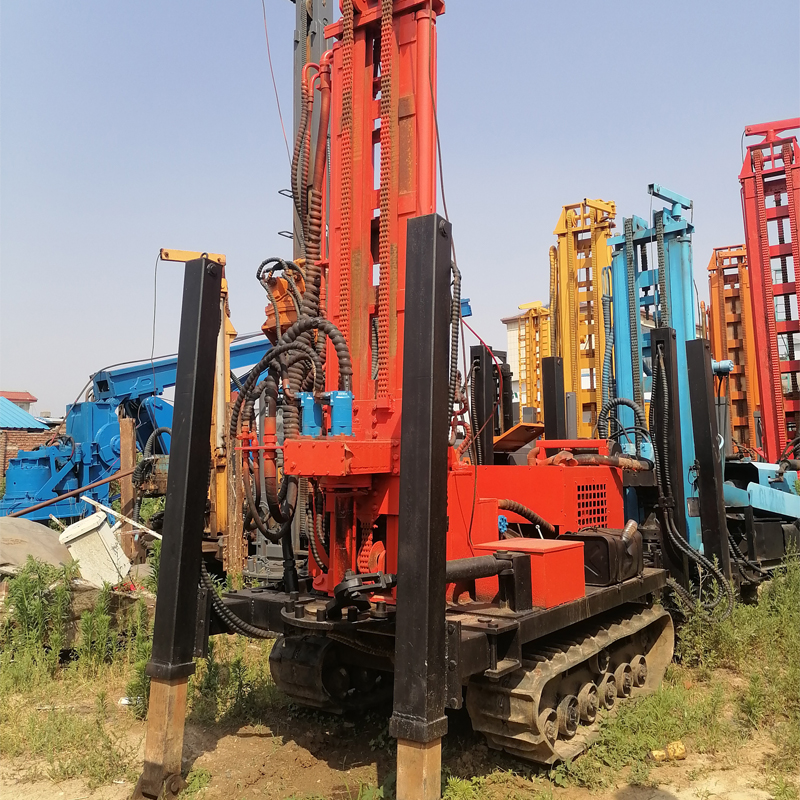

ABT321 KY400 Used Water Well Drilling Rigs

描述

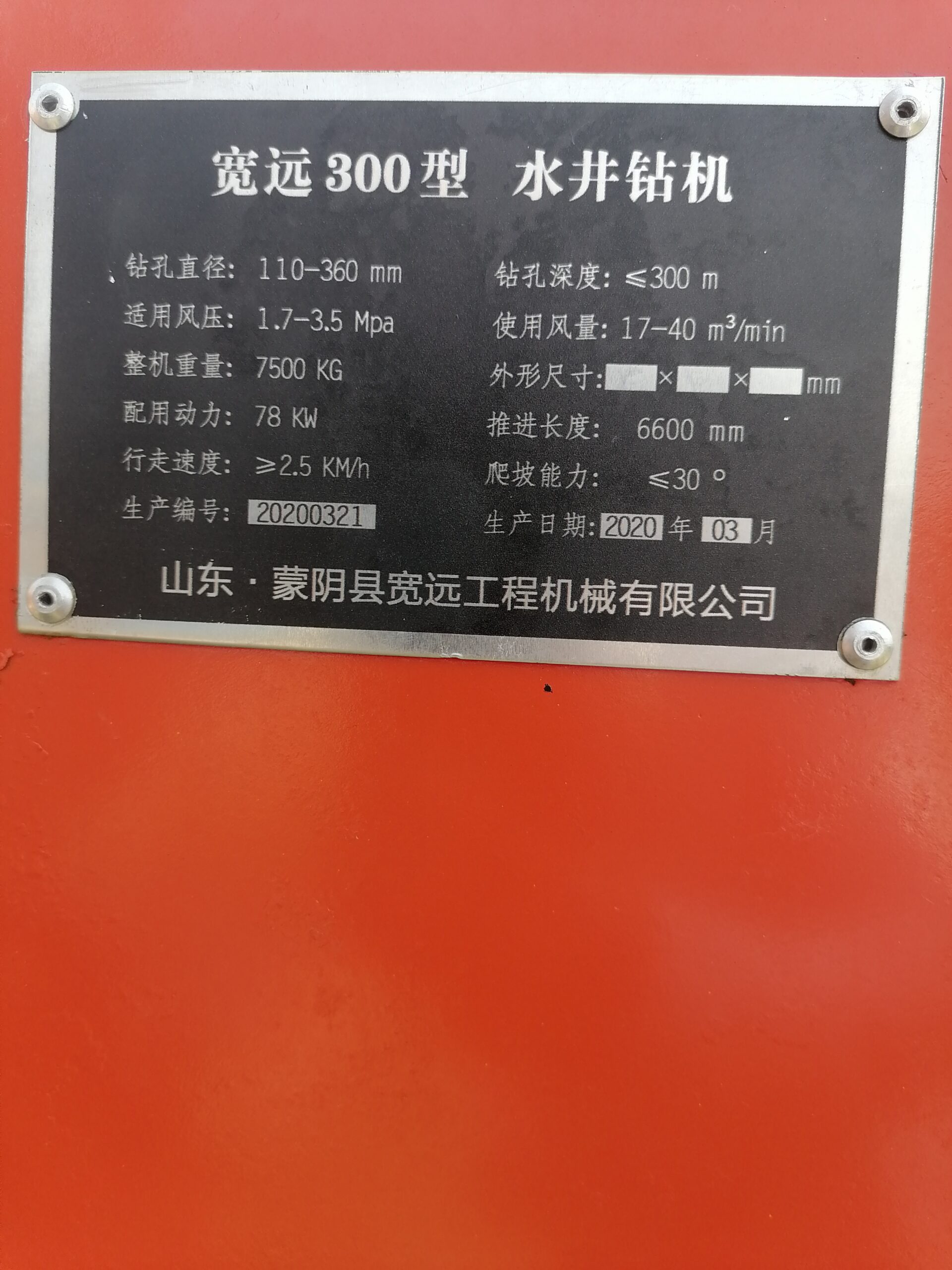

Maximum drilling depth: 300 m

Maximum hole diameter: 360 mm

Maximum travel of power head :6600 mm

Maximum lifting force :15 T

Drill pipe diameter: 89 mm

Mobile Mode Hydraulic Crawler

Walking speed: 2.5 km / h

Climbing ability 25°

Feature:

1. Compact structure, easy to handle and operate.

2. Easy to operate, equipped with a user-friendly operation control system.

3. High drilling efficiency, using efficient hydraulic and power systems to quickly complete drilling operations.

4. Standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, and low failure rate.

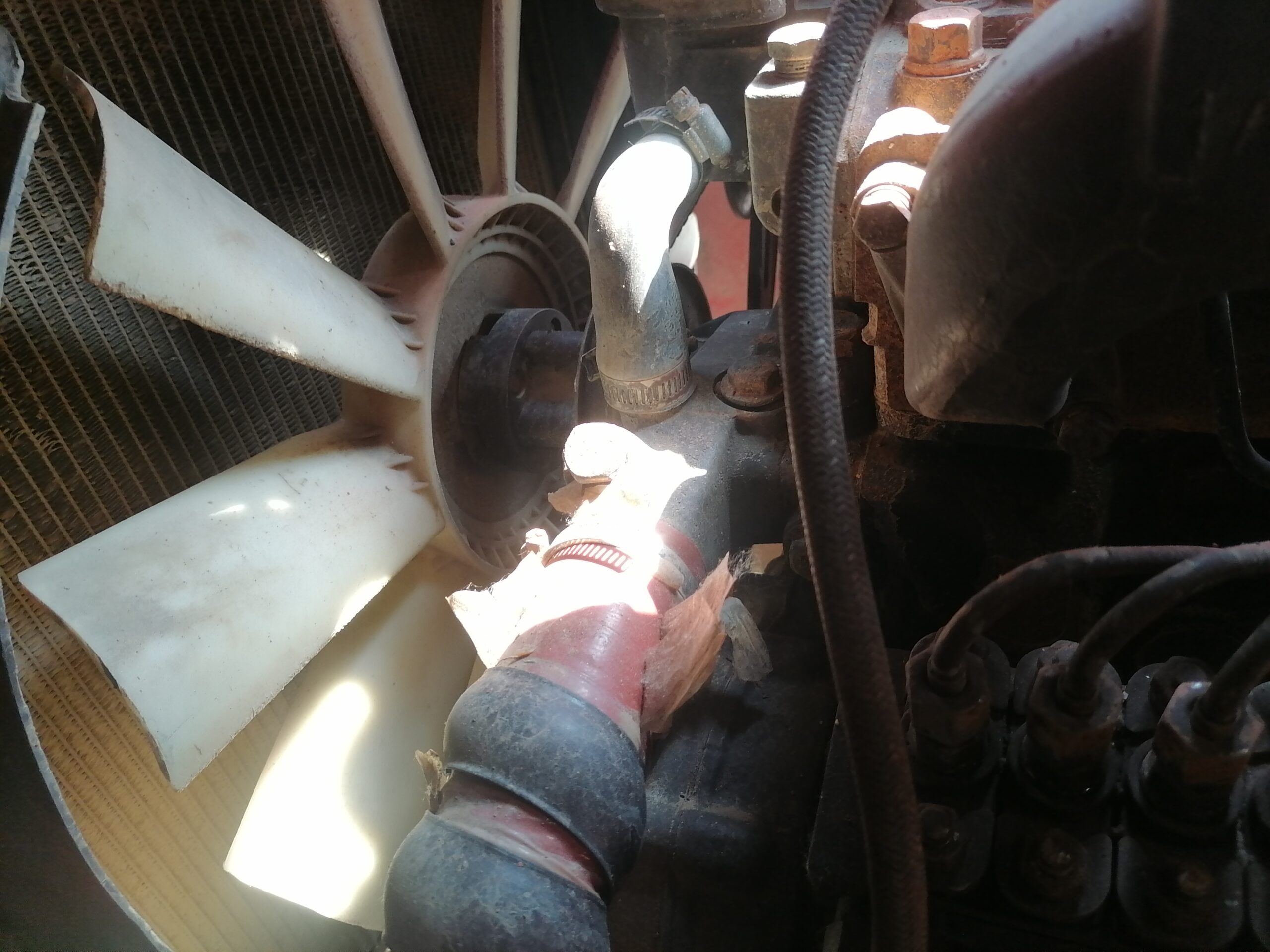

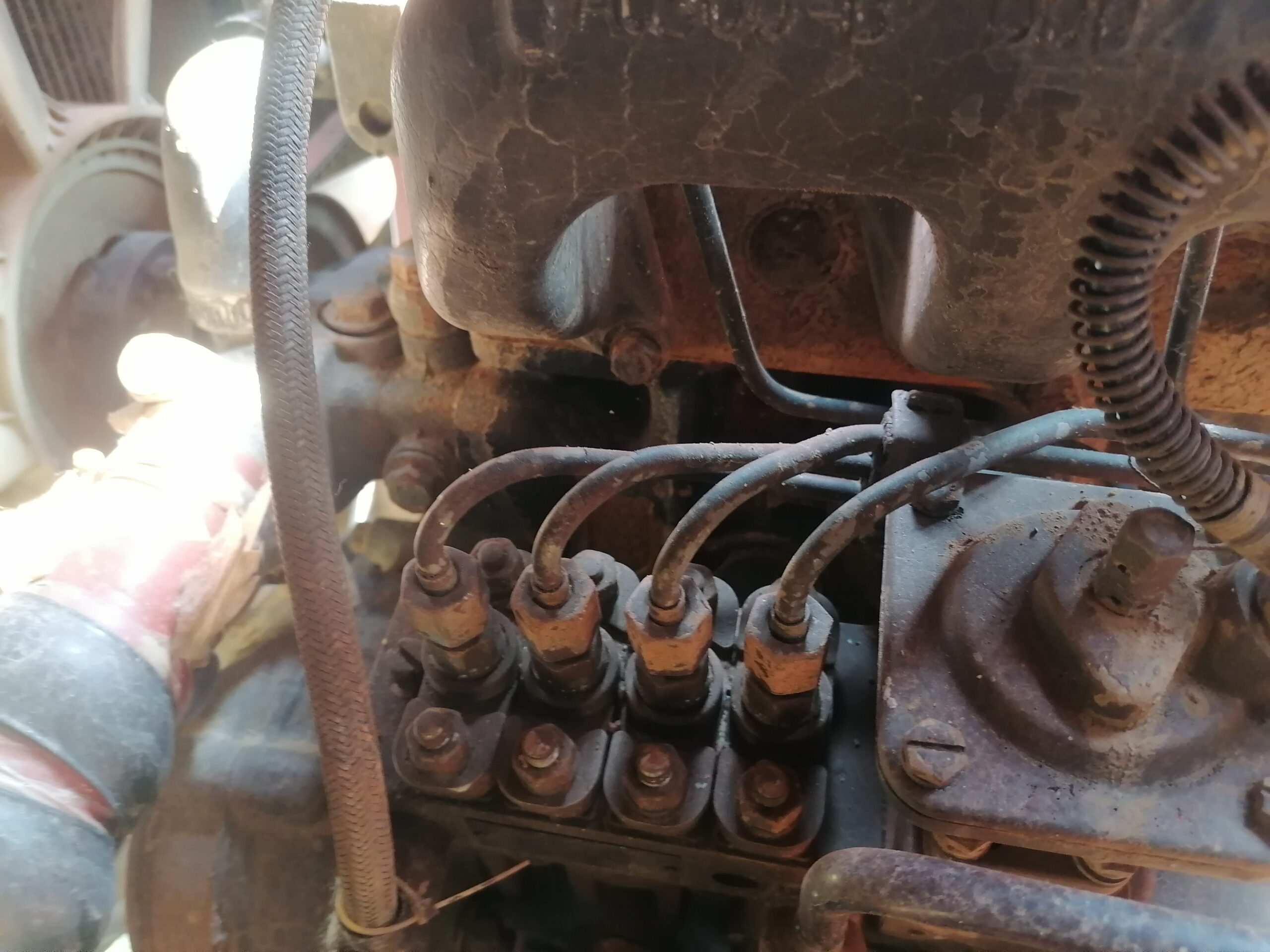

5. The engine uses Guangxi Yuchai 65Kw turbocharged engine 3.

6. The walking device adopts the American Pomke hydraulic oil pump, which has a long durability life of 3.

7. Adopting a parallel transmission design, the oil pump is separated from each other, providing sufficient and reasonable power distribution. The hydraulic system is uniquely designed, and maintenance is simple and cost-effective.

8. The drilling rig chassis adopts a professional excavator chassis, which is durable, has a large load-bearing capacity, a wide chain plate, and has little damage to hard road surfaces.

9. Adopting a designed composite boom, the boom has a small volume, long stroke, dual oil cylinder lifting, and a large lifting tonnage

Application Industry:

1.Underground metal mines

The application of mining rigs in underground metal mines is one of its main fields. Mining rigs can accelerate the mining speed of metal mines, improve mining efficiency, and reduce the labor intensity of miners in the mine.

2. Tunnel engineering and underground water conservancy and power engineering

Mining rigs are also widely used in tunnel engineering and water conservancy and power engineering. The use of mining rigs can excavate tunnels, underground reservoirs, and power stations underground, not only shortening the engineering cycle, but also reducing construction costs.

3. Other fields

Mining rigs can also be applied in fields such as construction, highways, railways, oil and gas pipelines, bridges, subways, etc. They have high drilling accuracy, fast speed, and convenient operation, bringing huge convenience to these industries.
