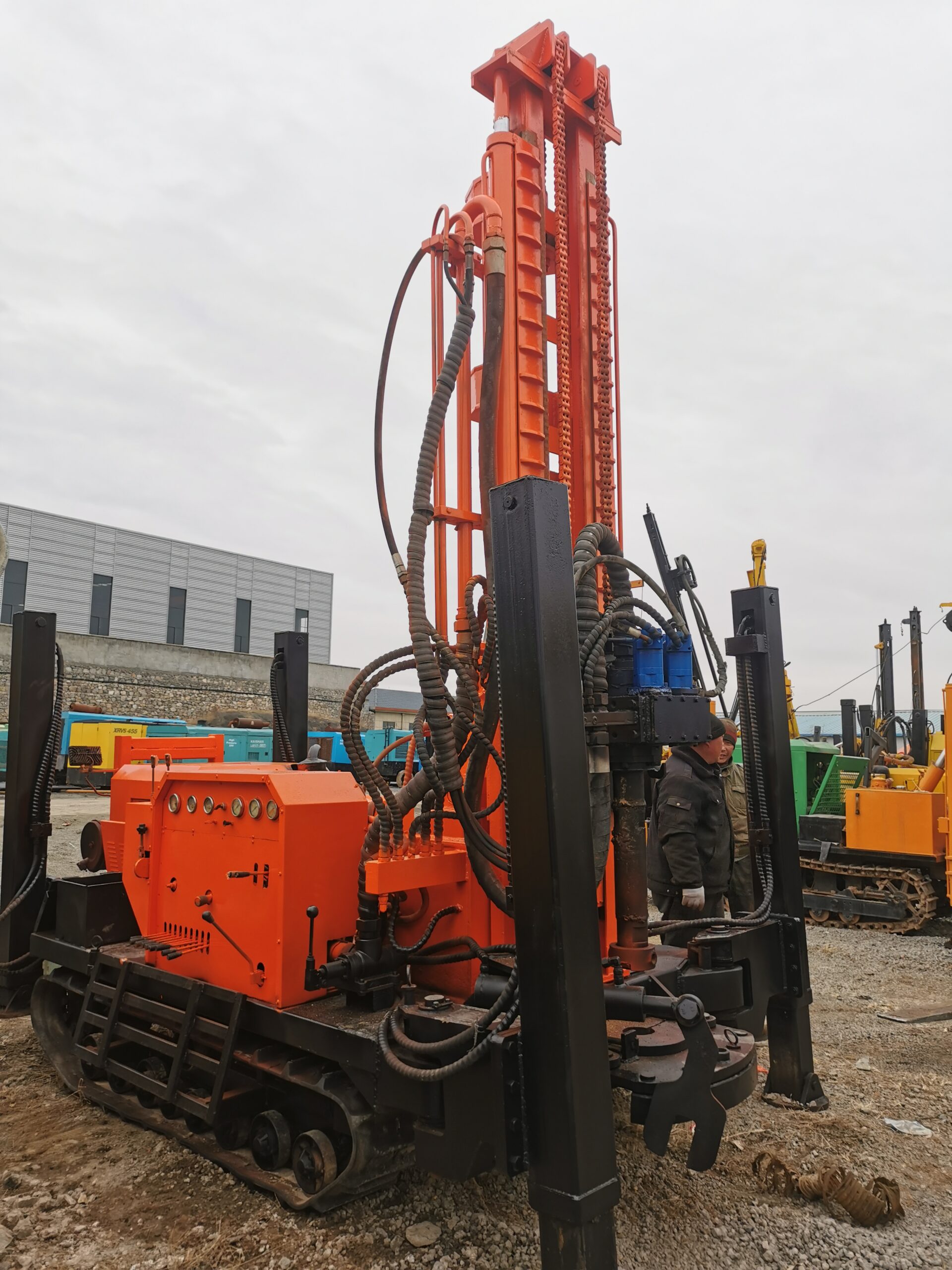

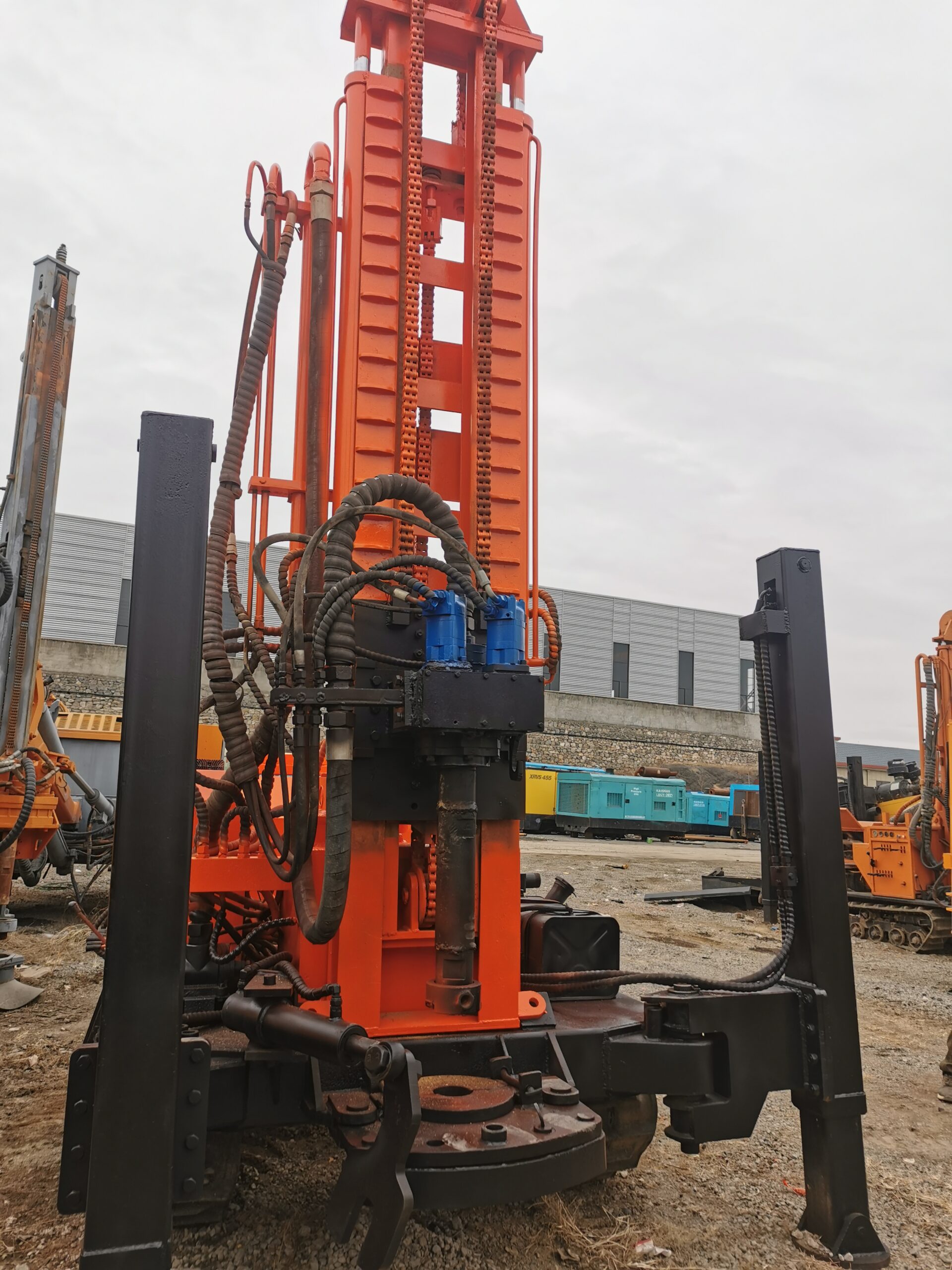

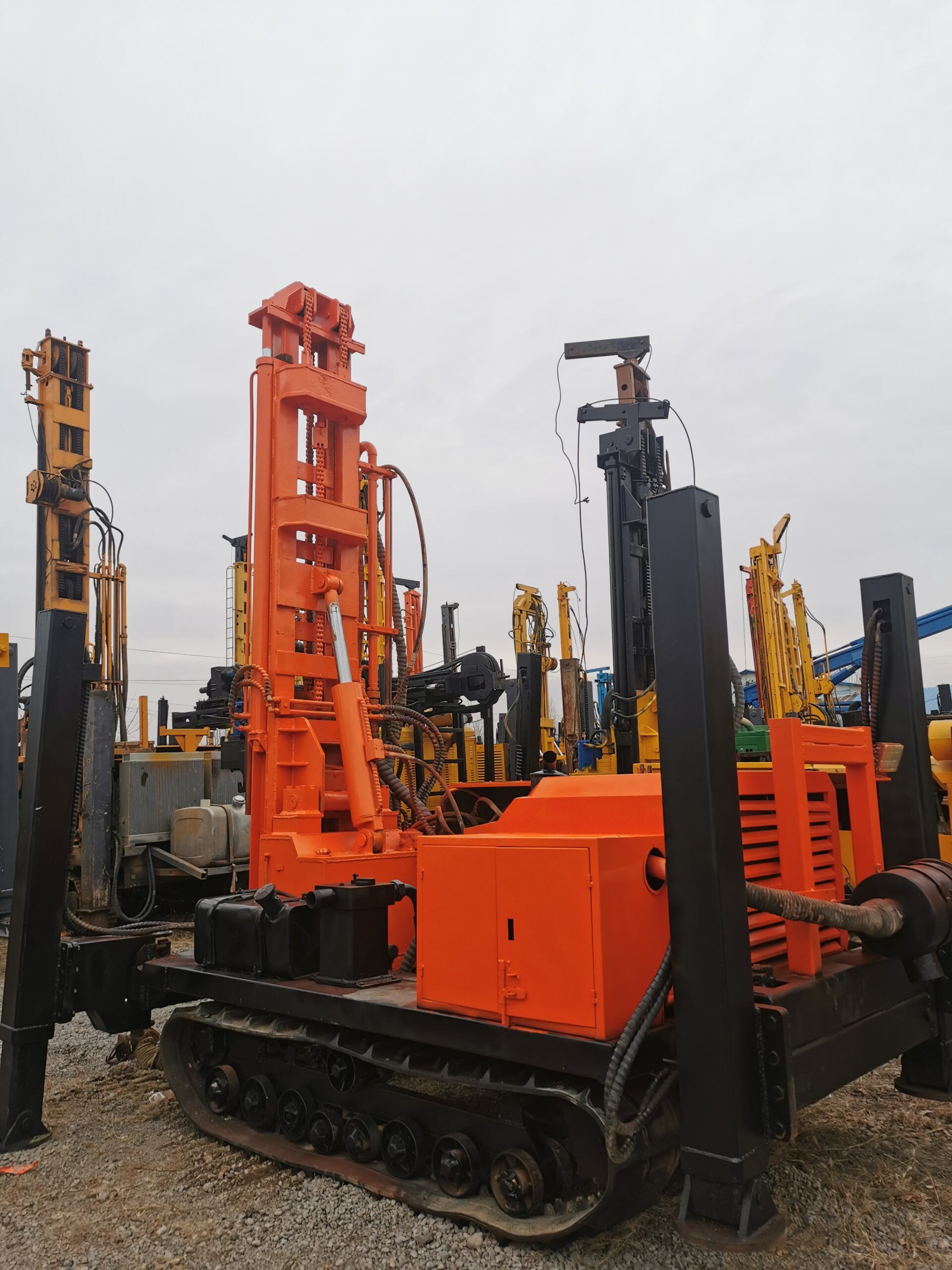

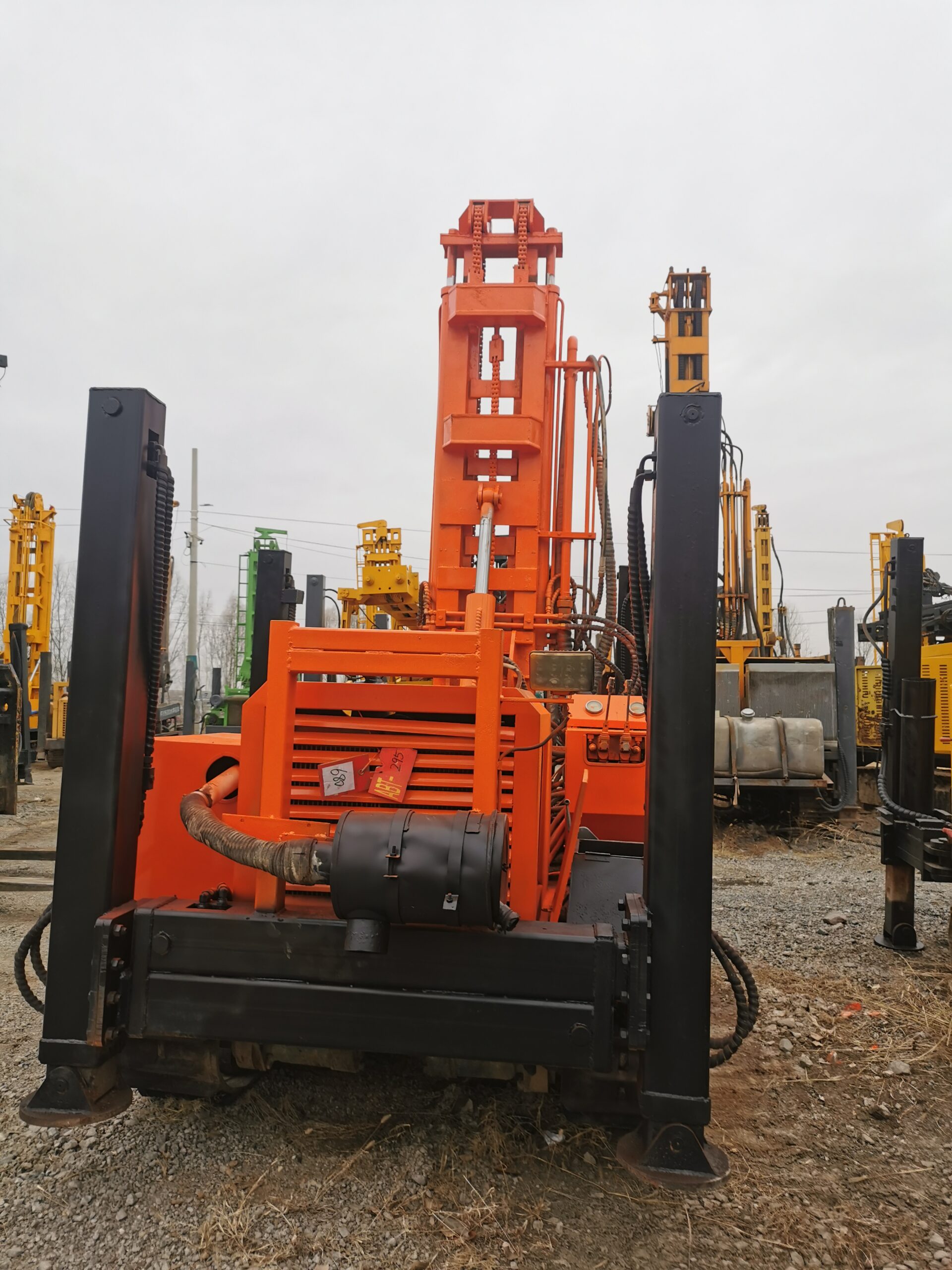

ABT295 JR180 Used Water Well Drilling Rigs

描述

Product Name:JR180 Water Well Drilling Rigs

Year:2021

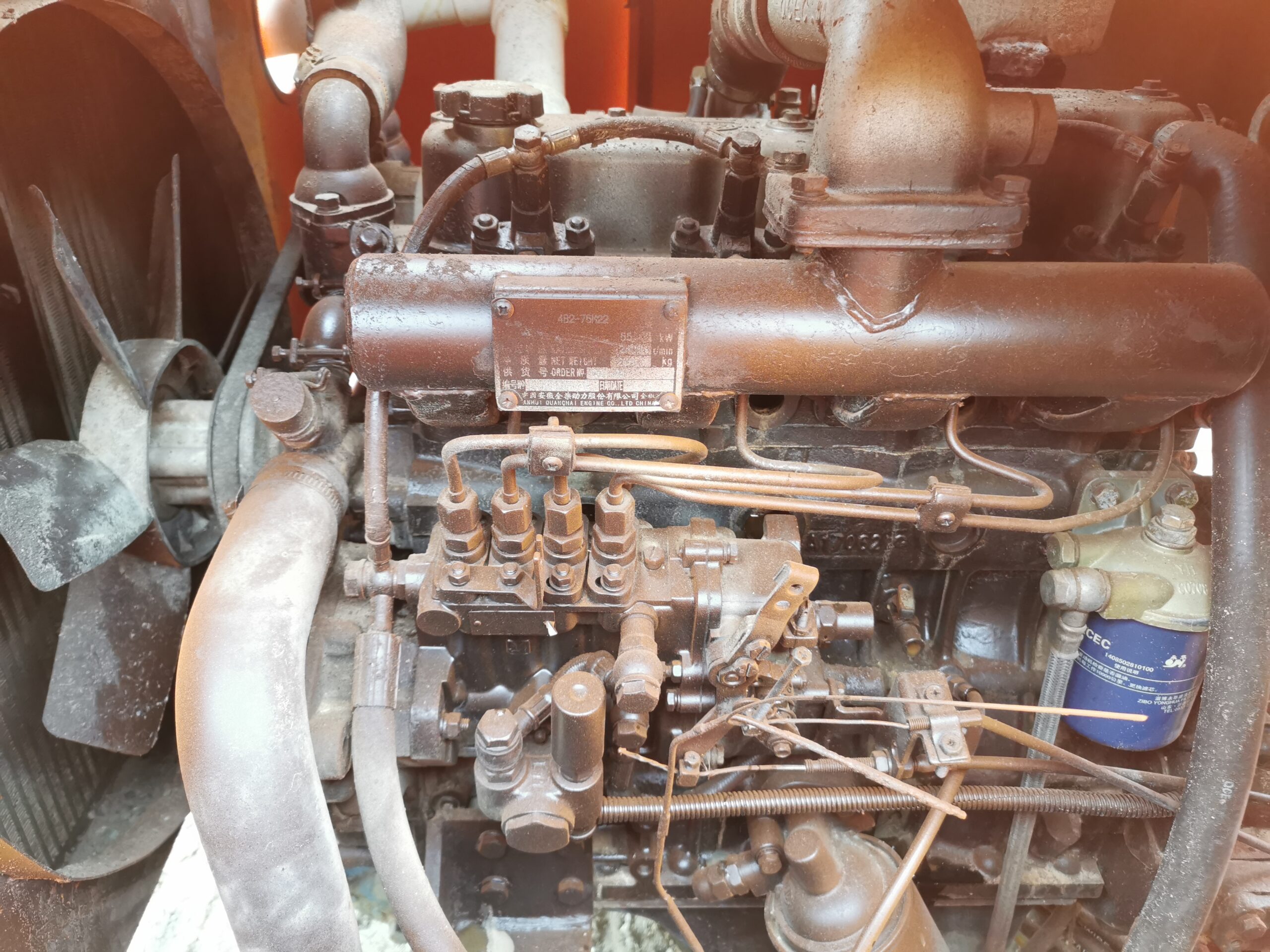

Engine:WeiChai 55KW

3m High Tower

Maximum drilling depth:800m

Drilling diameter:105-550 mm

Recommended working wind pressure: 1.6-8MPa

Recommended gas consumption: 16-96m ³/ Min

Recommended drill pipe length:6 m

Recommended drill pipe diameter:140mm

Counter axis pressure:8T

Maximum lifting force:43T

Fast lifting speed:90m/min

Fast forward speed:38 m/min

Maximum turning torque:15000/7500N.m

Maximum rotation speed:71/142 r/min

Small winch lifting force:1.5 T

High leg stroke:1.7m

Feed efficiency:10-35m/h

Walking speed:5 Km/h

Climbing ability:21 °

Feature:

1. Compact structure, easy to handle and operate.

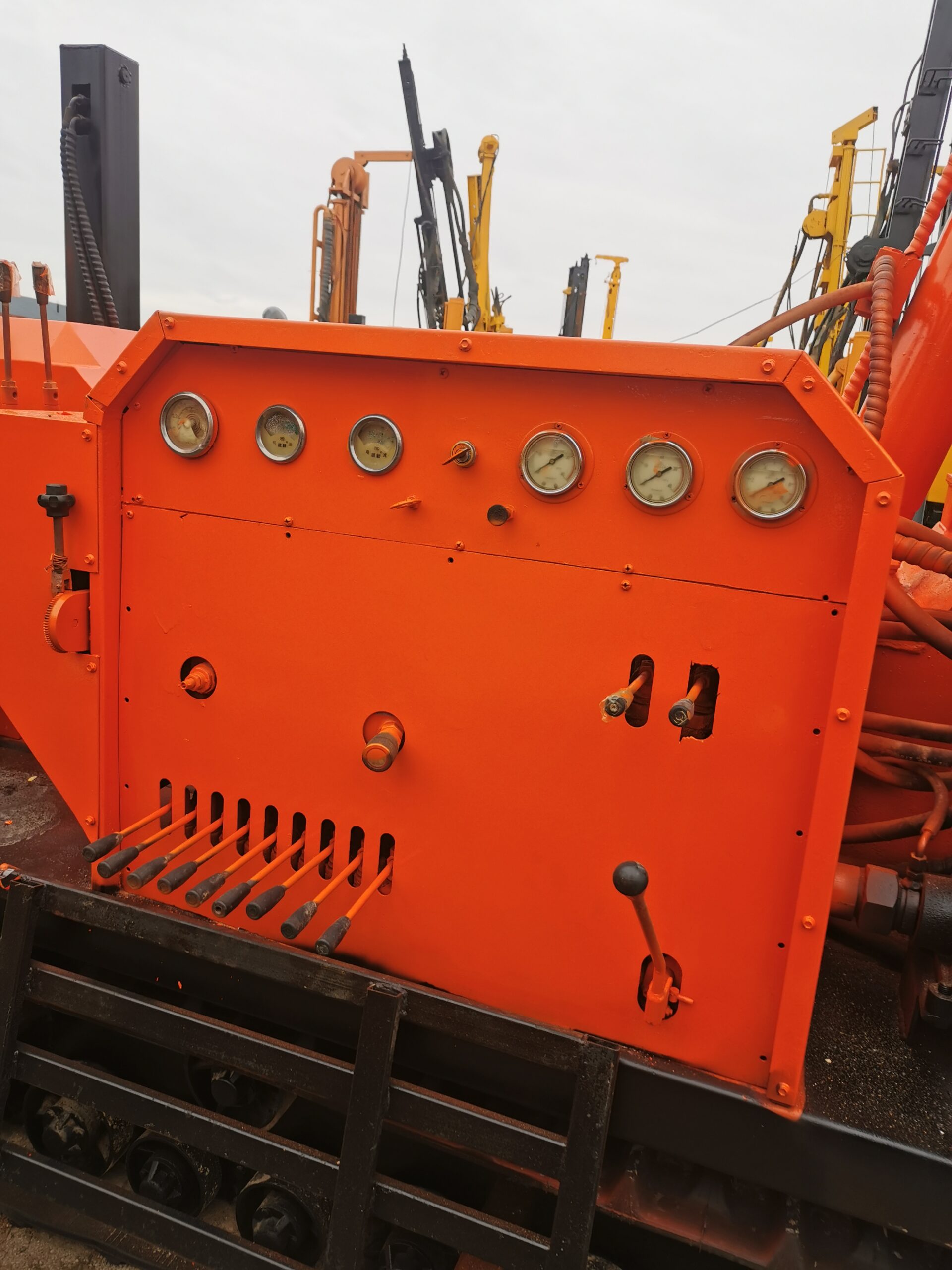

2. Easy to operate, equipped with a user-friendly operation control system.

3. High drilling efficiency, using efficient hydraulic and power systems to quickly complete drilling operations.

4. Standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, and low failure rate.

5. The engine uses Guangxi Yuchai 65Kw turbocharged engine 3.

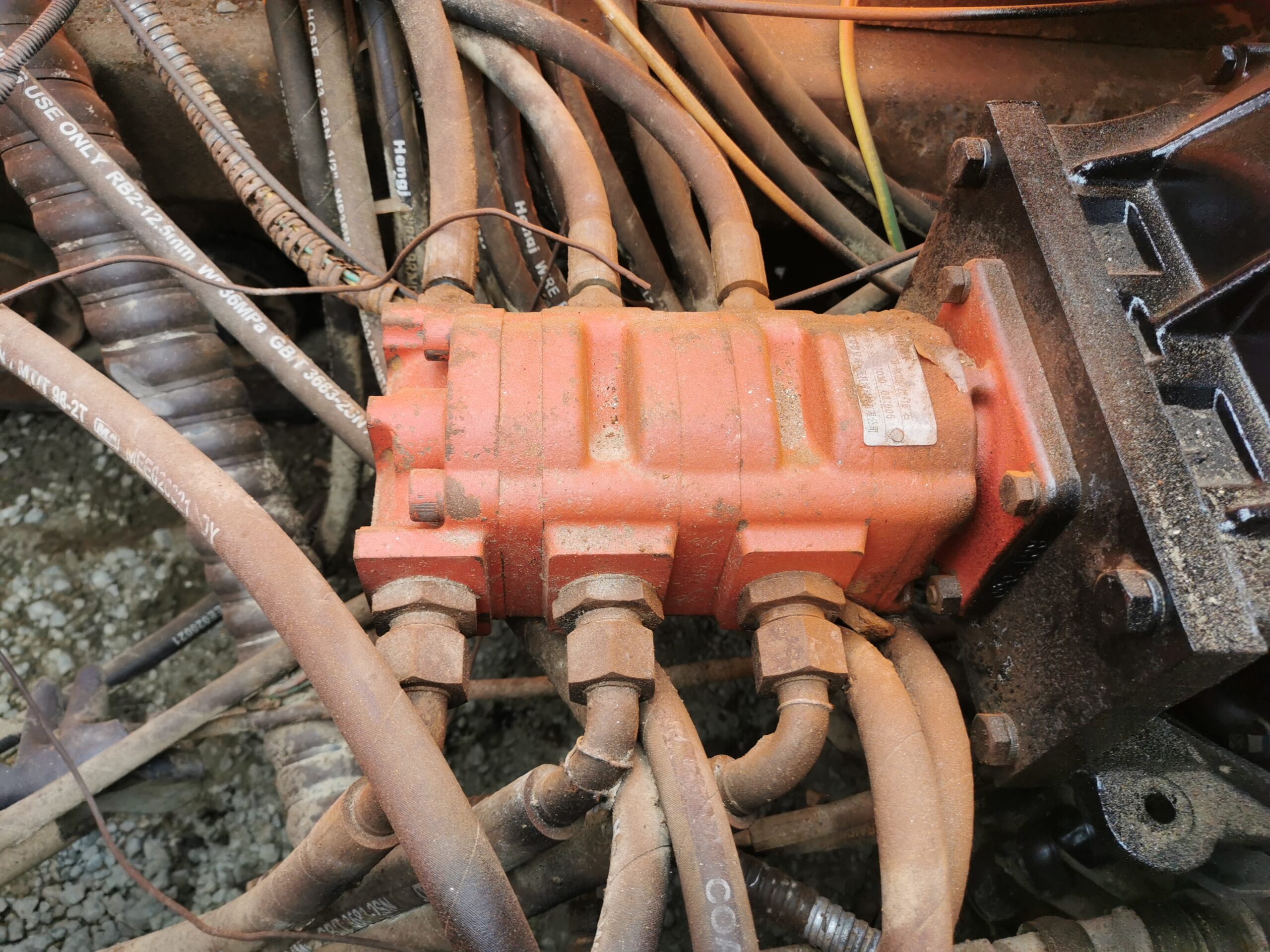

6. The walking device adopts the American Pomke hydraulic oil pump, which has a long durability life of 3.

7. Adopting a parallel transmission design, the oil pump is separated from each other, providing sufficient and reasonable power distribution. The hydraulic system is uniquely designed, and maintenance is simple and cost-effective.

8. The drilling rig chassis adopts a professional excavator chassis, which is durable, has a large load-bearing capacity, a wide chain plate, and has little damage to hard road surfaces.

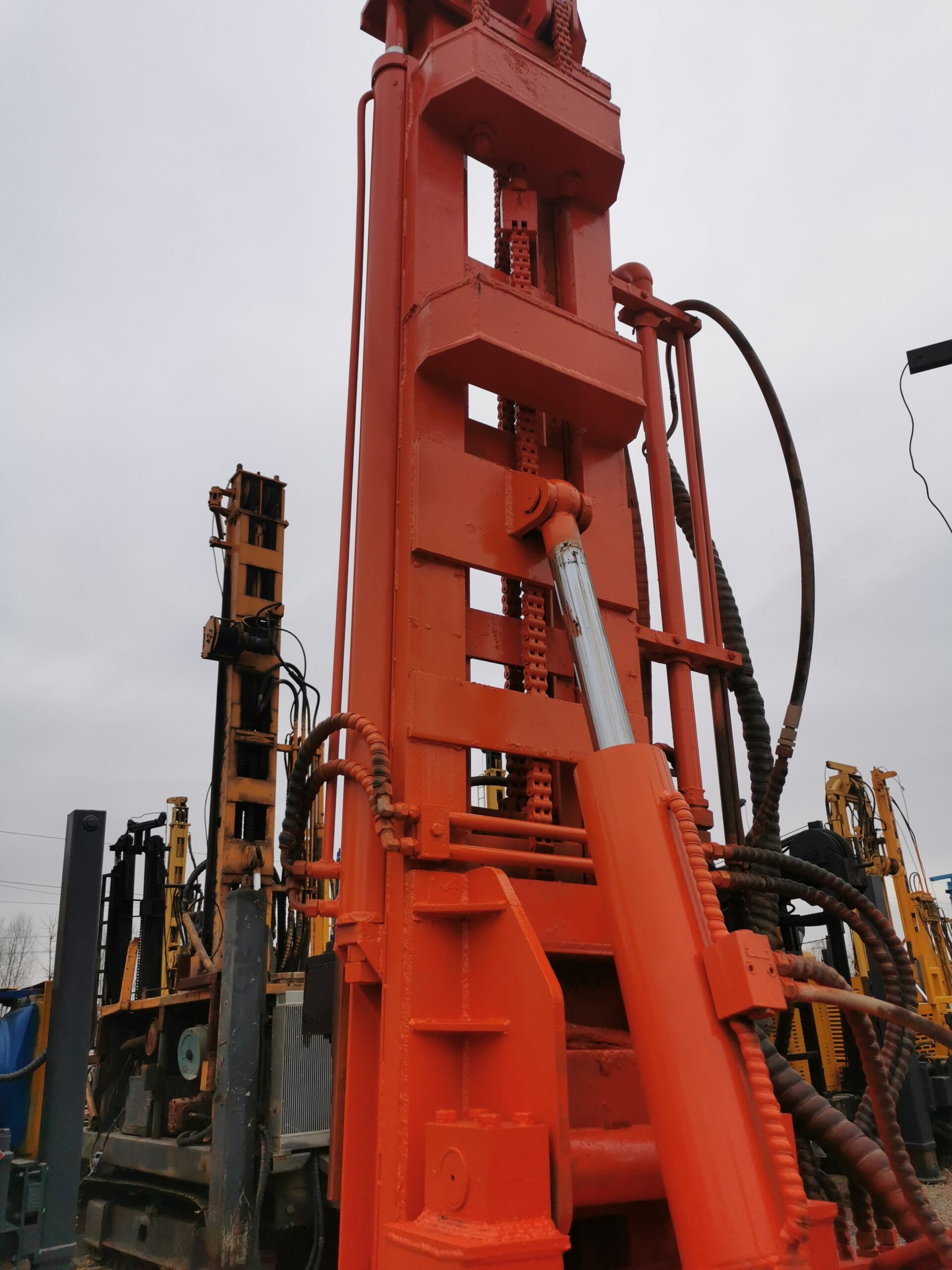

9. Adopting a designed composite boom, the boom has a small volume, long stroke, dual oil cylinder lifting, and a large lifting tonnage

Appliaction Industry:

1. High work efficiency, low construction cost, reliable work, and easy operation.

2. Early domestic manufacturers of tracked water well drilling rigs have developed and manufactured them, accounting for a high proportion of the domestic water well drilling rig market.

3. The product models cover a full range of models from 200 to 2400, with stable performance and good market reputation in the industry.

4. The hydraulic system design is excellent, and the hydraulic pipeline layout is reasonable, which can be 1-2 hours/100 meters ahead of other brands of drilling rigs.

5. The excellent hydraulic system and heat dissipation system ensure the consistent work efficiency of the drilling rig throughout the four seasons.

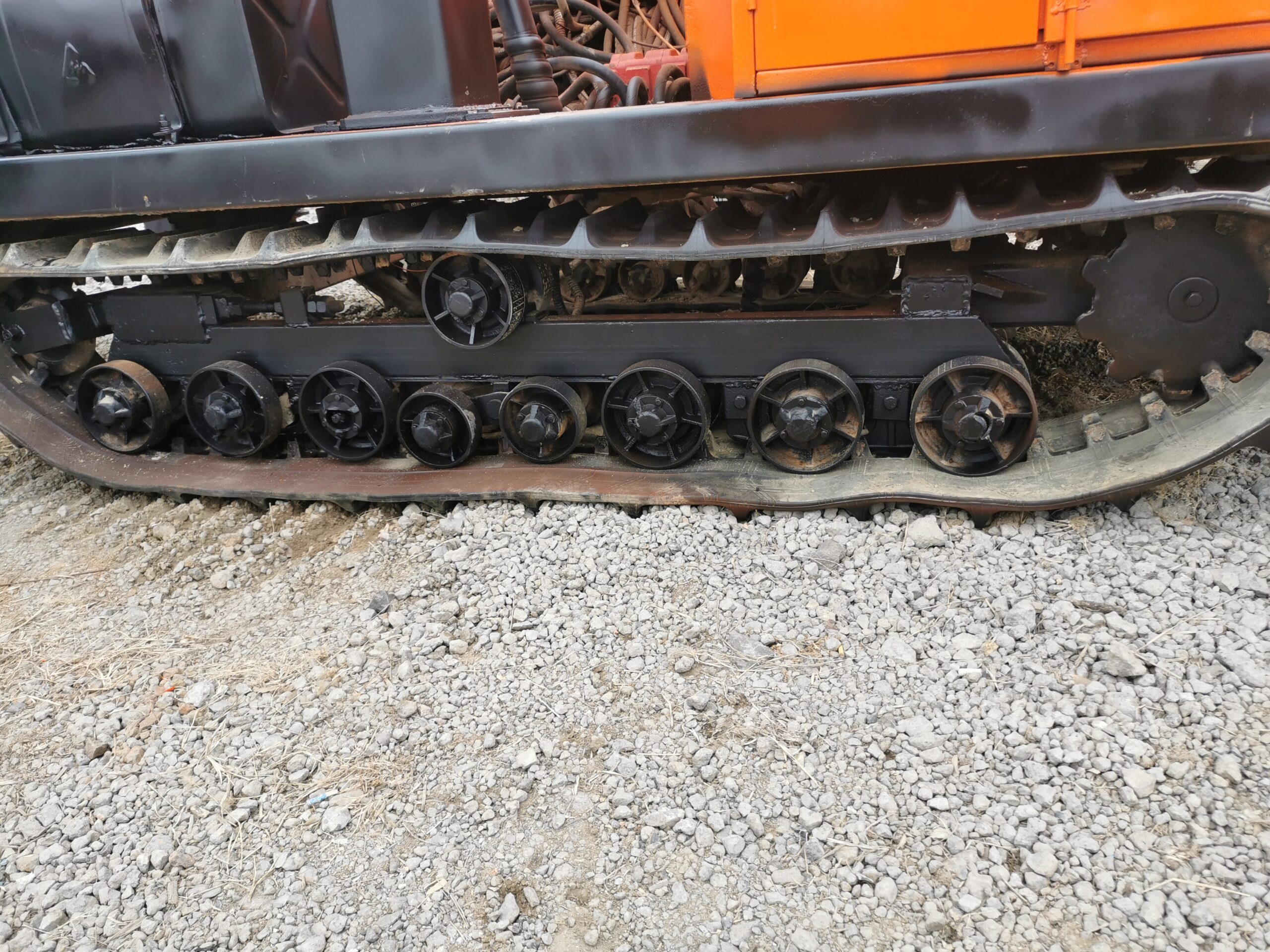

6. The track shoes of the tracks used on the chassis are all forged, with stronger overall climbing and gripping abilities, and are not easily deformed.

7. We have a professional design and R&D team, always maintaining cutting-edge technical reserves, ensuring timely product updates and upgrades.

8. The new generation of telescopic cleaning frame series products use imported steel for the sliding frame, ensuring that the drilling rig will experience shaking and gaps in the sliding frame after working for a long time.
