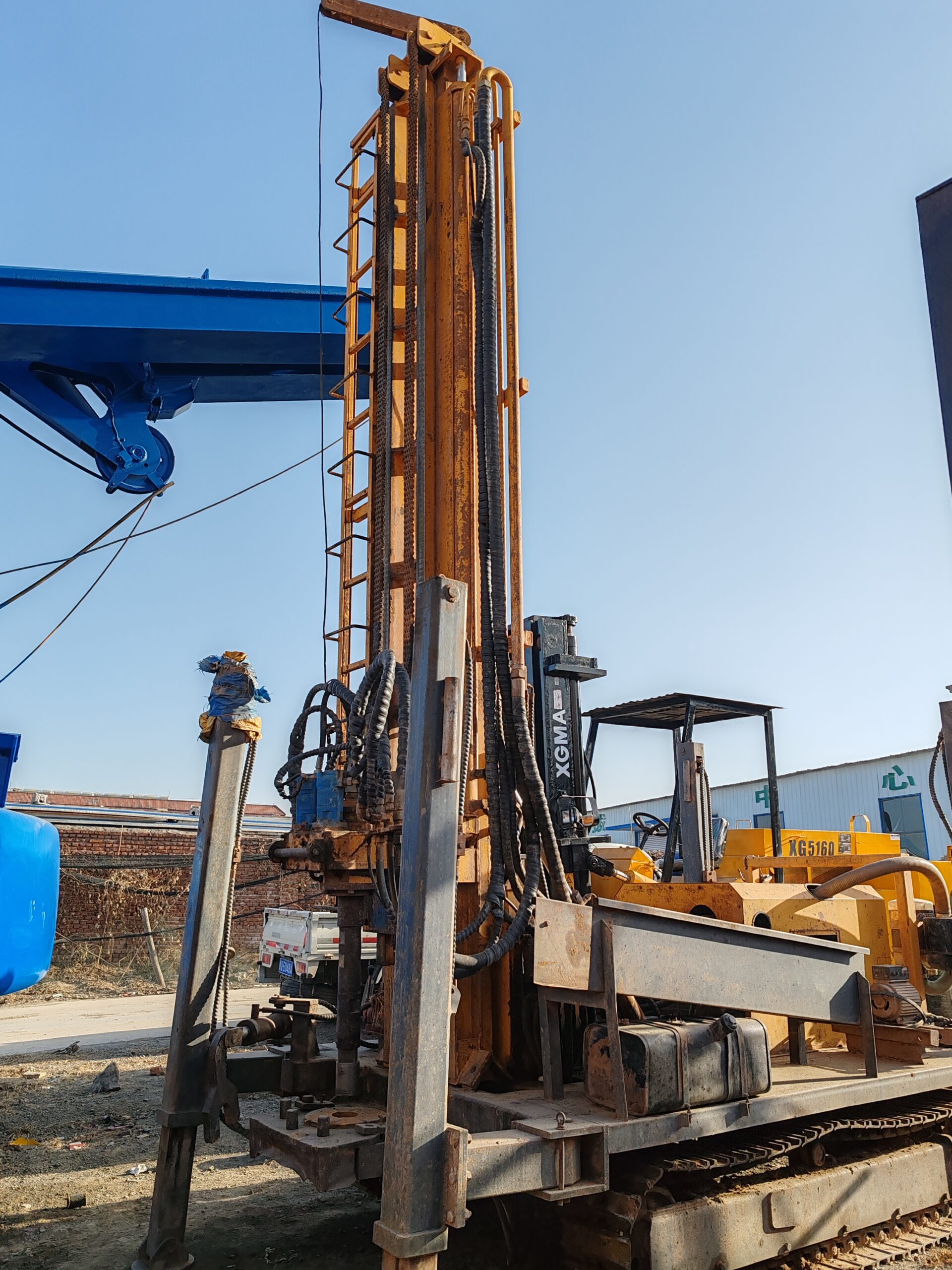

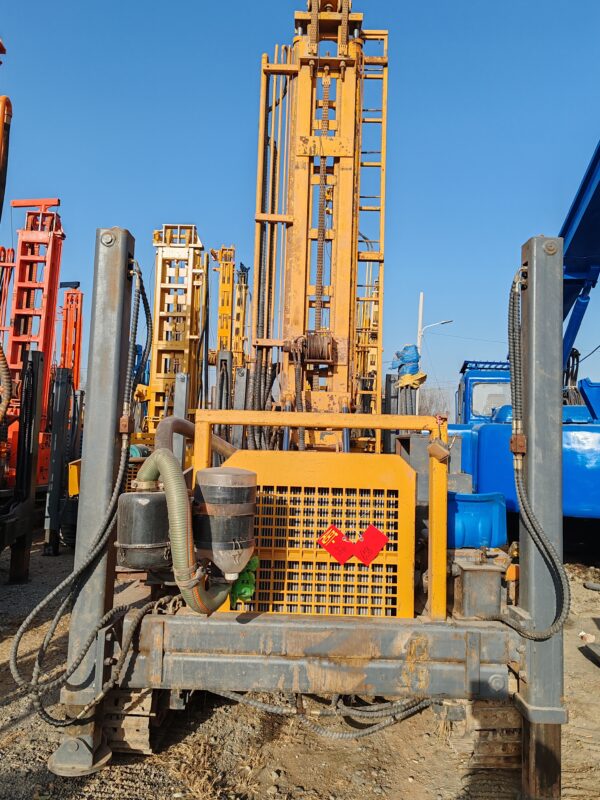

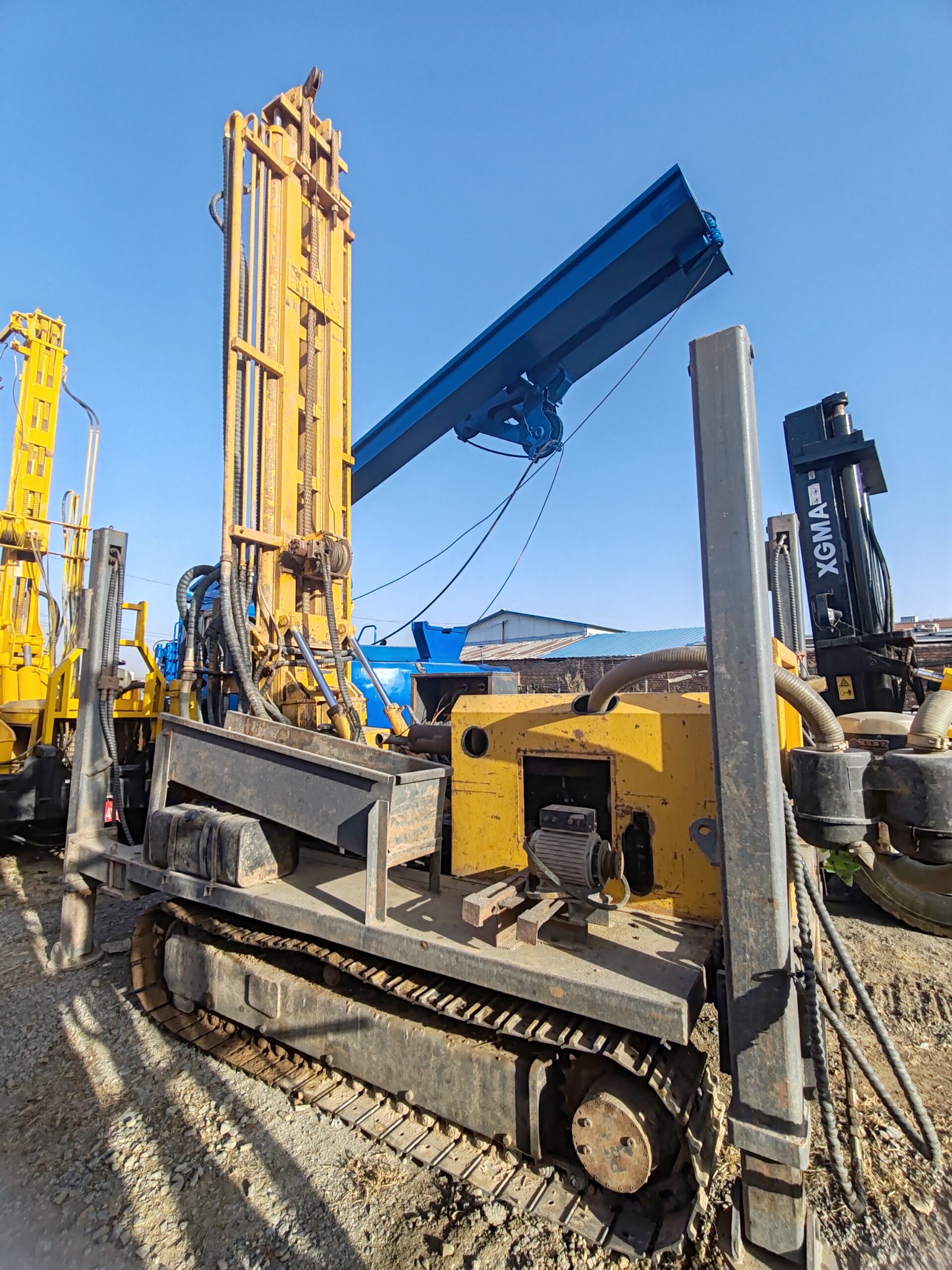

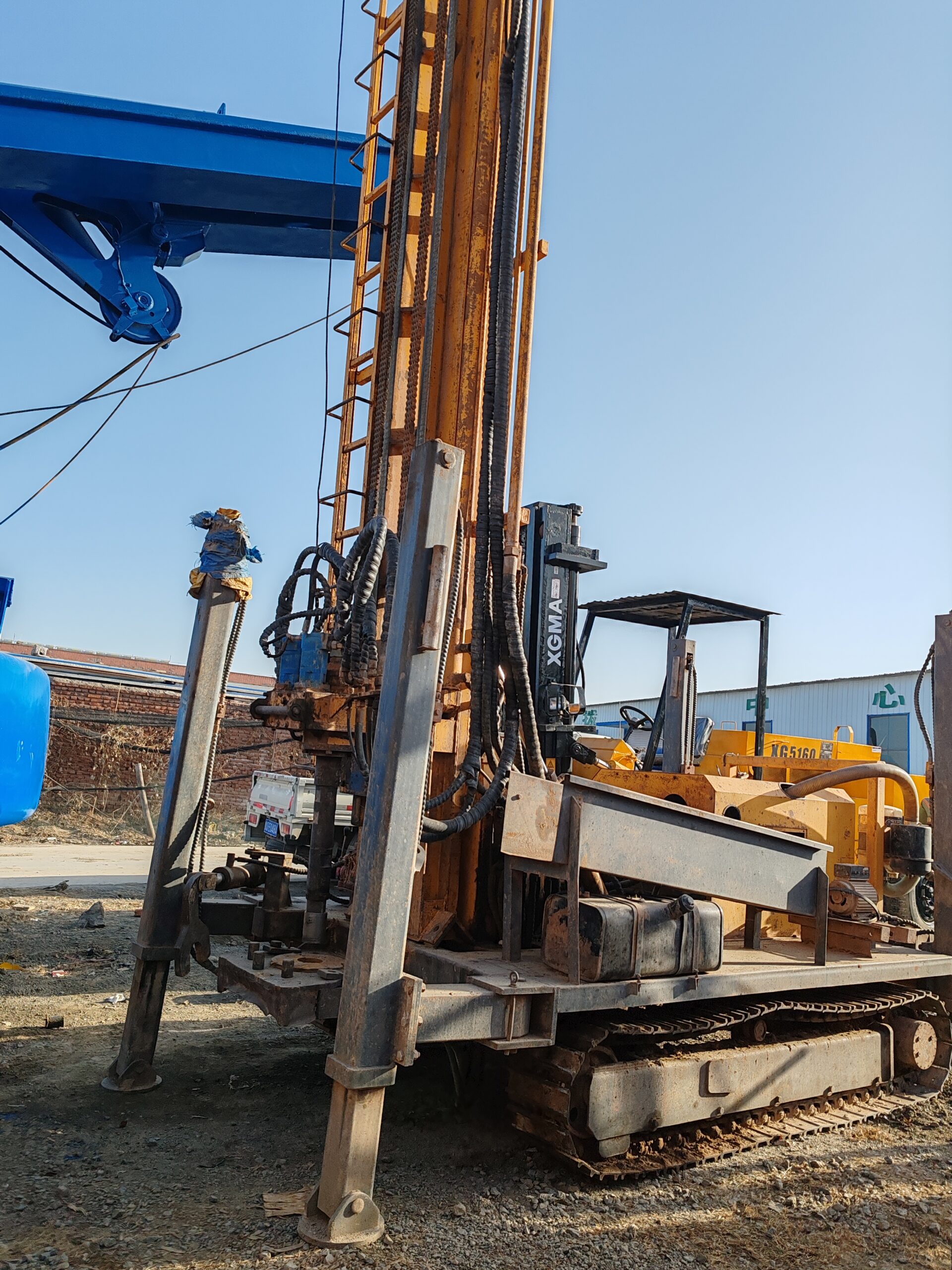

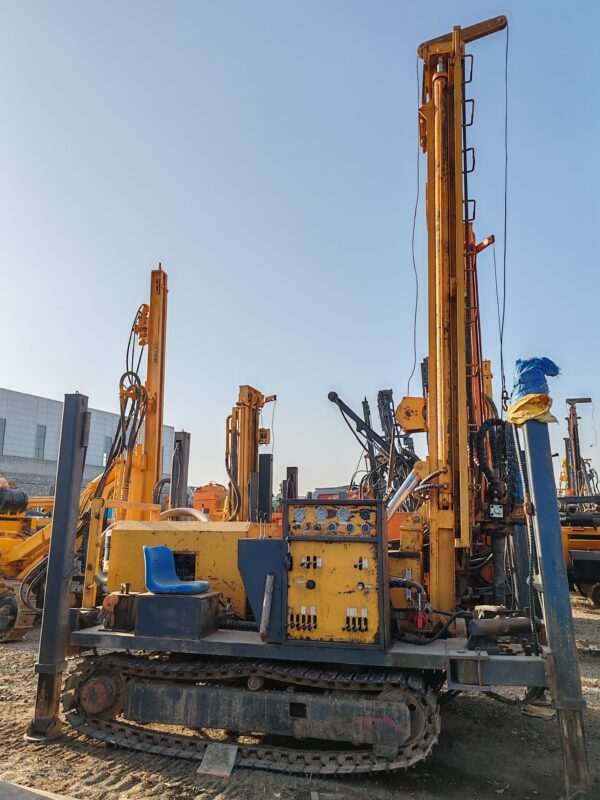

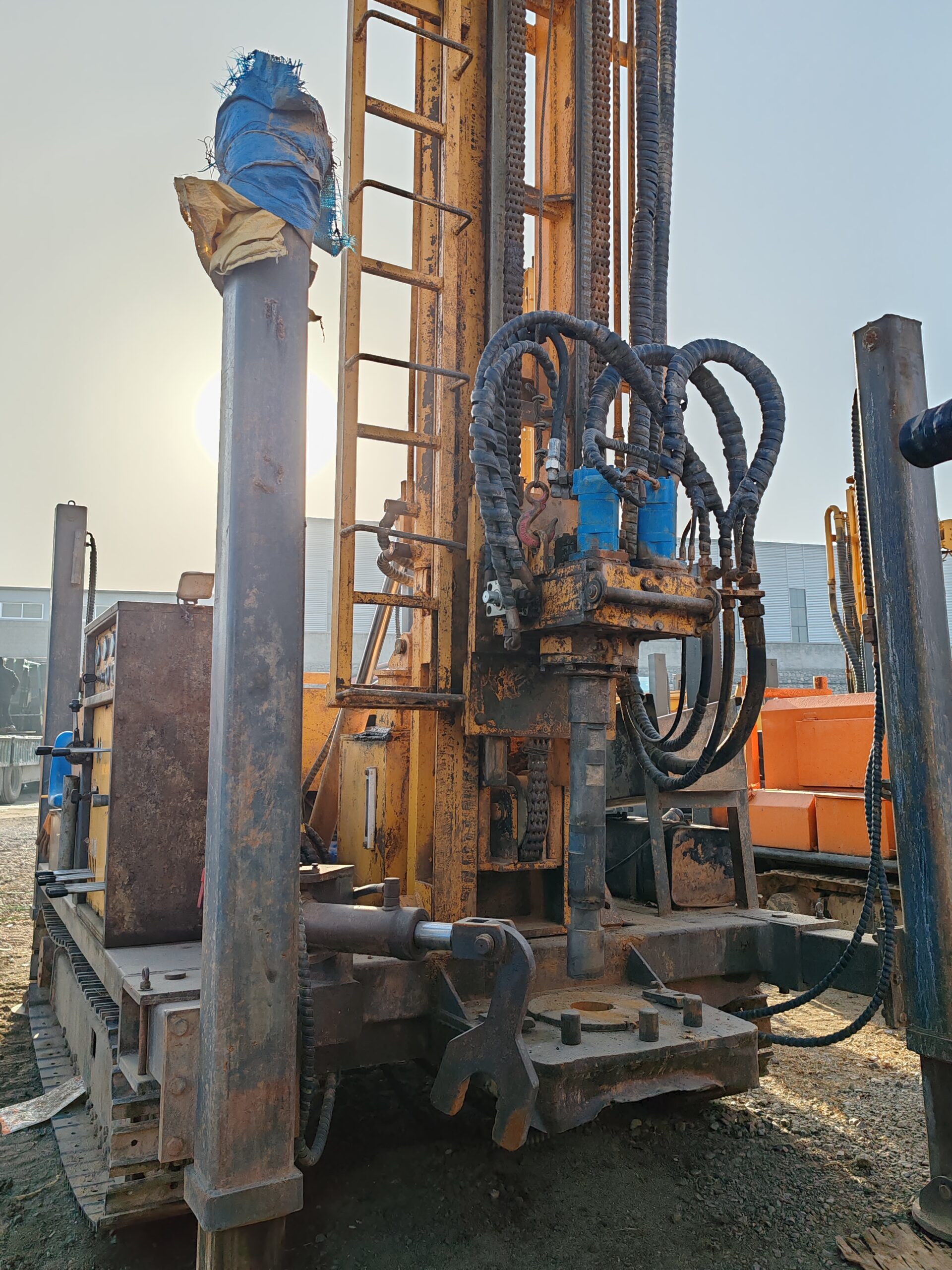

ABT291 FeiDaFYX300 Used Water Well Drilling Machine

描述

Product Name:300m water well drilling machine on sale

Year:2021

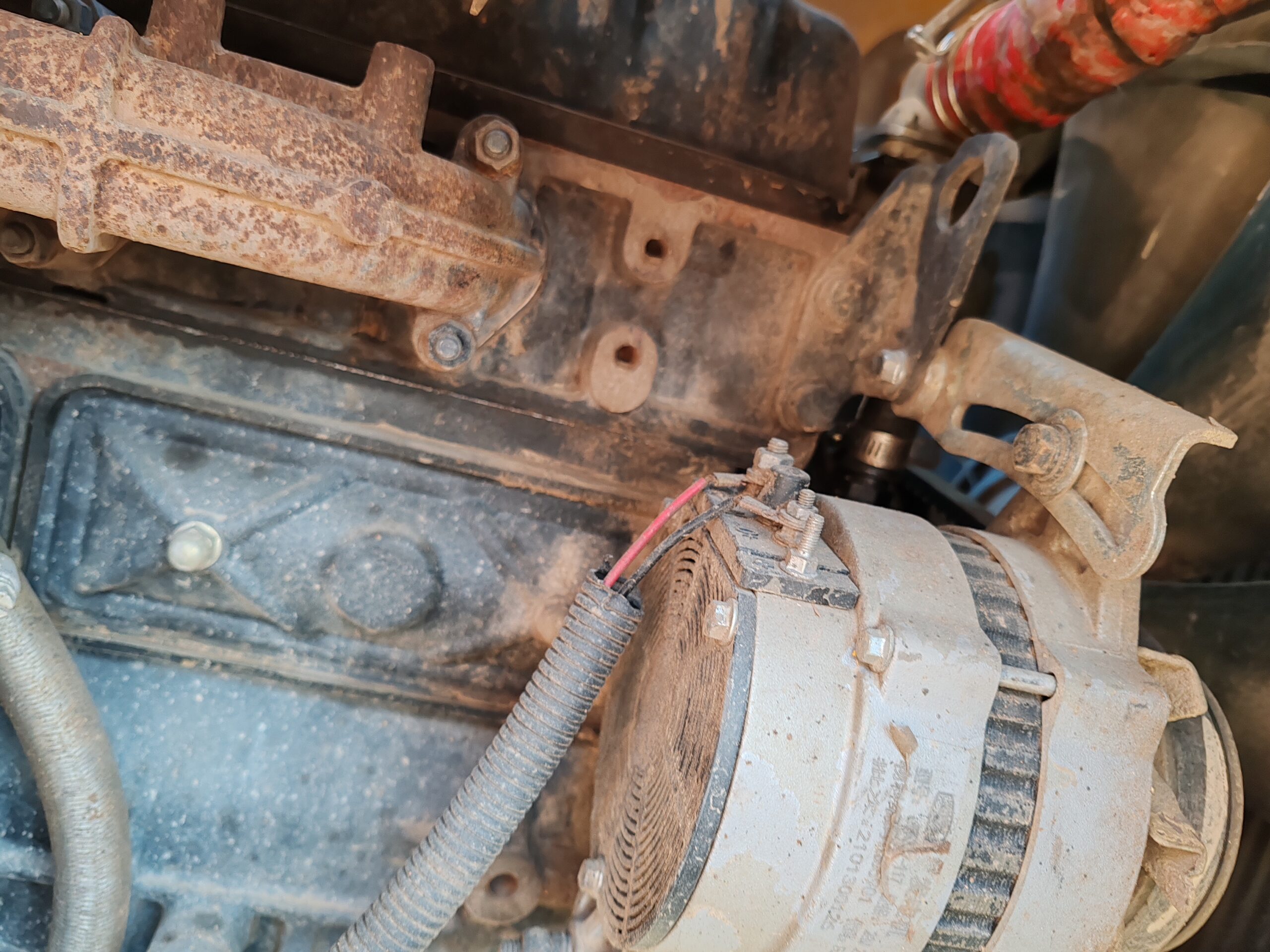

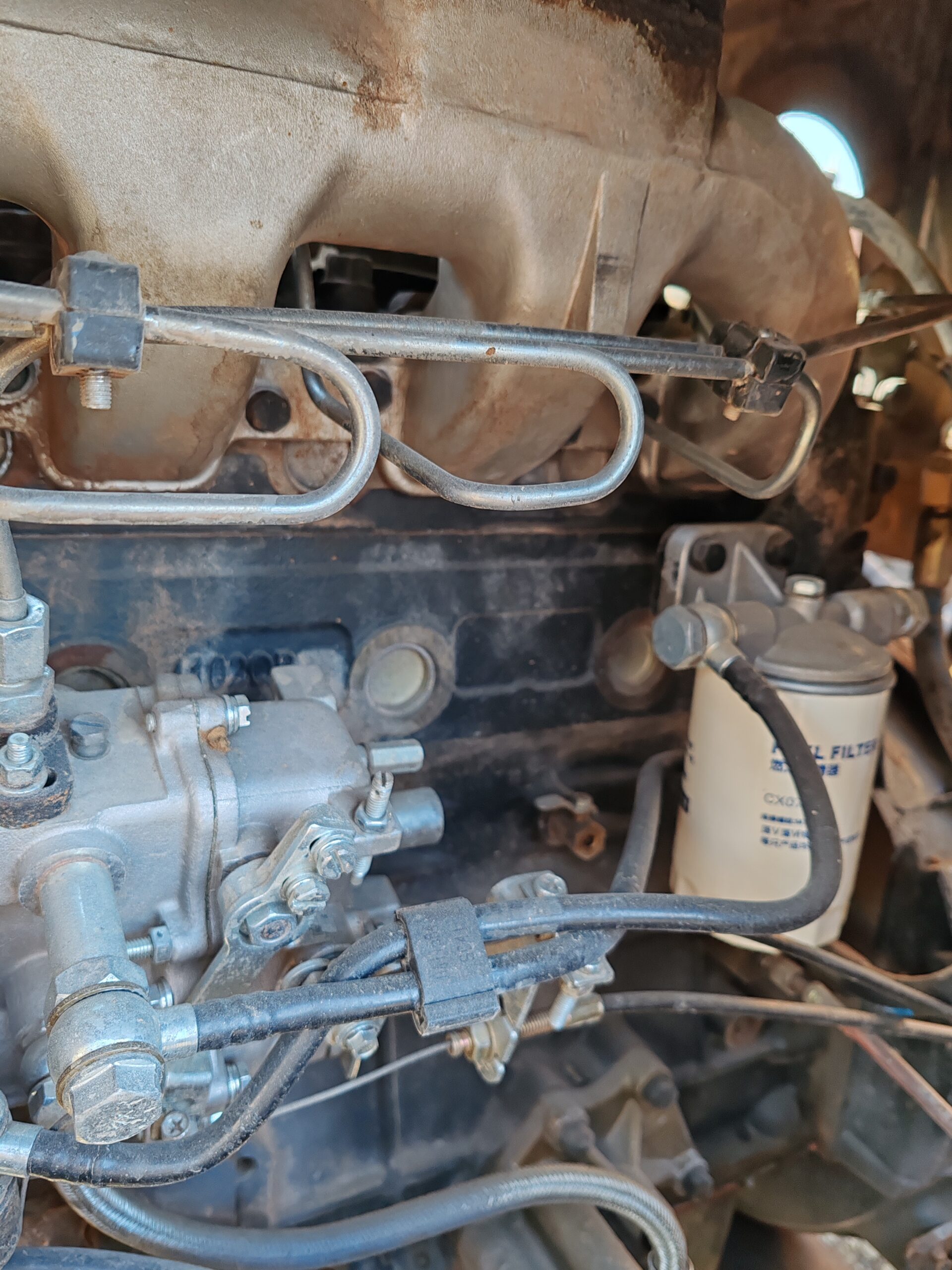

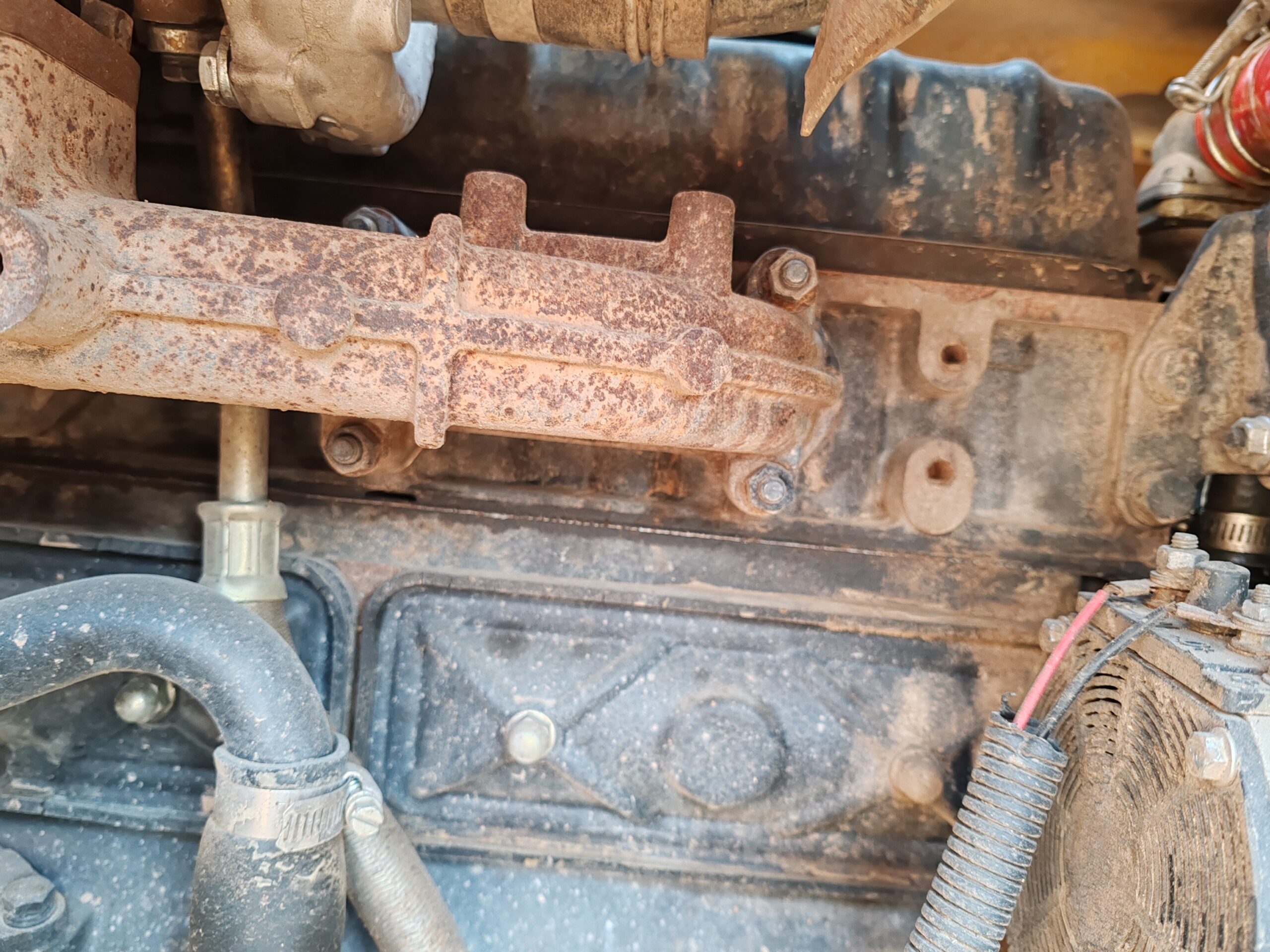

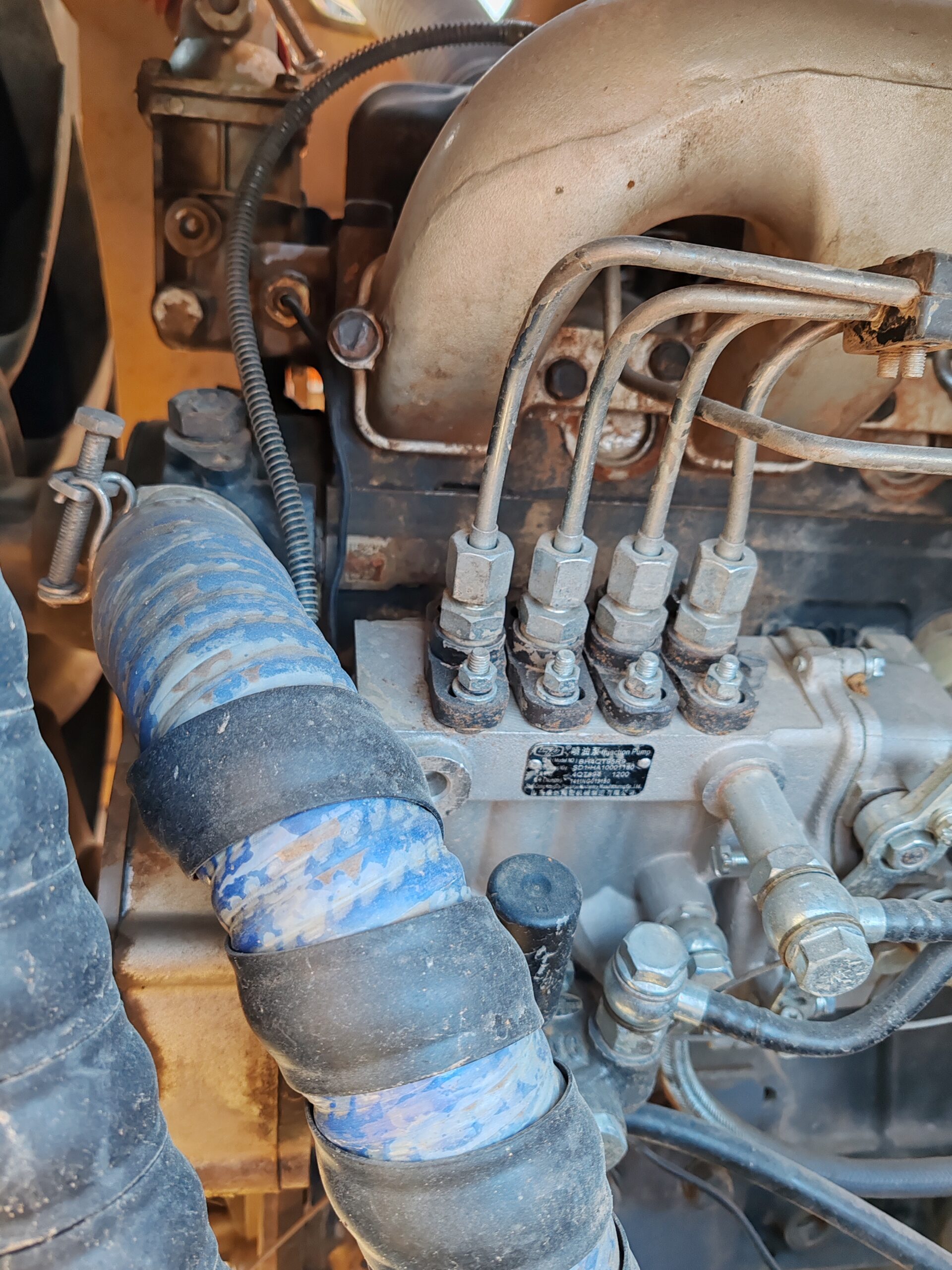

YuChai Engine 92KW

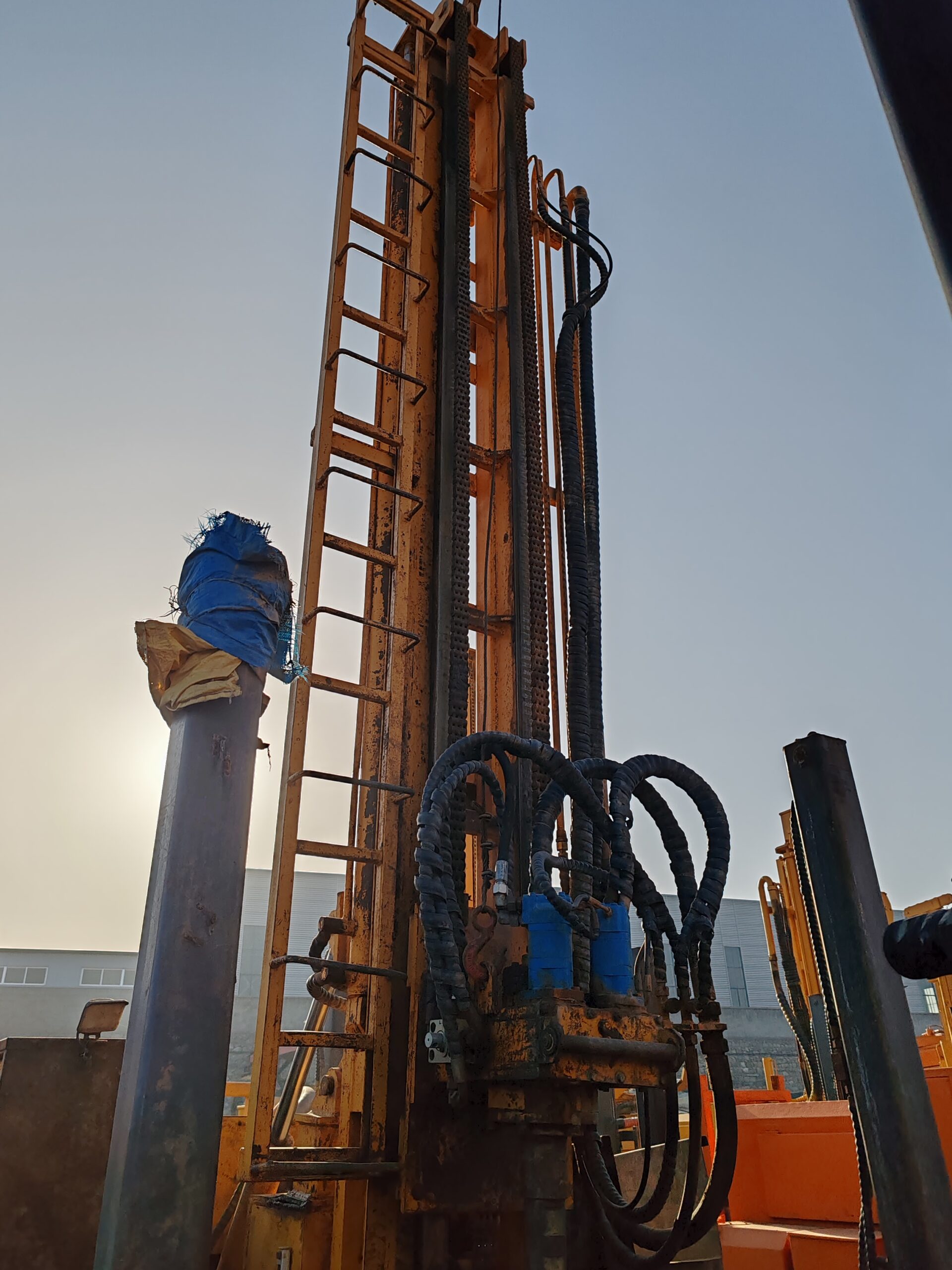

6.6m High Tower

Steel Track

Diameter Hole Diameter:110—325mm

Drilling Depth:300m

Propulsive Length:4m

Walking Speed:2.5km/h

Climbing Ability Of Single Machine:30max

Engine Power:85kw

Drill Pipe Diameter:φ76-89mm

Drill Pipe Length:1.5 2.0 3.0m

Lifting Force:15T

Rotational Speed:45—120rpm

Turning Torque:5500—7500N.m

Feature:

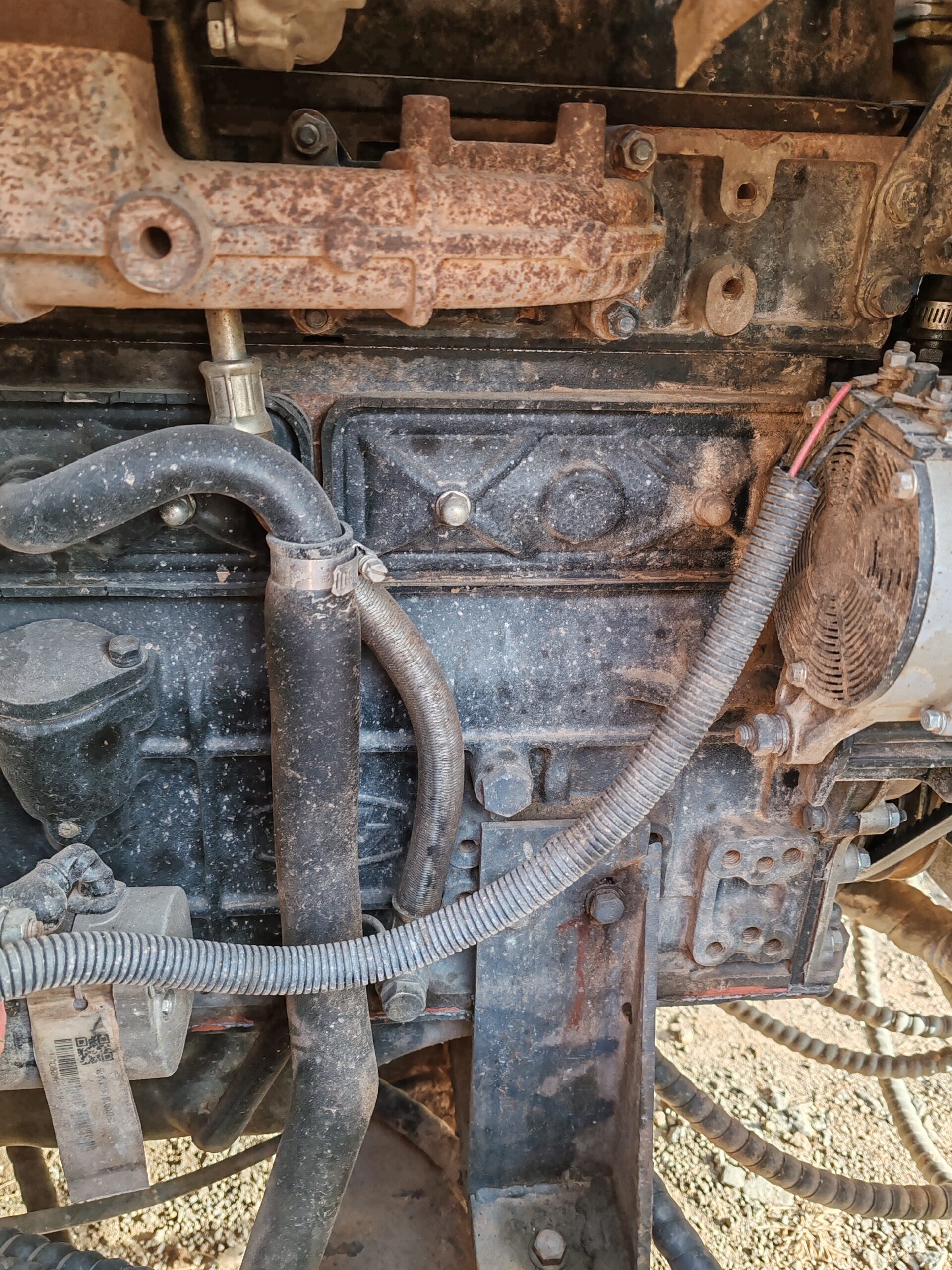

Equipped with 92KW Yuchai turbocharged engine, powerful power;

Patent design compound boom, dual cylinder lifting;

Each rig is equipped with baffles on the main arm to protect the oil cylinder;

Drill chassis: professional excavator chassis, durable, heavy load, chain plate wide, the rig uses rubber tracks, high flexibility, less damage to the hard road.

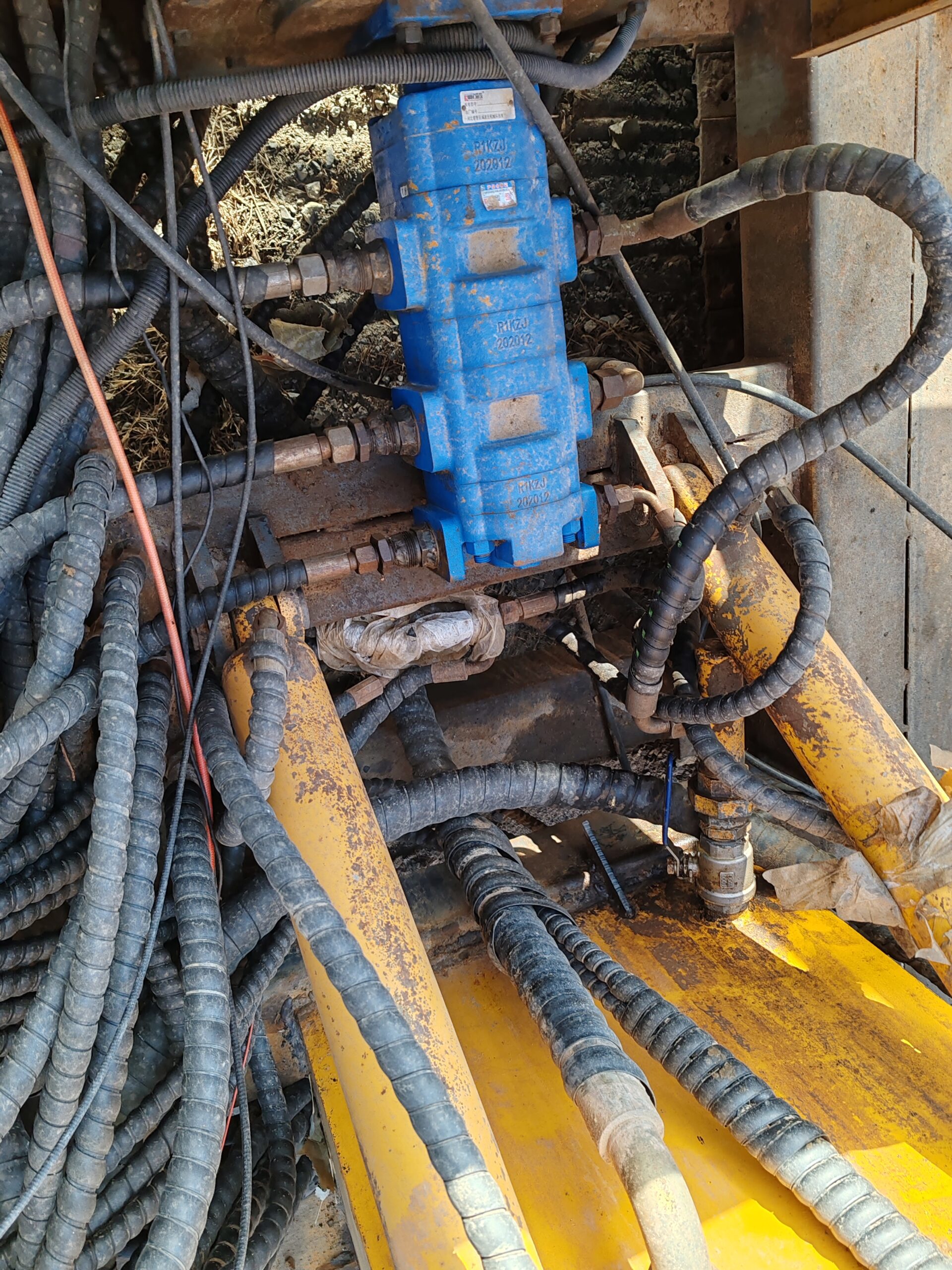

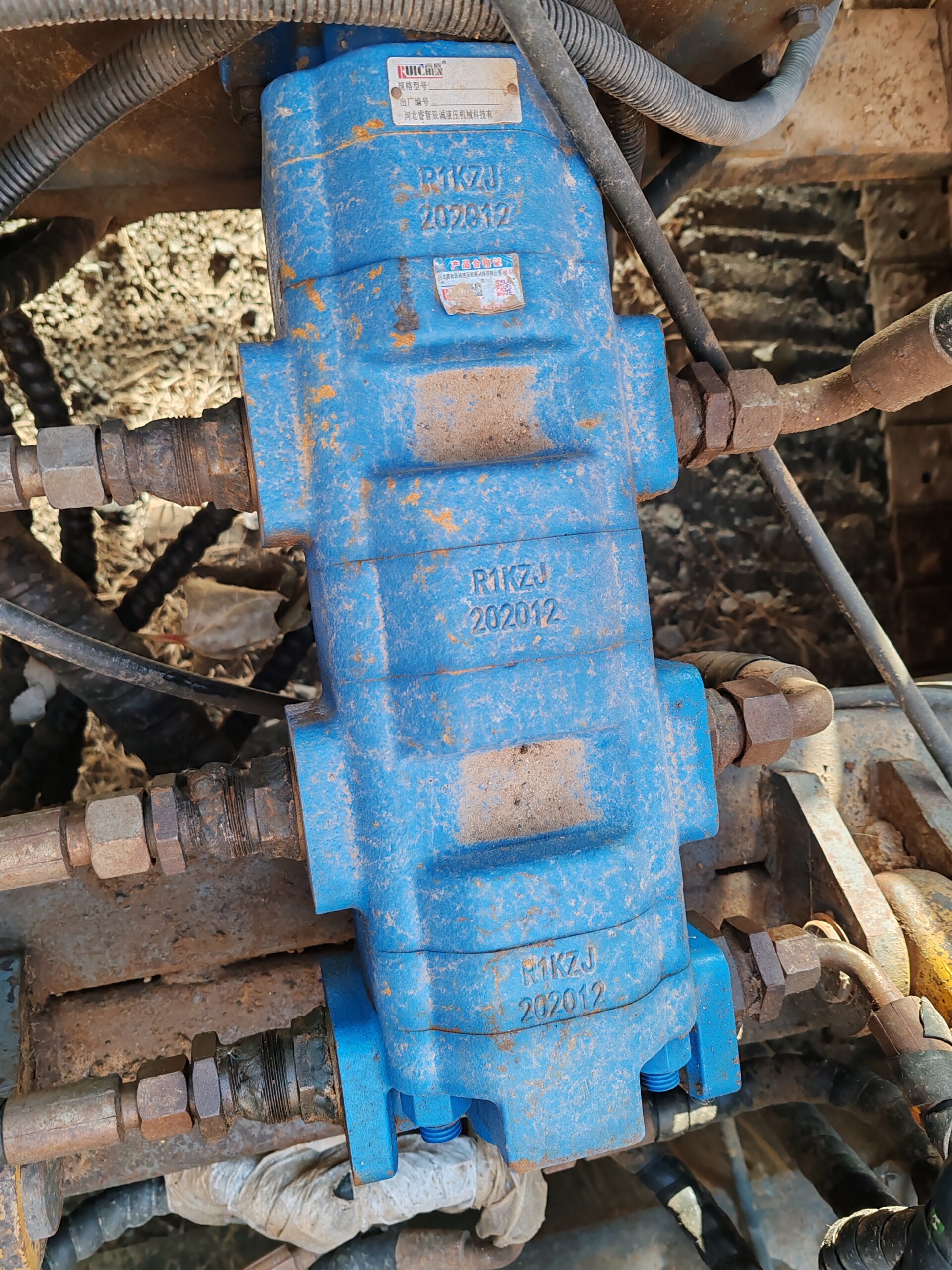

Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance, low cost.

Application Industry:

water wells, rescue, dewatering wells, large-diameter blasting holes in mines (instead of rotary drills), exploration sampling wells, hydropower wells, highway wells, coal wells, petroleum wells, natural gas wells, coalbed methane wells, municipal wells, monitoring wells, ground source heat pump holes, anchoring, and non excavation.
