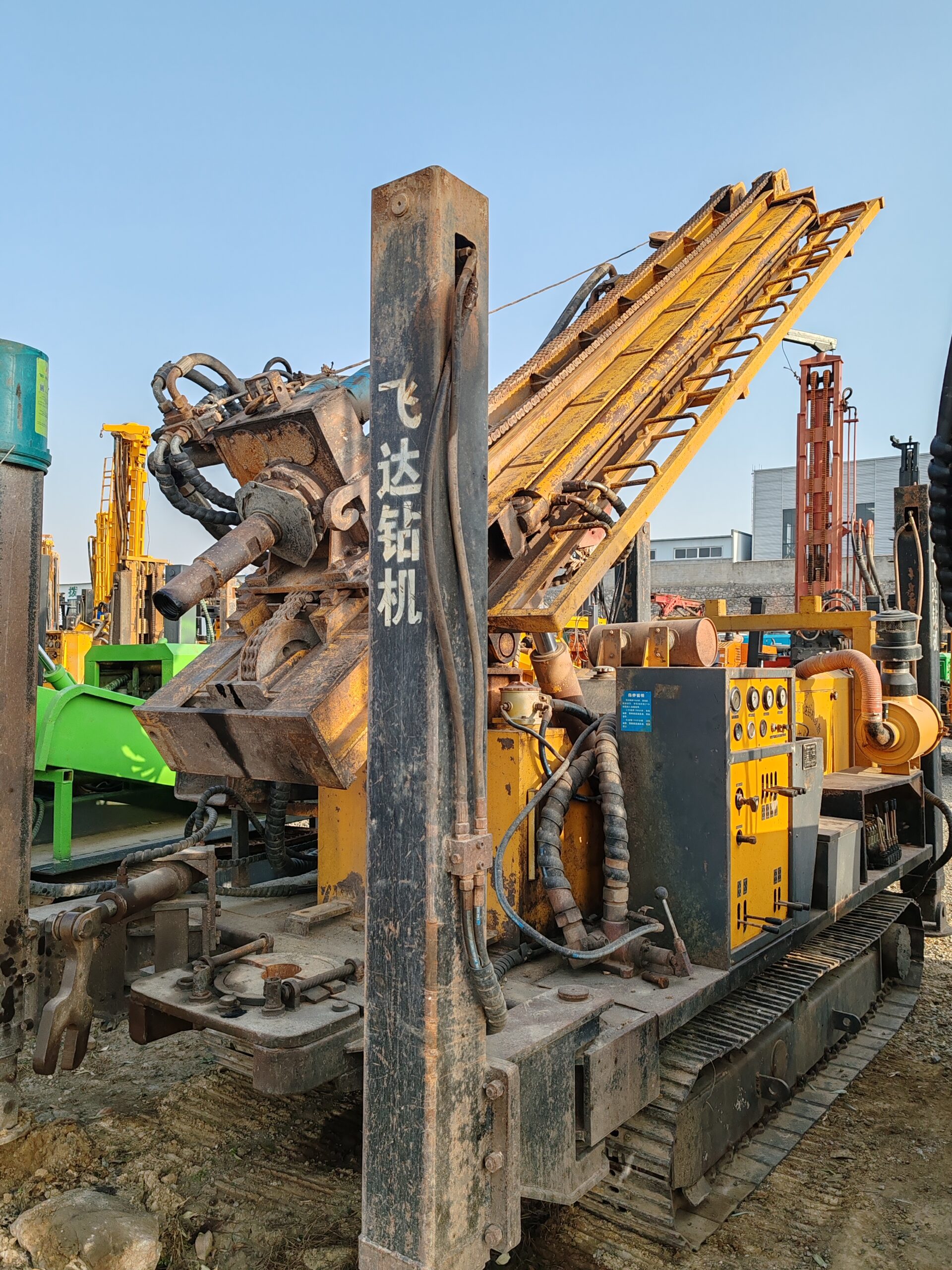

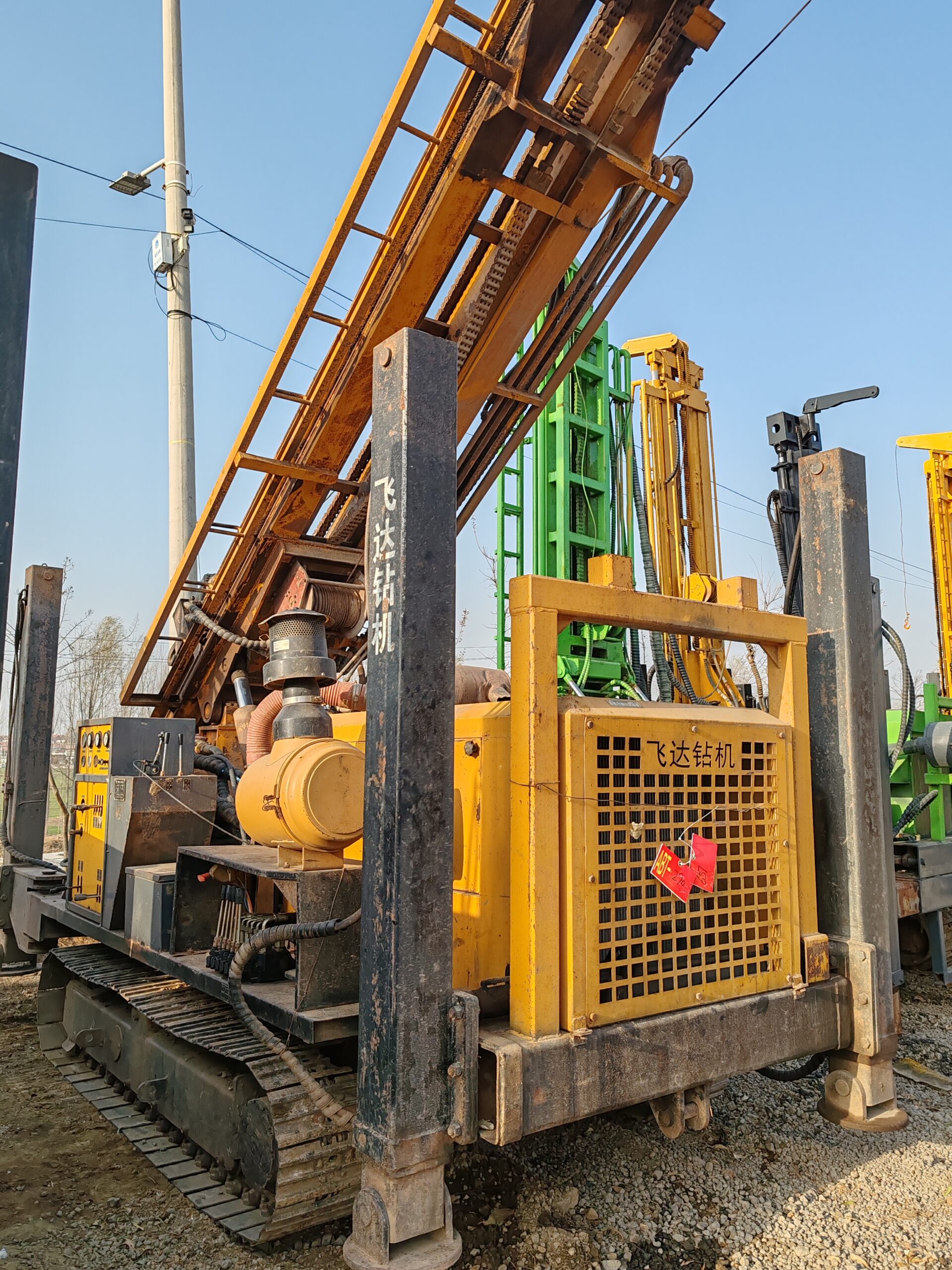

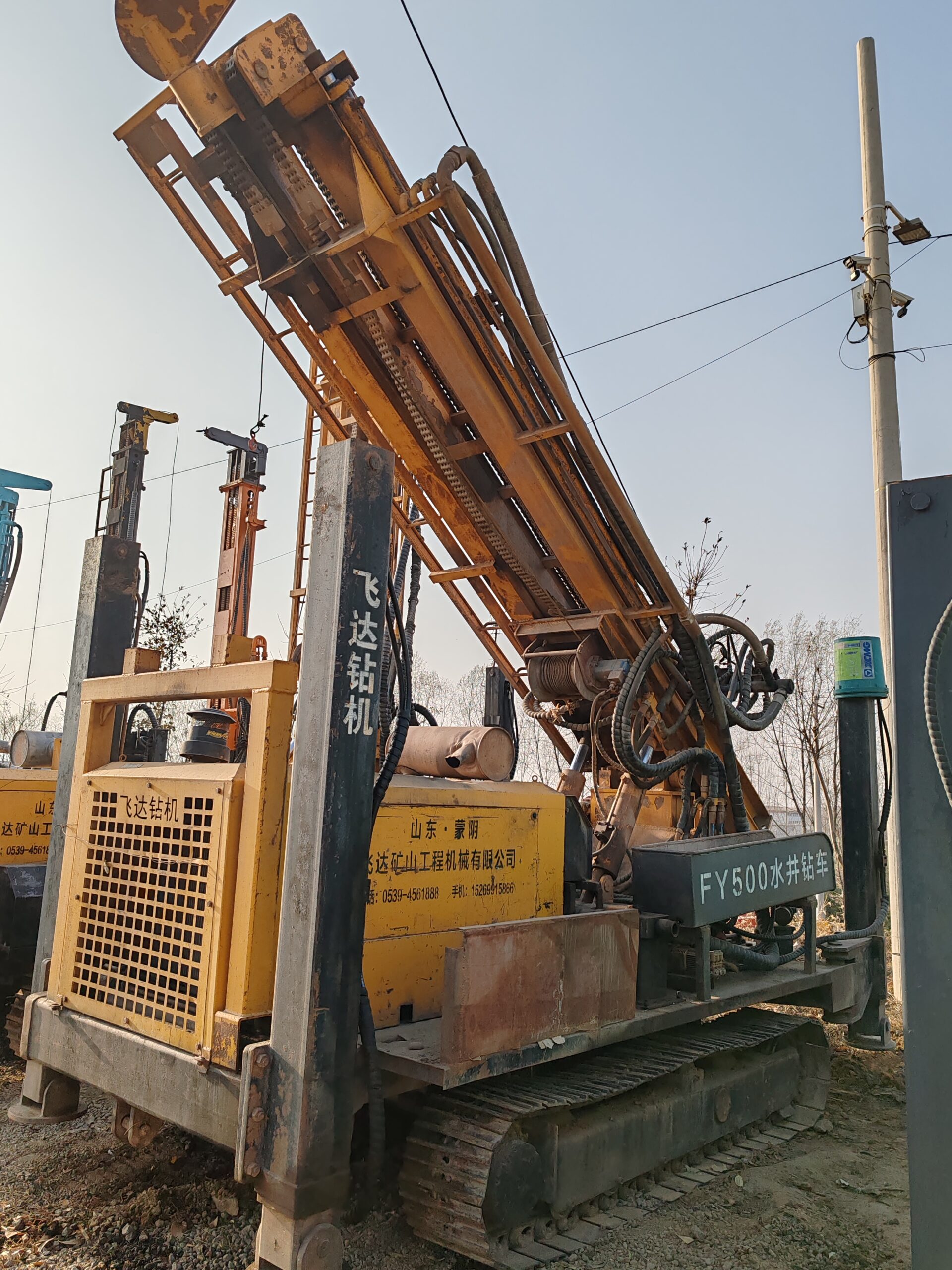

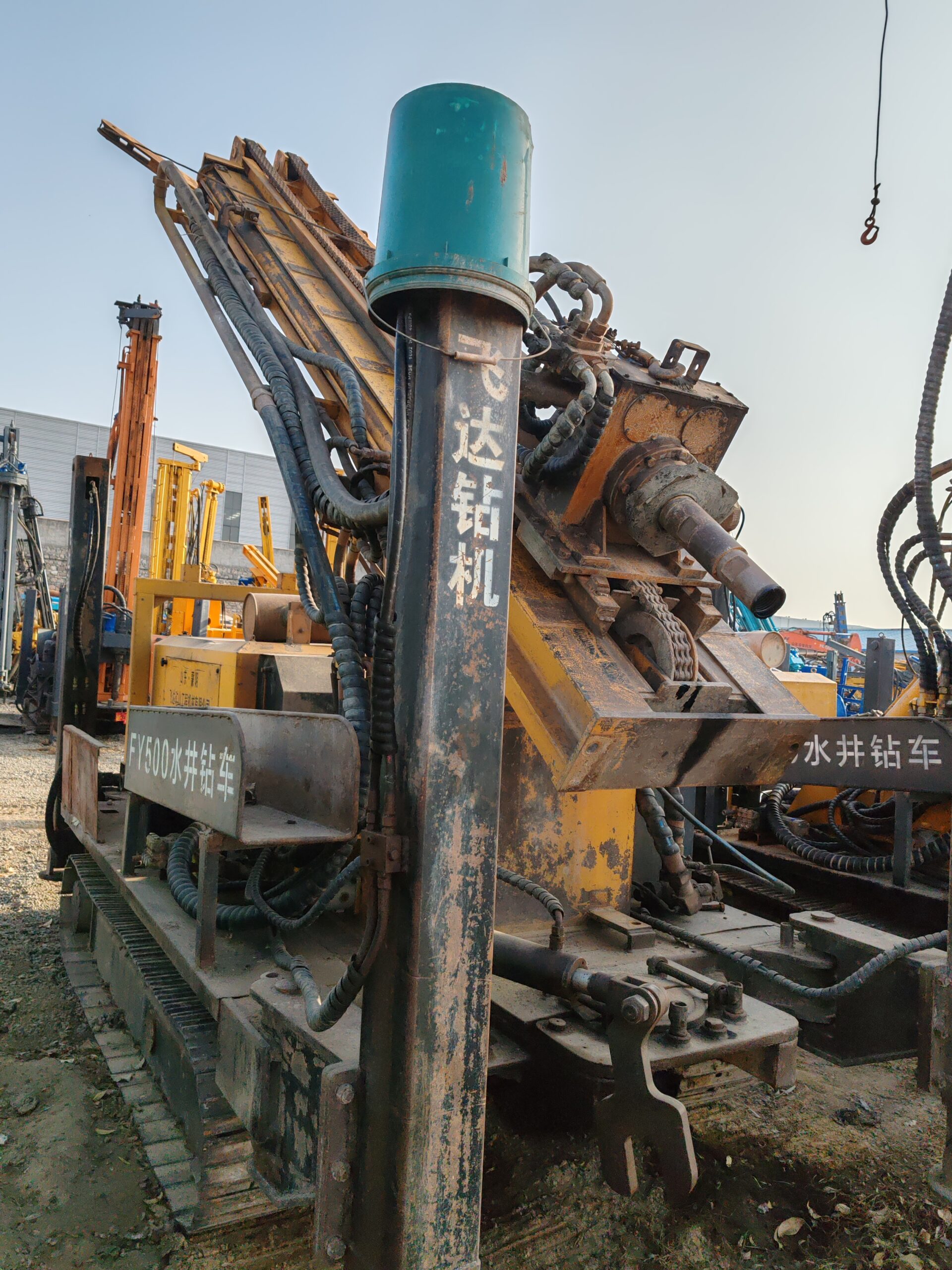

ABT289 FeiDaFYX500 Used Water Well Drilling Machine

$18,309.00

库存 1 件

描述

Product Name:500m water well drilling machine on sale

Year:2022

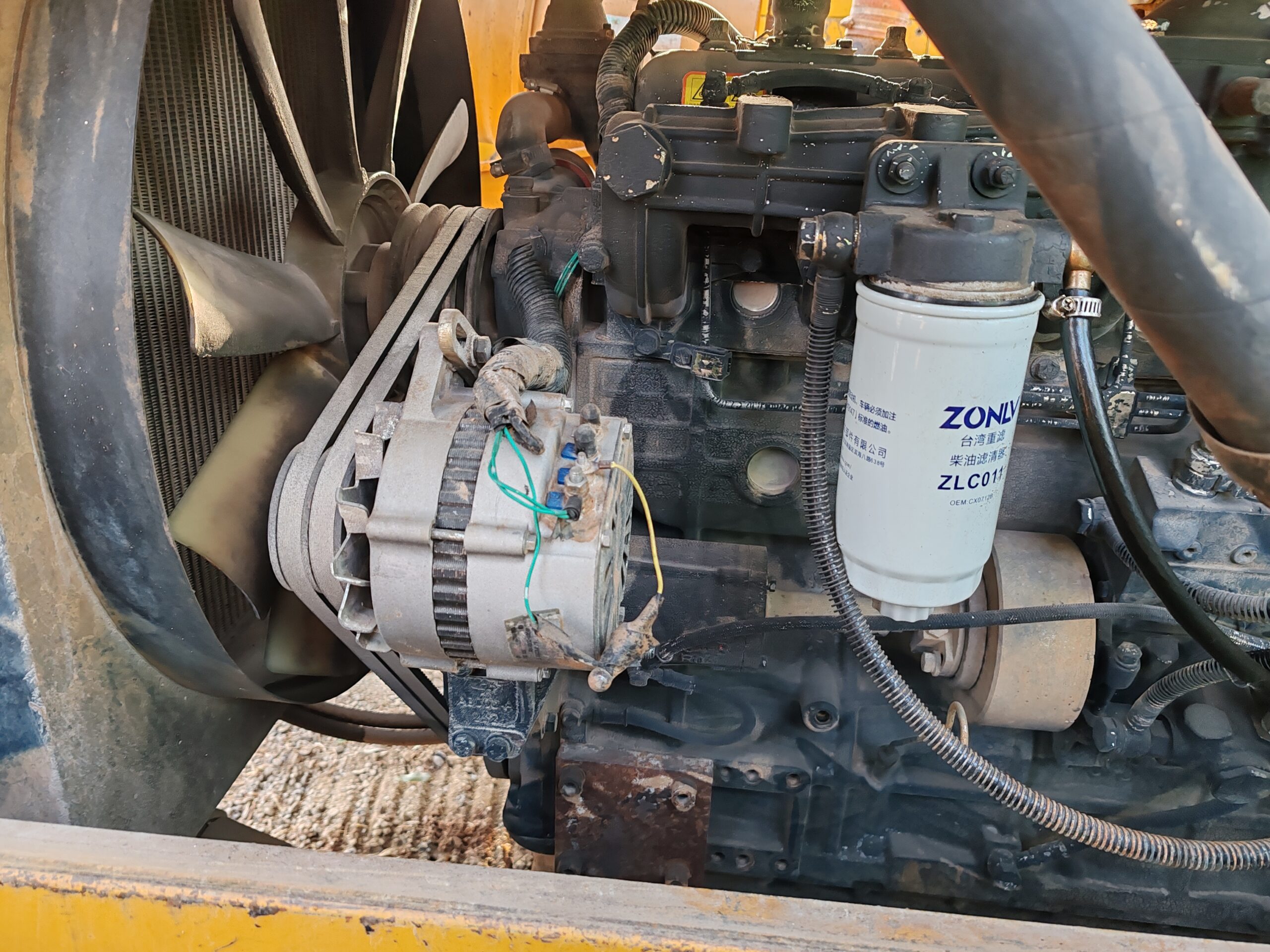

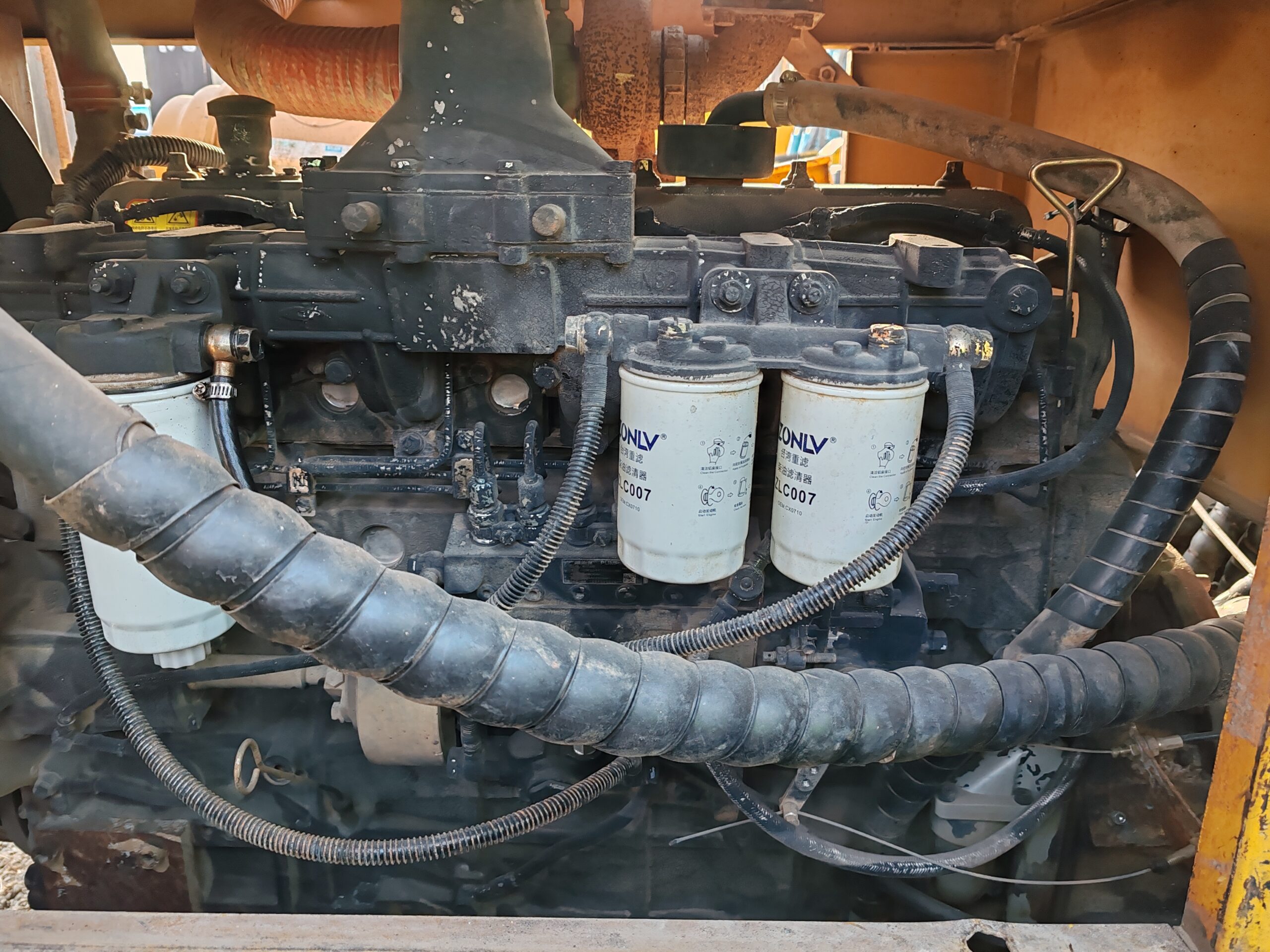

YuChai Engine 118KW

6.6m High Tower

Steel Track

Drilling Hole Depth:30-200m

Drill Hole Diameter:300-75mm

Borehole Inclination:90-75°

Vertical Shaft Speed:64、128、287、557r / min

Vertical Shaft Stroke:450mm

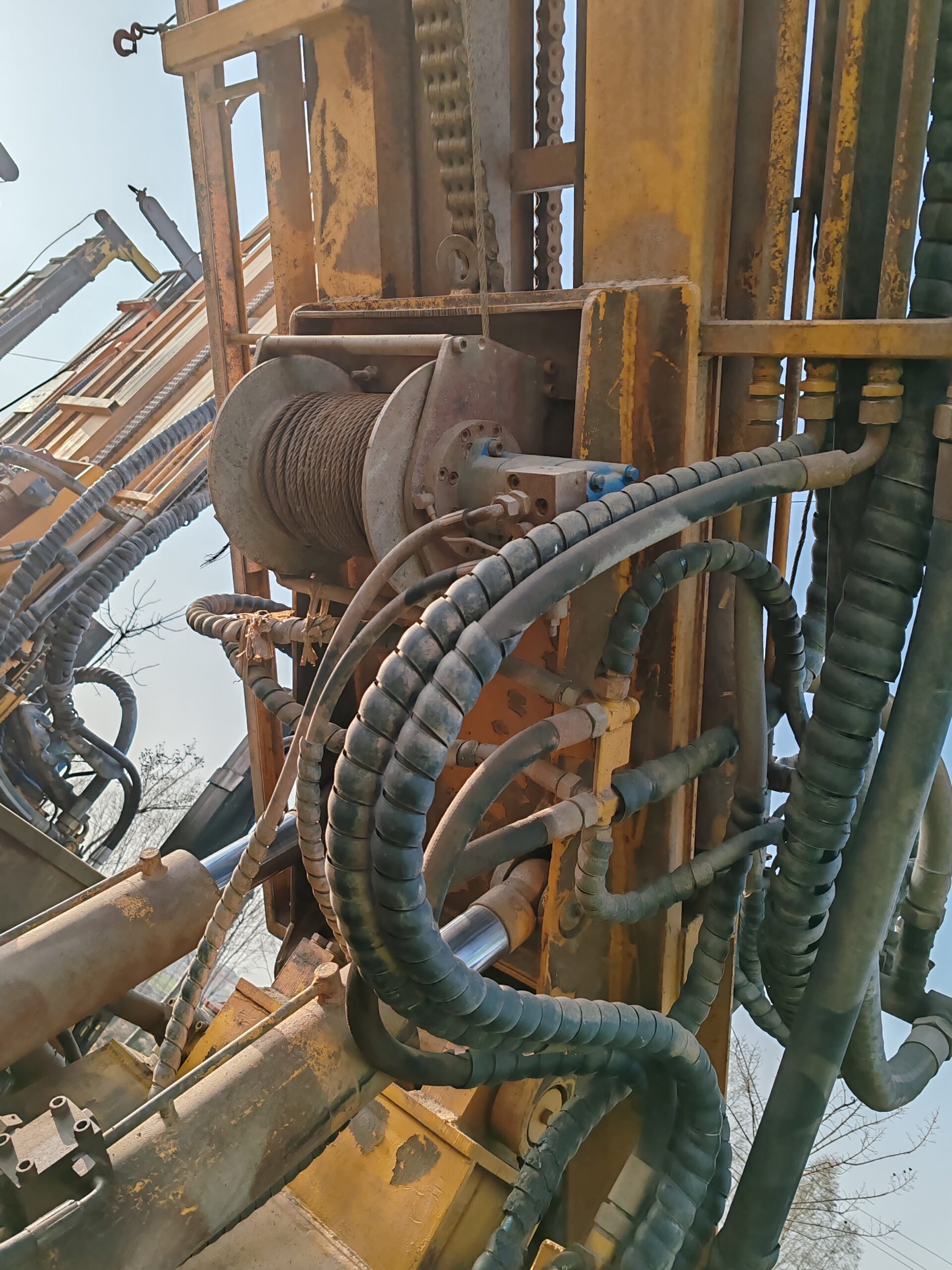

Lifting Capacity Of Main Winch (Single Rope):1600Kg

Main Winch Rope Capacity:35m

Drum Lift Speed:17、35、75、151r / s

Wire Rope Diameter:12.5mm

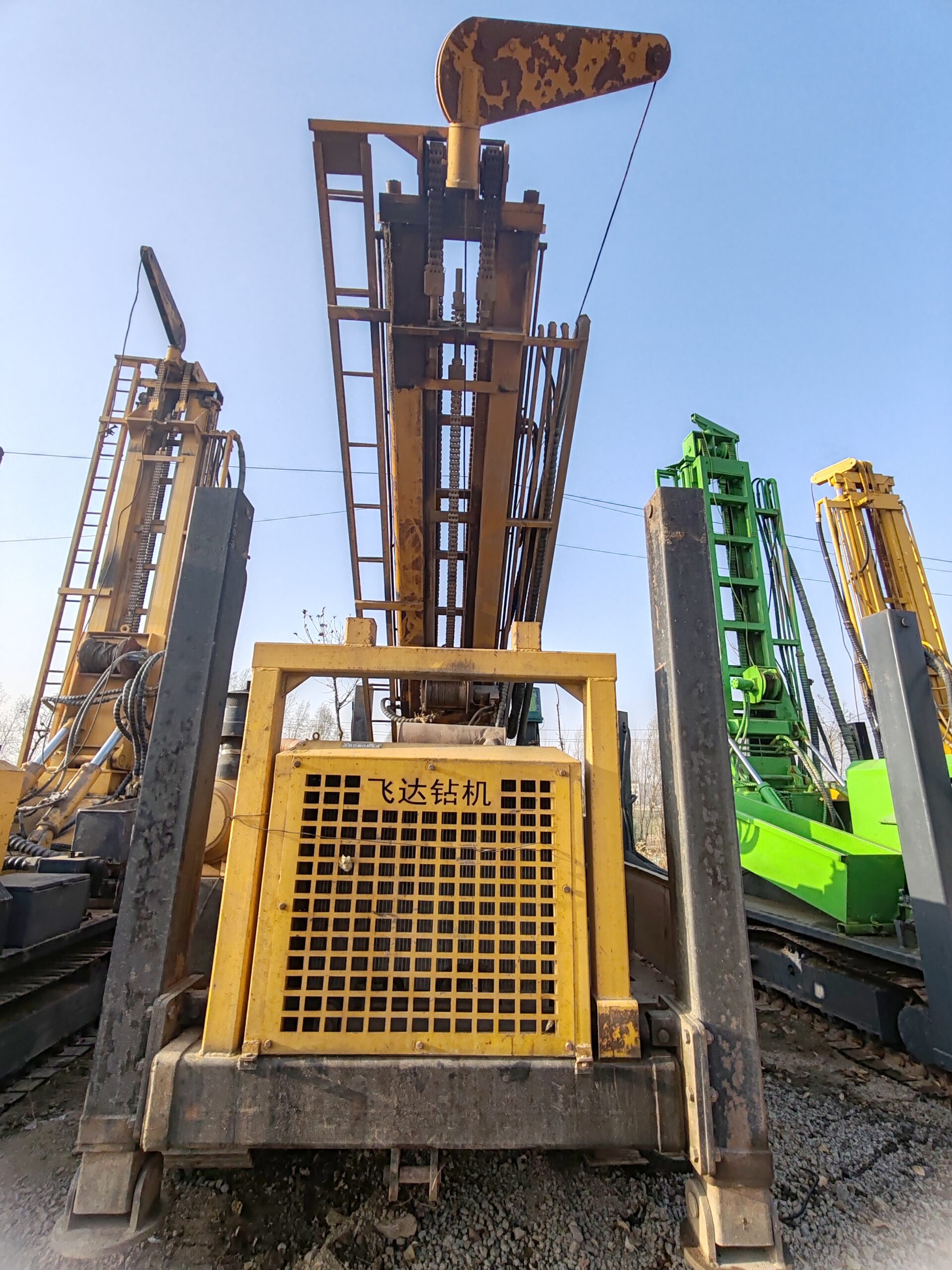

Tower Height:7000mm

Effective Height of rig:6500mm

Active Drill Pipe:59*53mm

Drill Pipe :42、50、60mm

Feature:

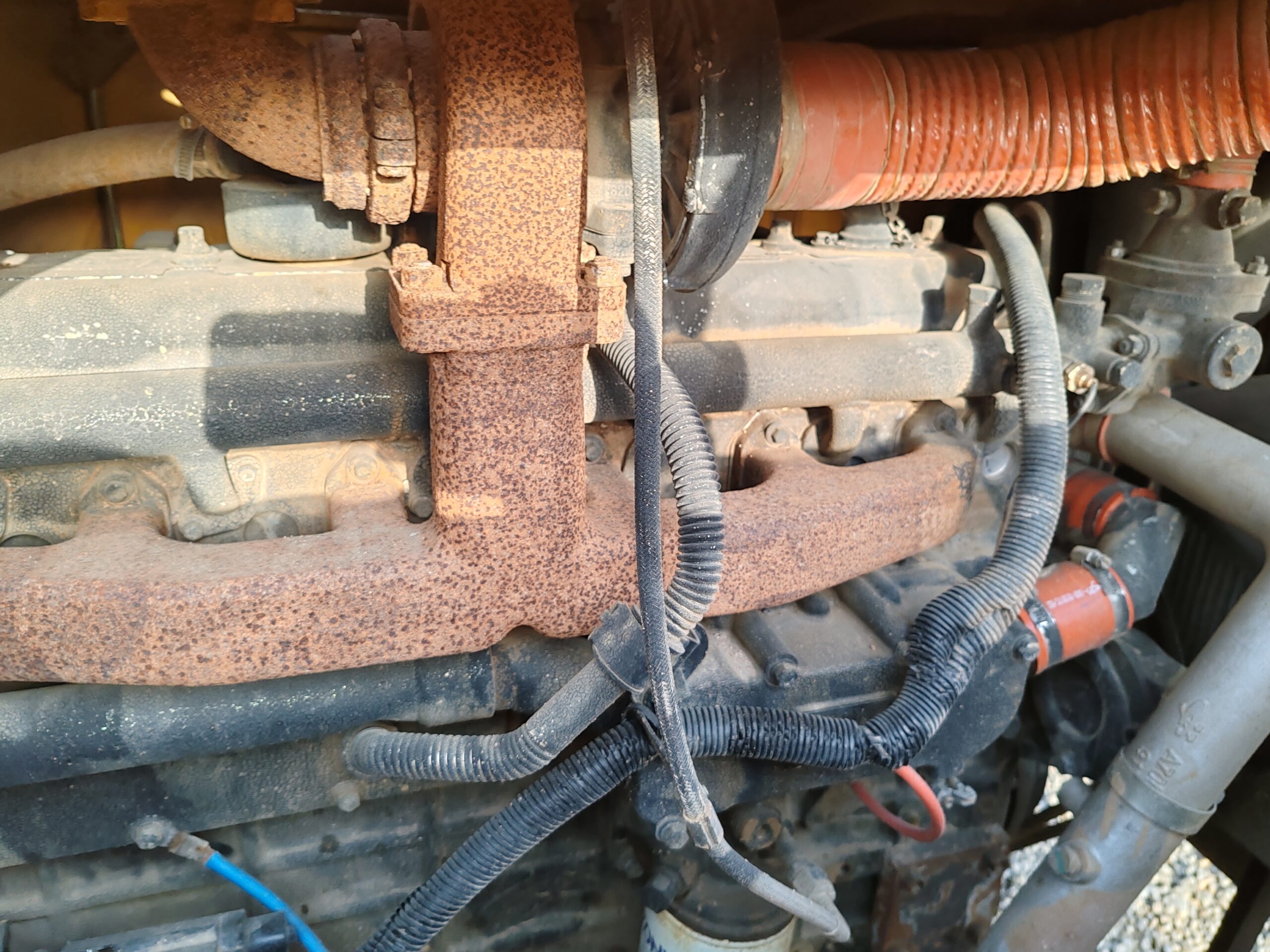

1. Engine: well-known brand Guangxi Yuchai turbocharged engine or American Cummins brand turbocharged engine

2. Walking device: equipped with a new type of walking motor and reducer, long service life;

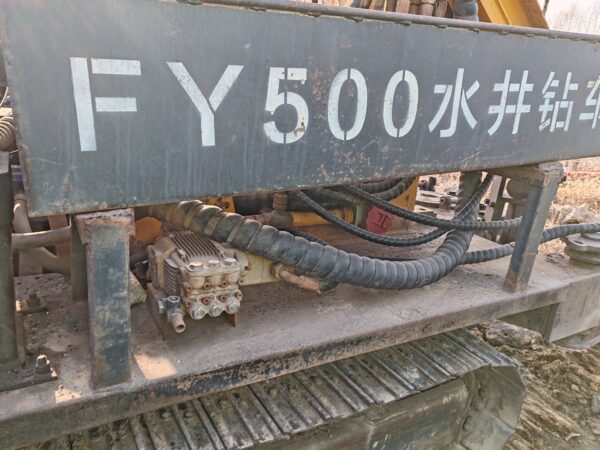

3. Hydraulic Oil Pump: Imported from Italy, Parallel Gearbox Design, Oil Pump Separation, Provided

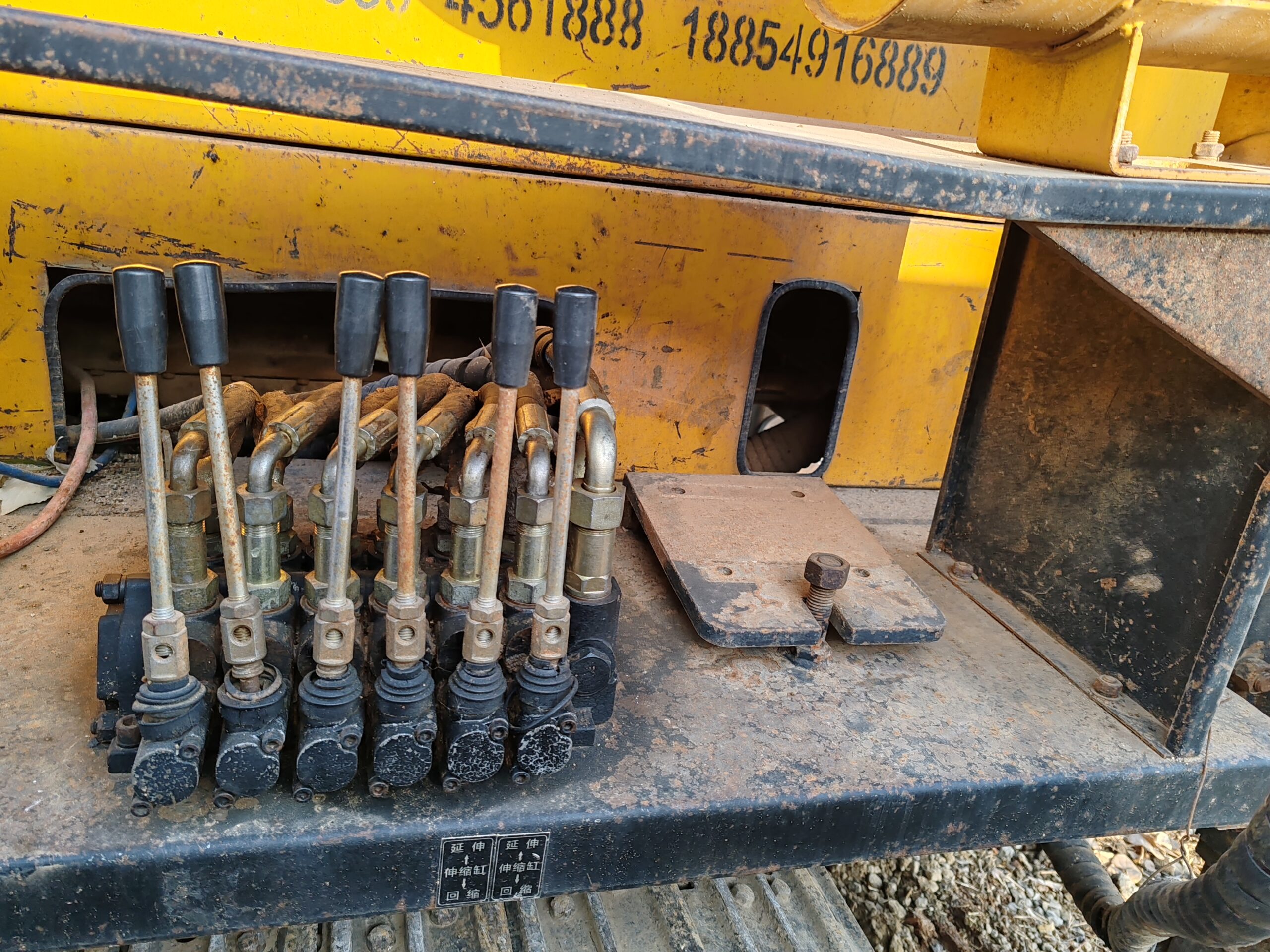

4. Adequate and reasonable power distribution. Advanced hydraulic system unique design, simple maintenance, low cost;

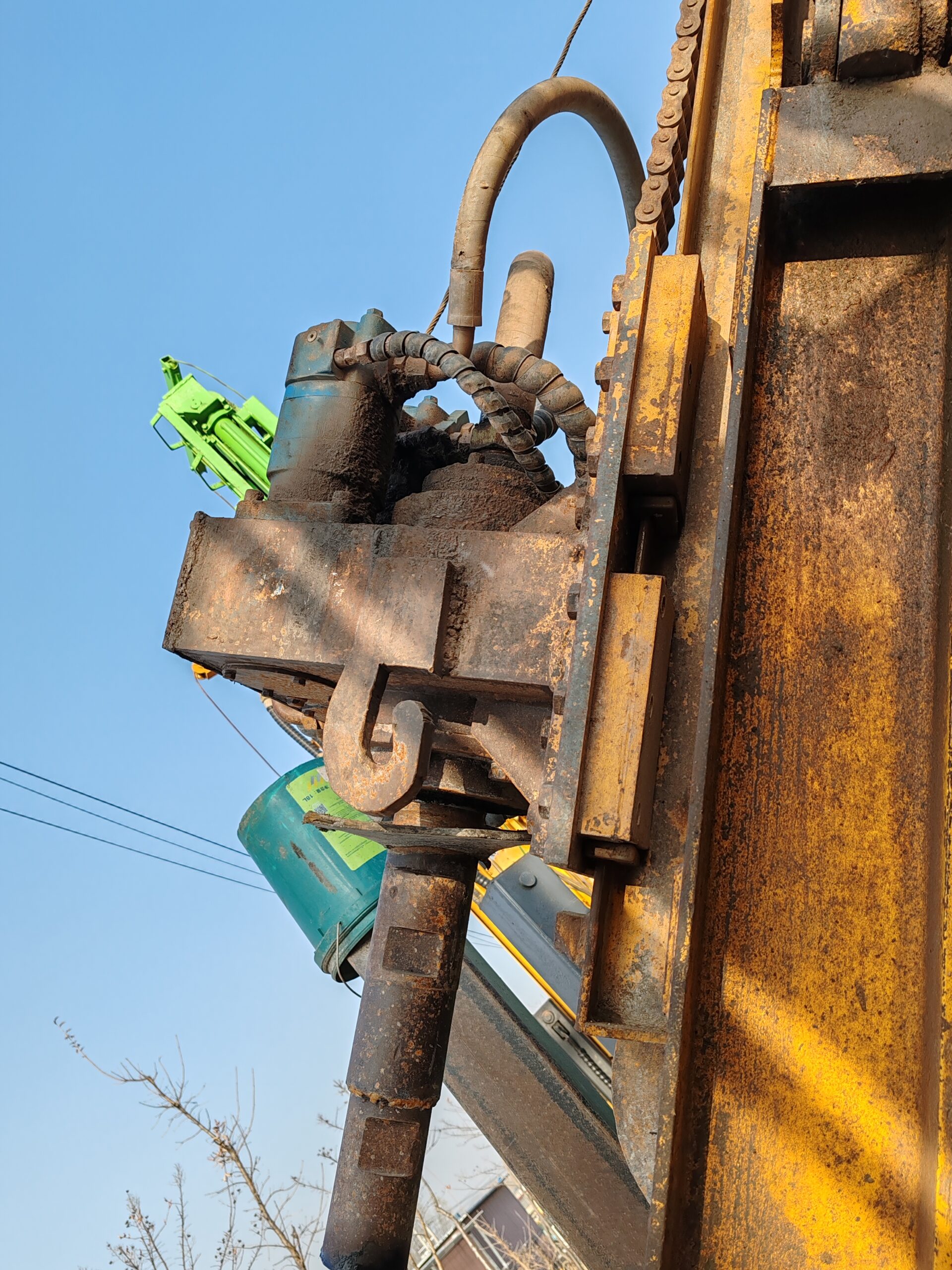

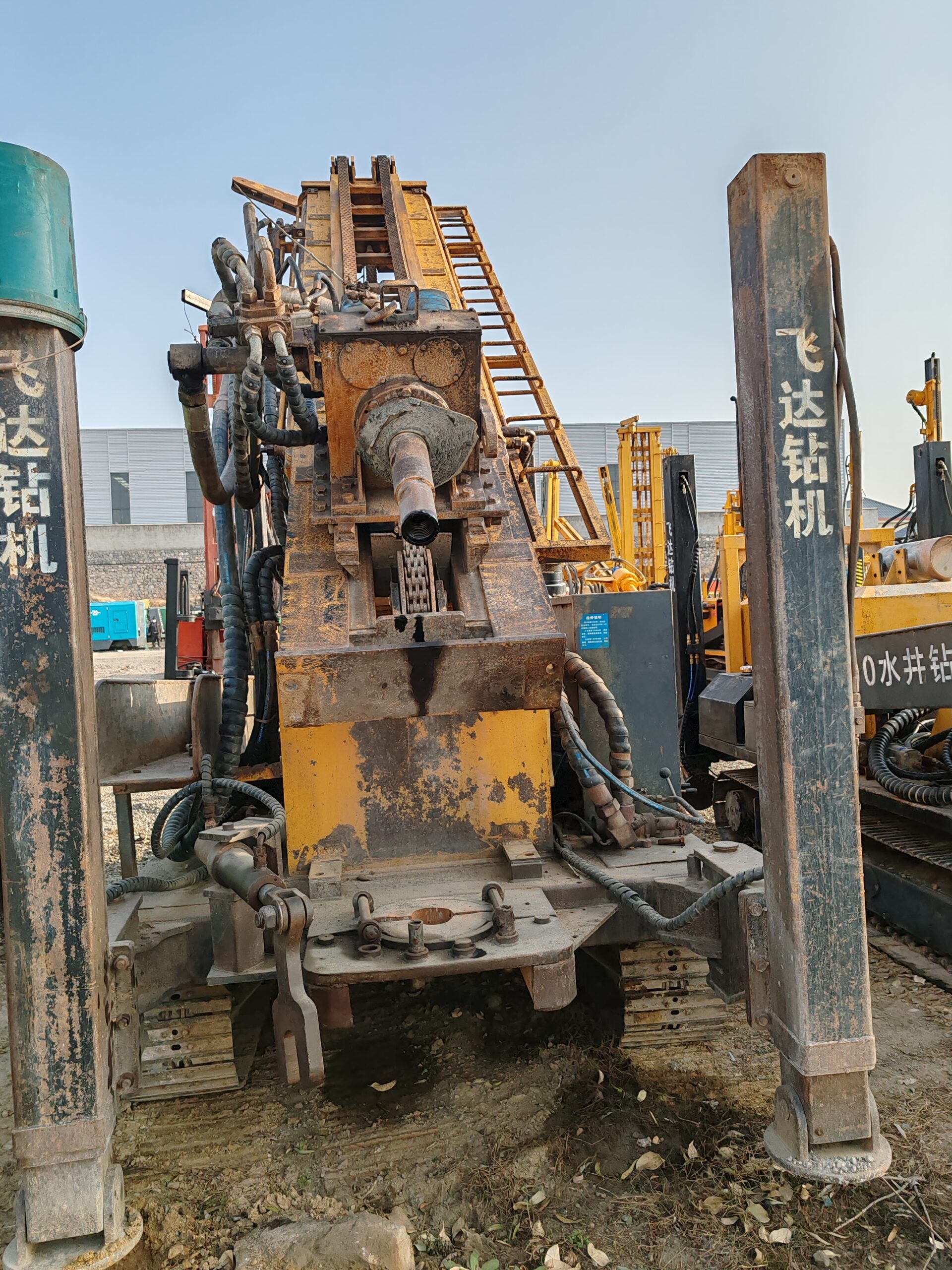

5. Power head device; The box body is integrated, double motors provide greater power, greater torque, more durable, lower maintenance costs;

6. Rig chassis; (Professional rig chassis), classic durable, load-bearing large, wide chain plate width, less damage to hard road surface;

7. Lifting force; The design of the composite arm, arm small size, long stroke, double cylinder lifting force, the rig lifting tonnage; The lifting arm arranged with the drill body is provided with a limit device to protect the safety of the oil cylinder and ensure the safety of the work;

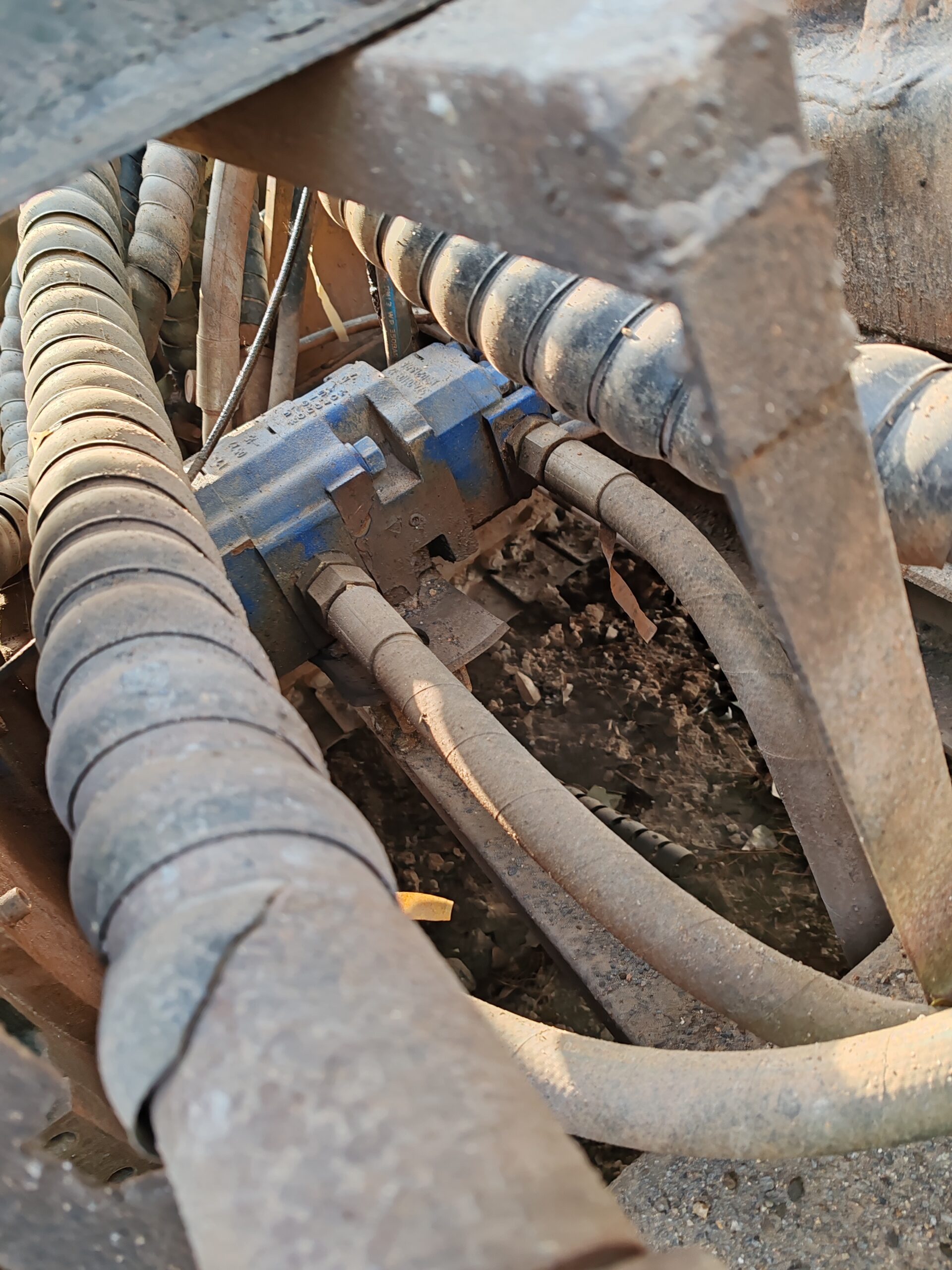

8. Each hydraulic oil pipe is covered with a thickened protective sleeve, which makes the oil pipe have a longer service life;

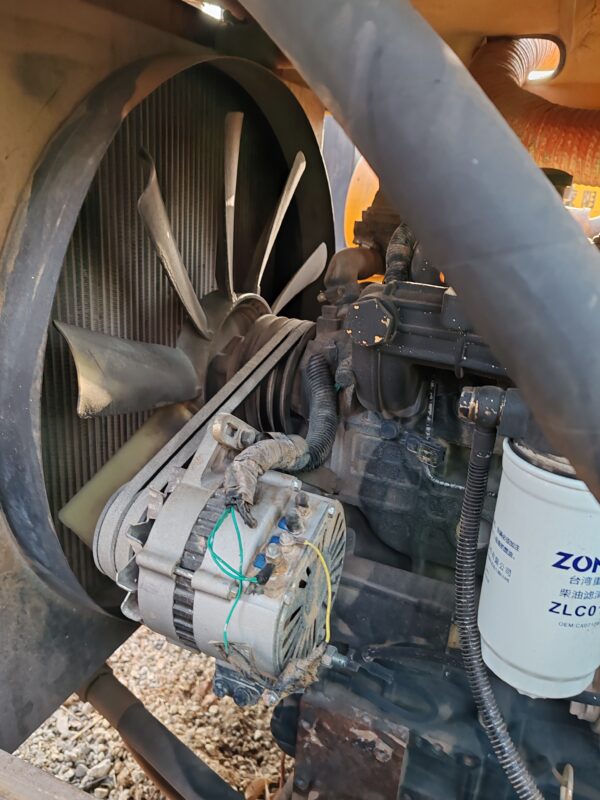

9. Independent cooling dual system adopts hydraulic oil temperature cooling, equipped with traditional air cooling. Long engine life

10. Double system: 1. Air power system with air compressor 2. Mud pump system with mud pump

Application Indsutry:

water wells, rescue, dewatering wells, large-diameter blasting holes in mines (instead of rotary drills), exploration sampling wells, hydropower wells, highway wells, coal wells, petroleum wells, natural gas wells, coalbed methane wells, municipal wells, monitoring wells, ground source heat pump holes, anchoring, and non excavation.

其他信息

重量 11500 公斤
