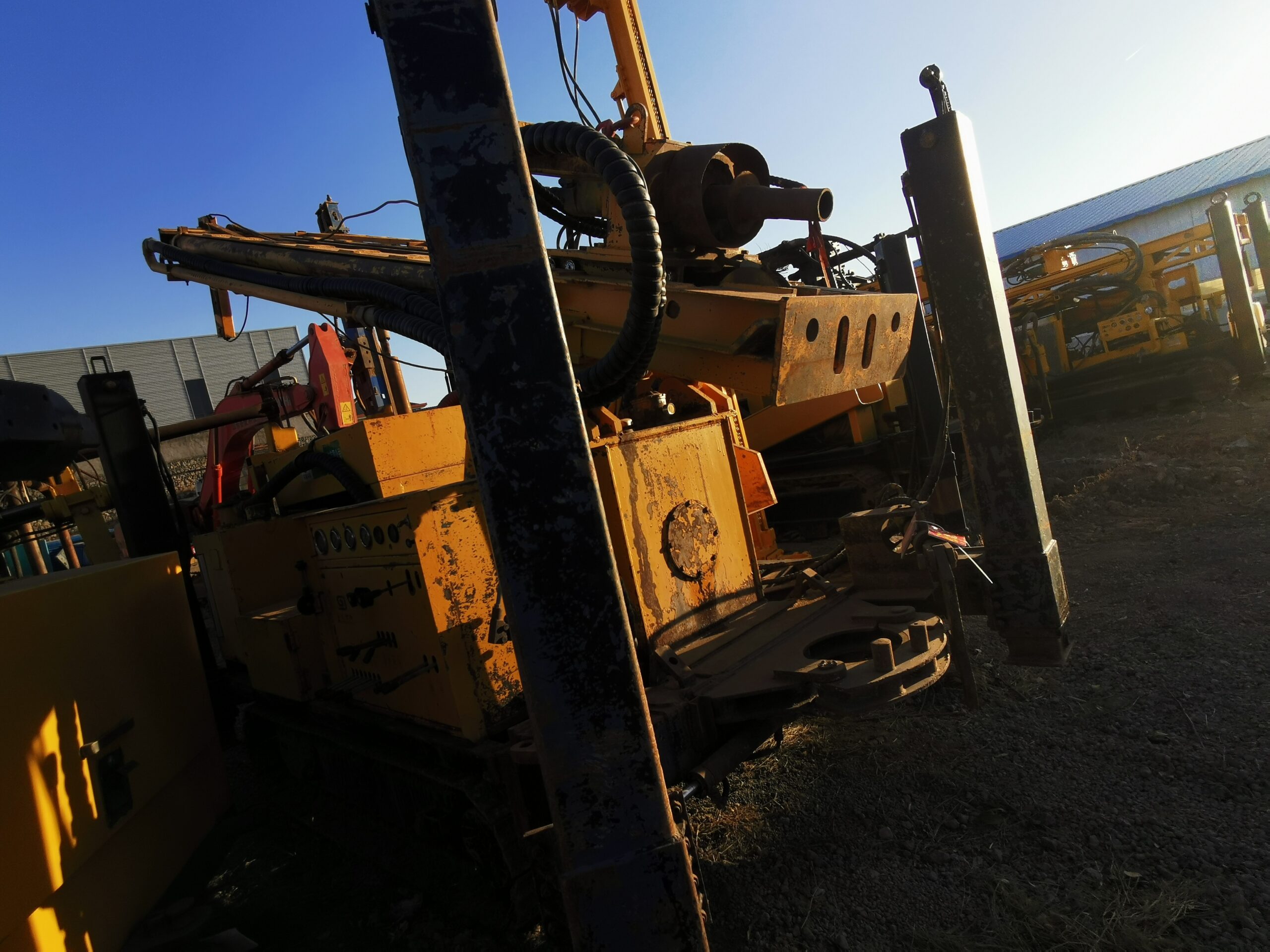

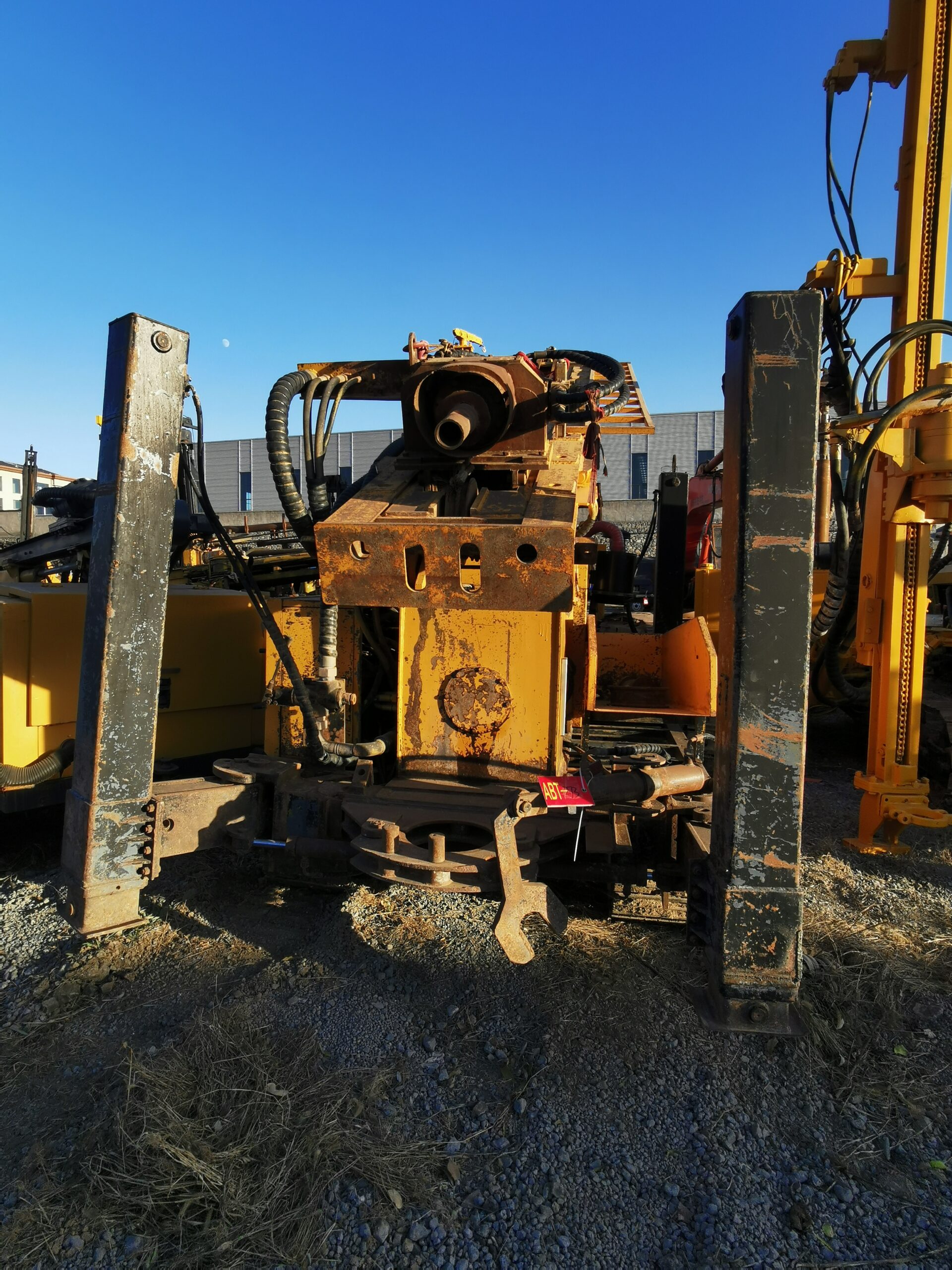

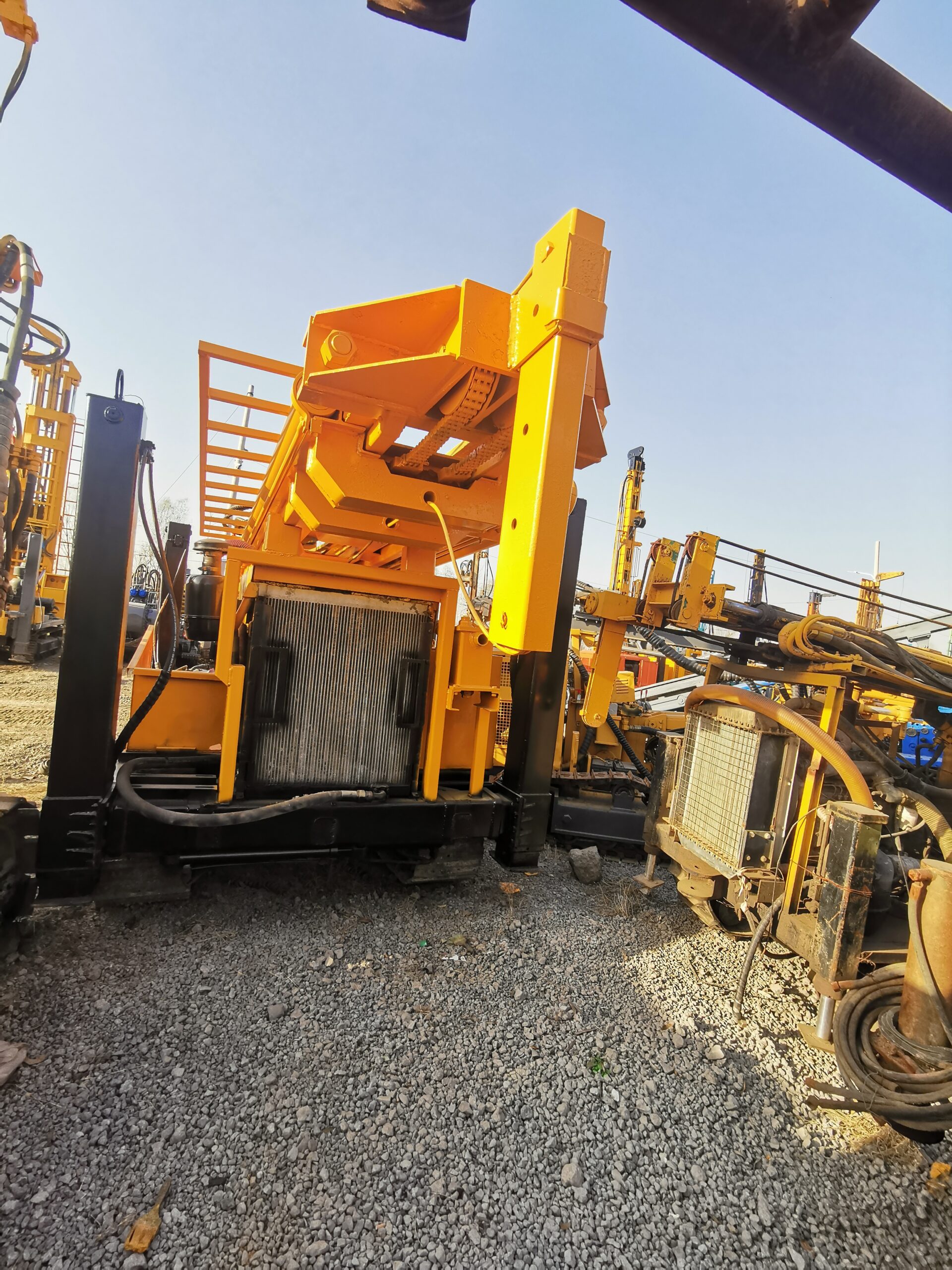

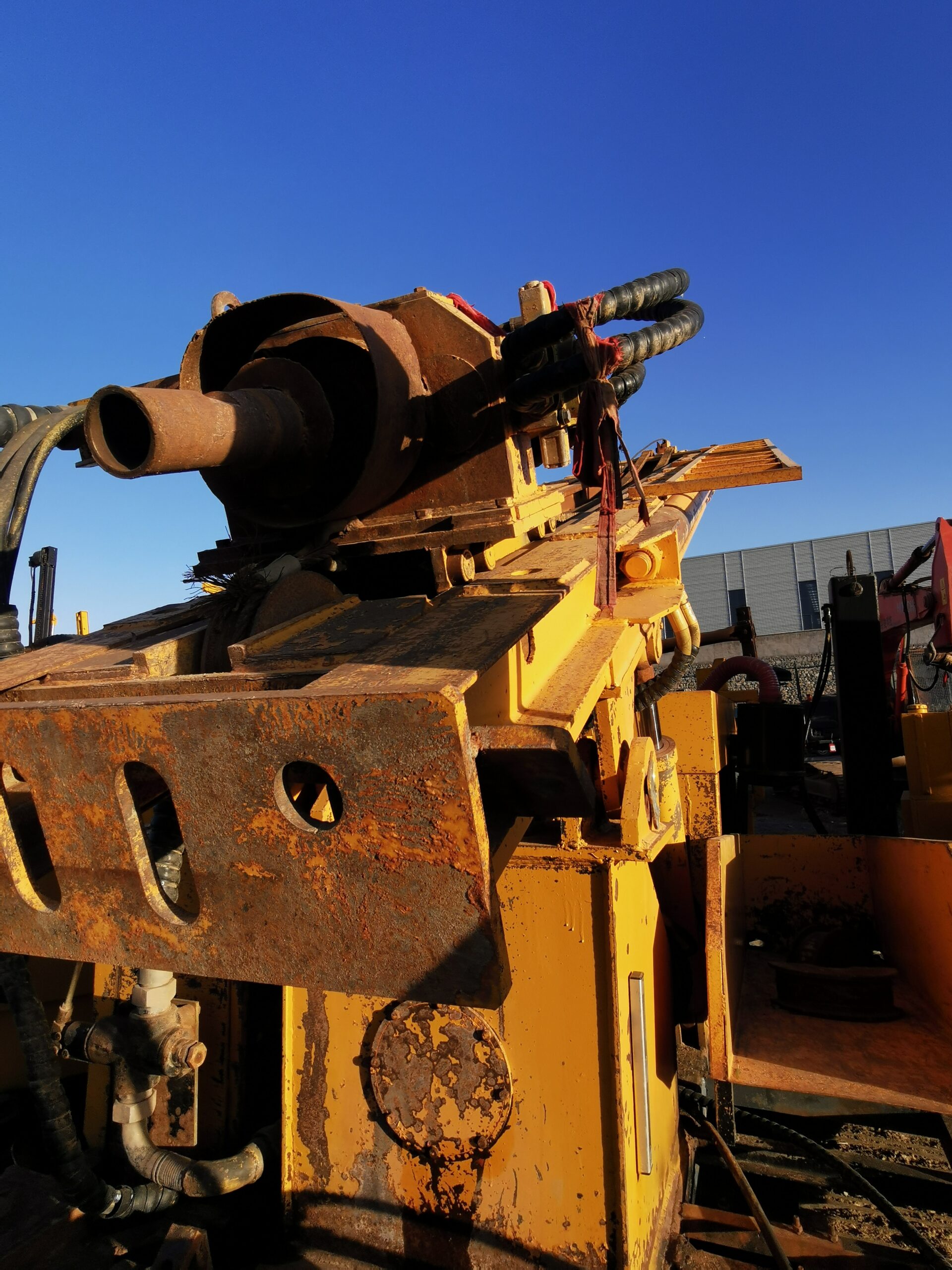

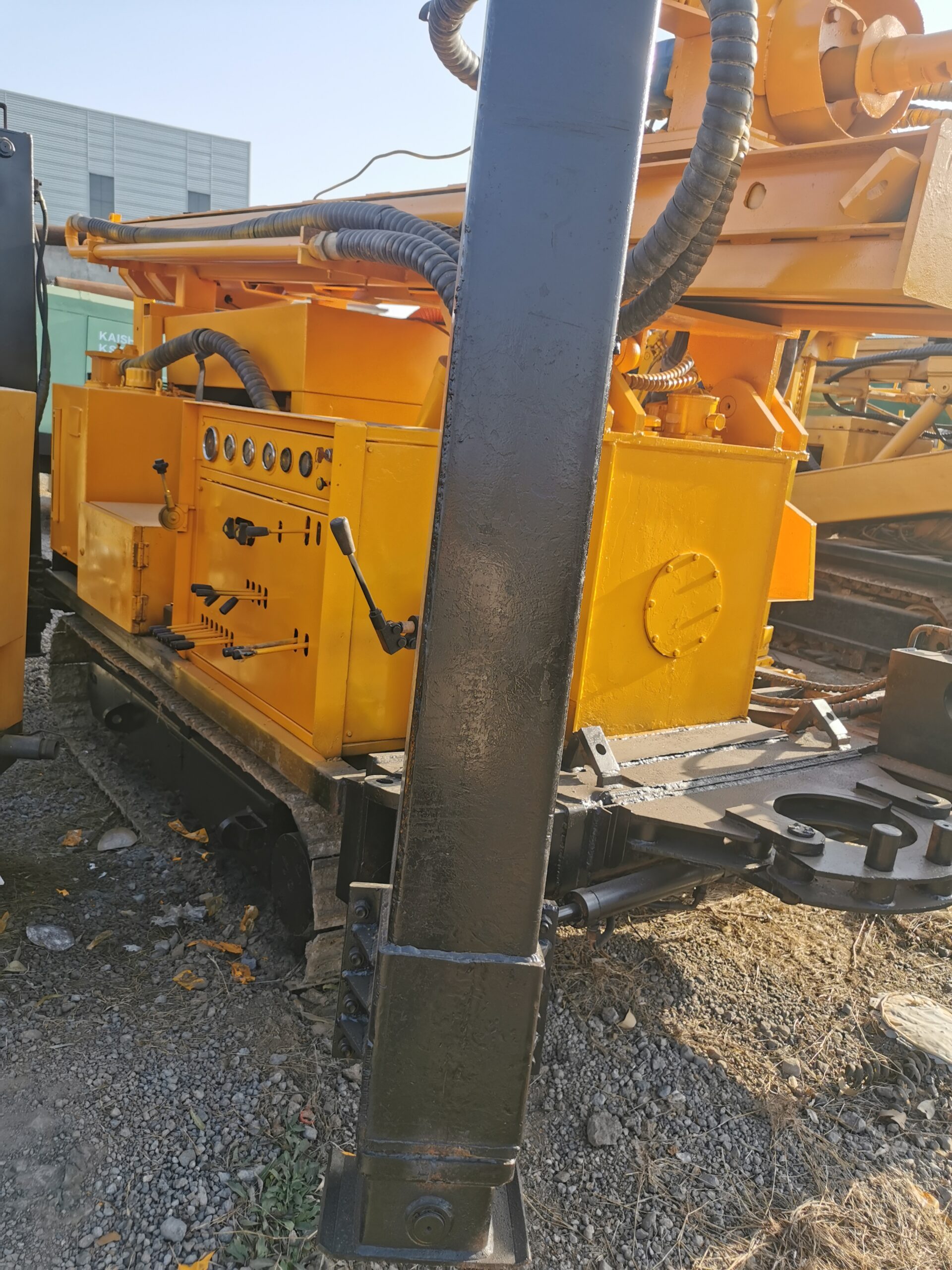

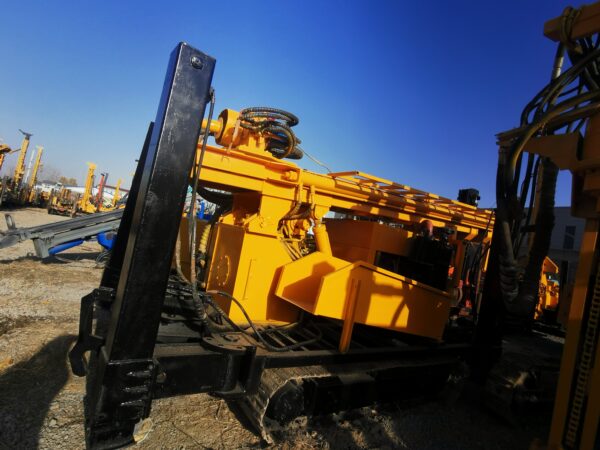

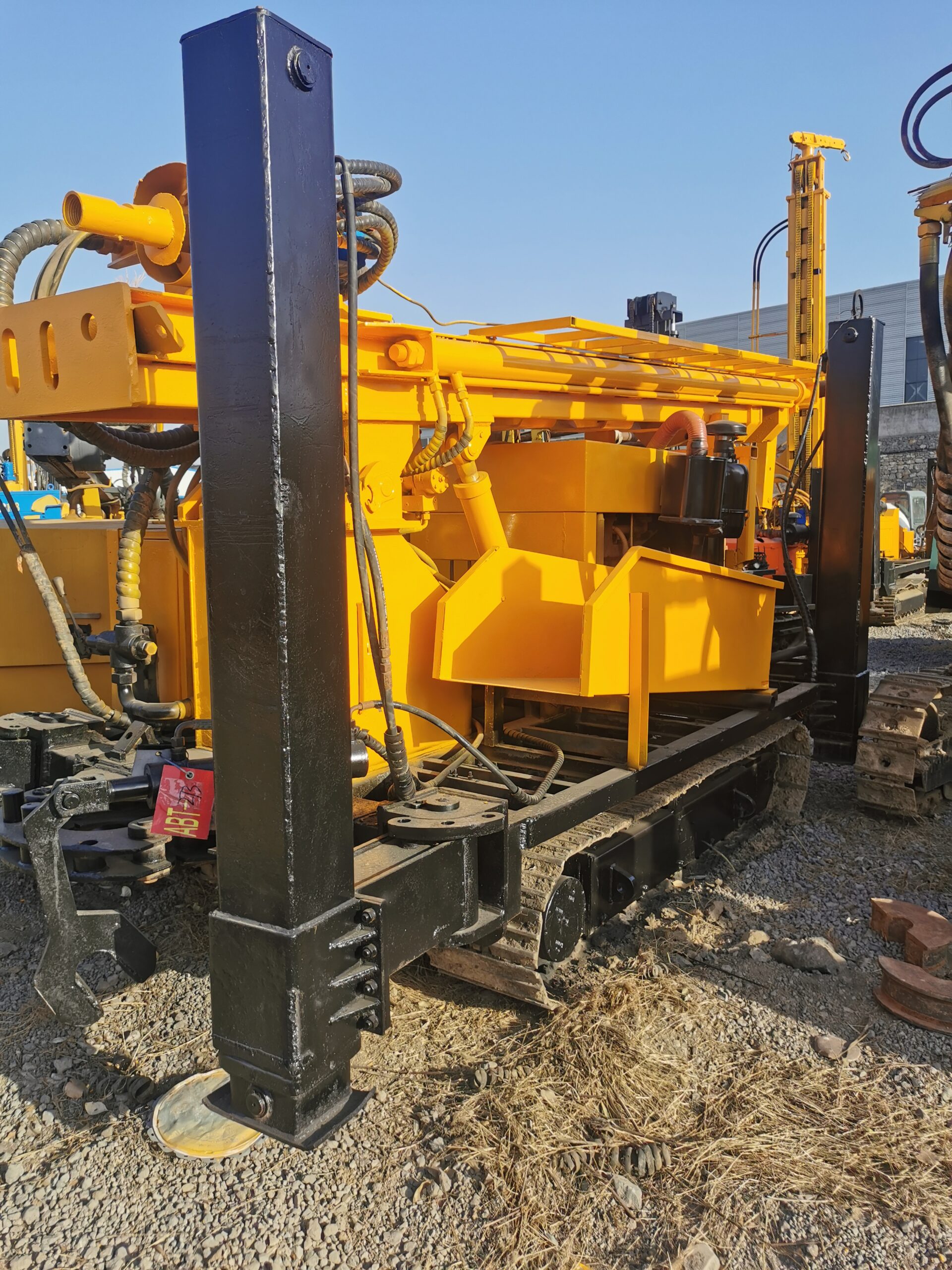

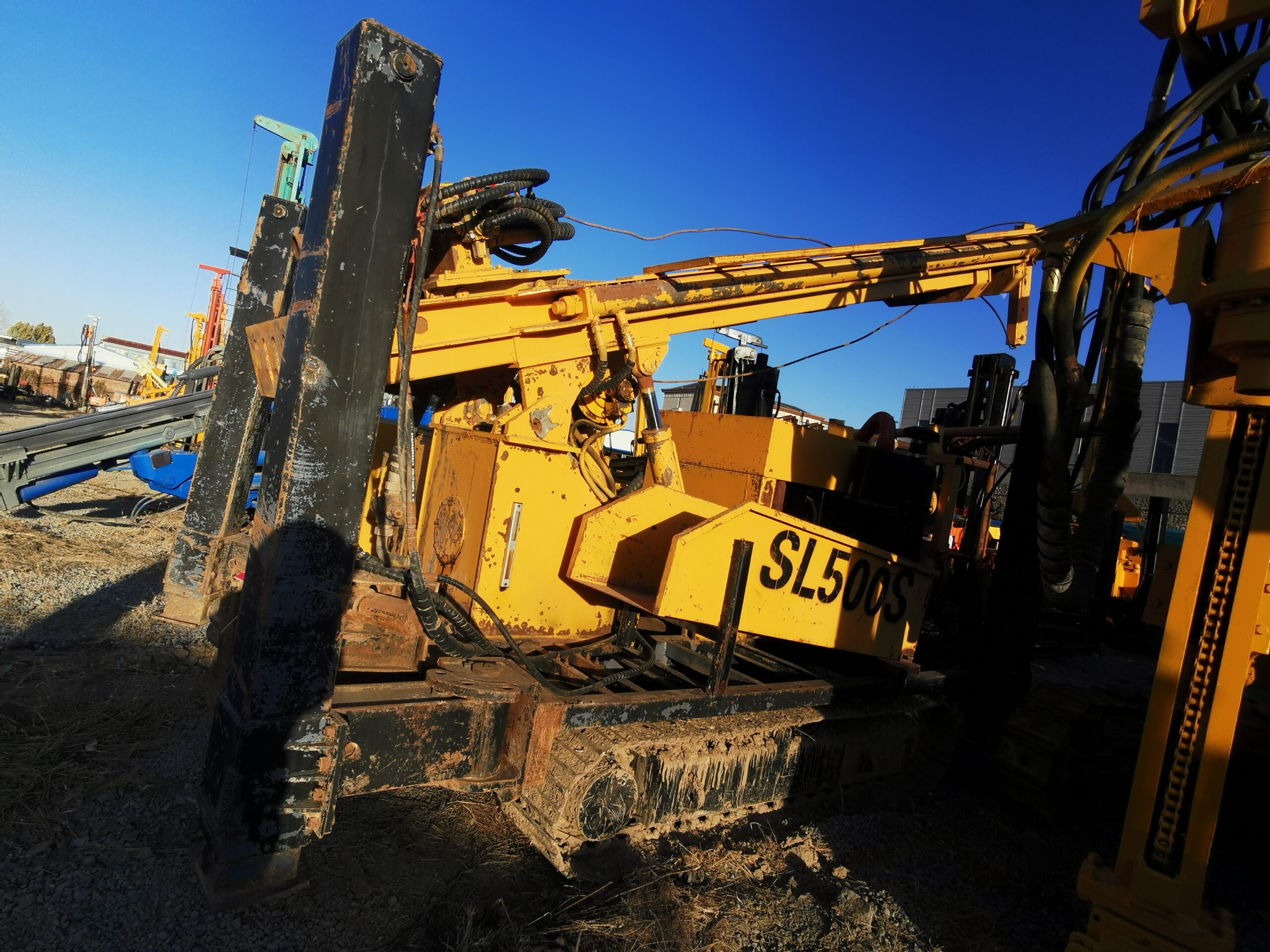

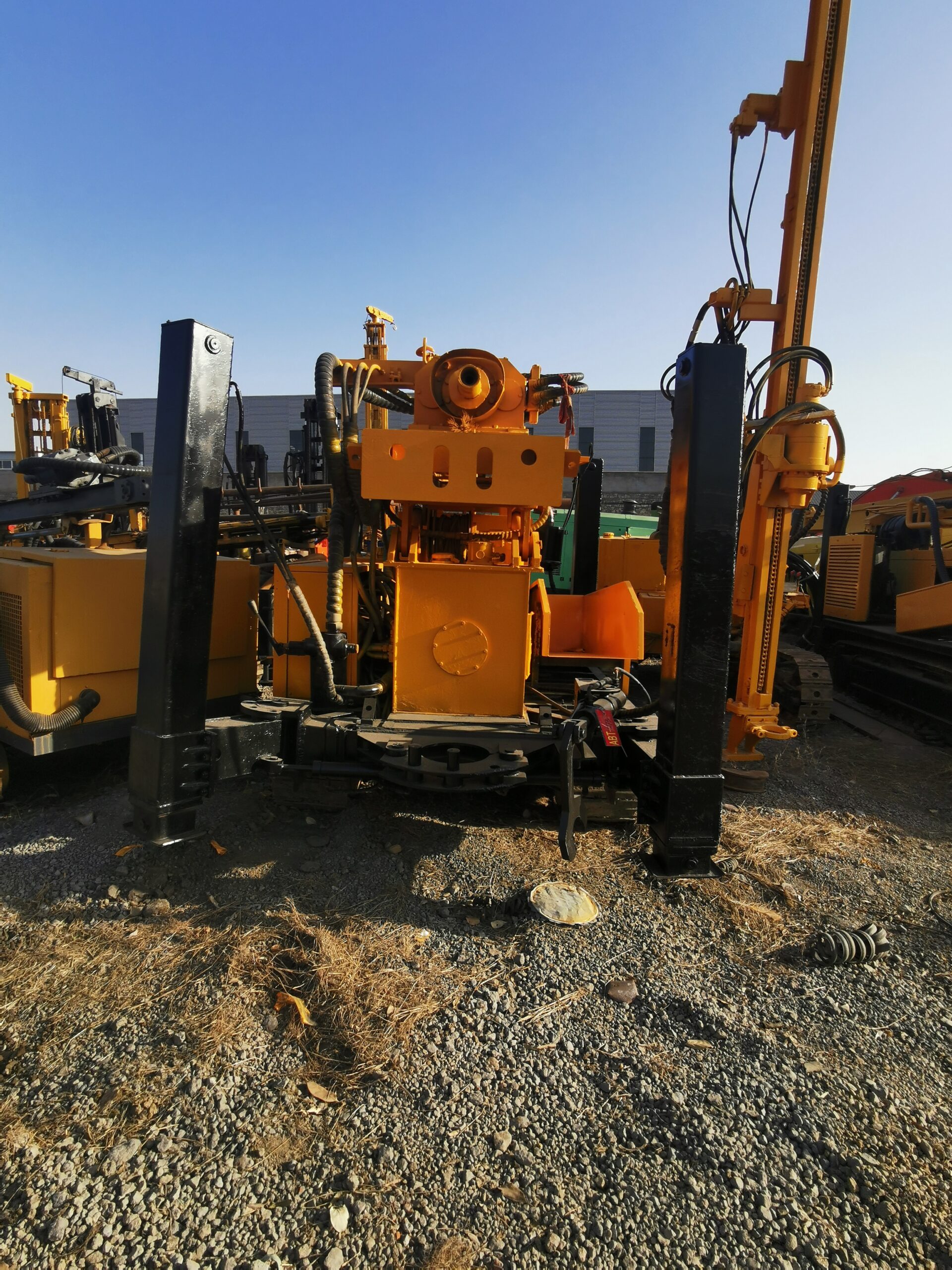

ABT273 ZhengYuanSL500S Used Water Well Drilling Machine

描述

Product Name:500m water well drilling machine on sale

Year:2019

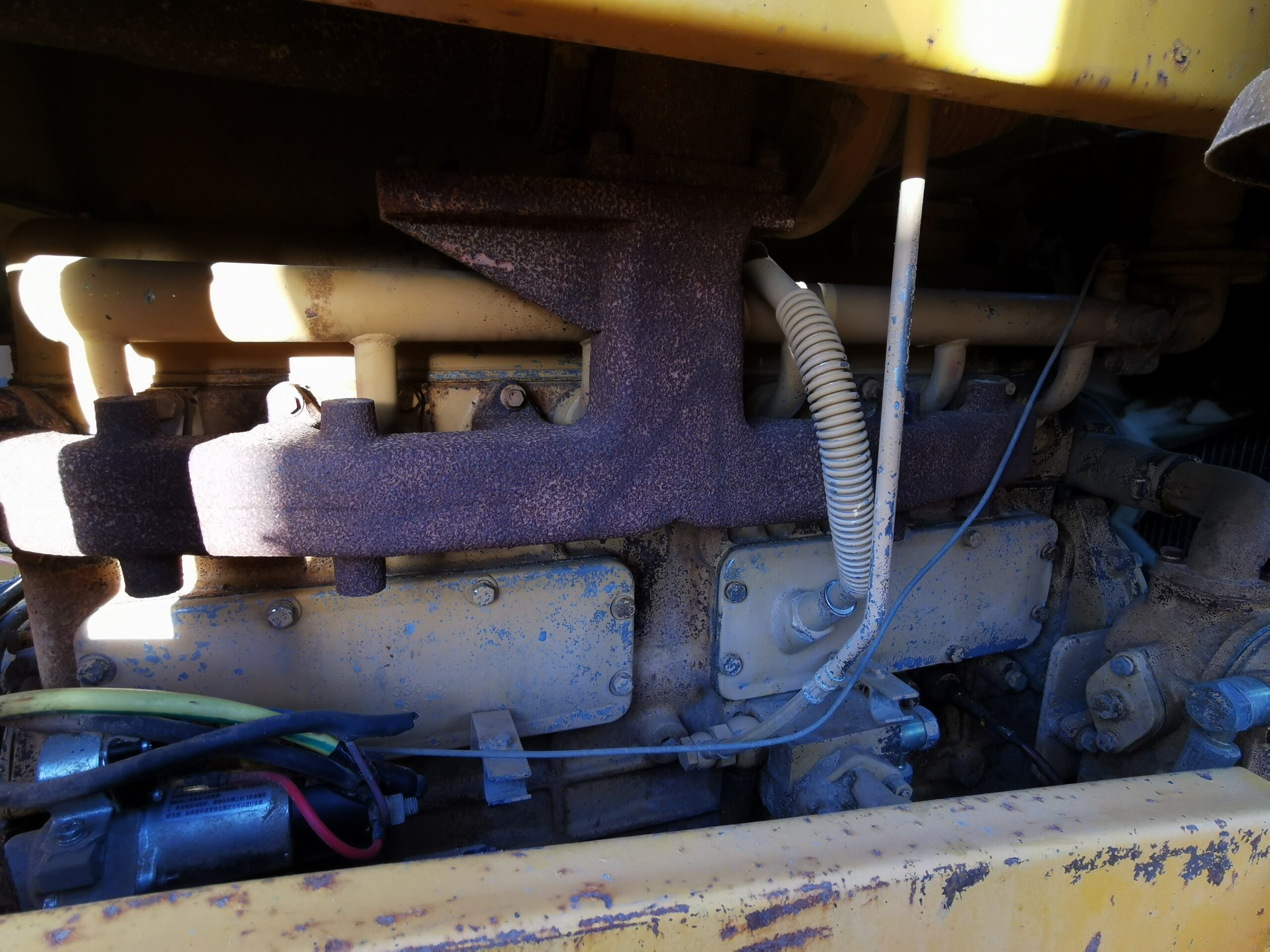

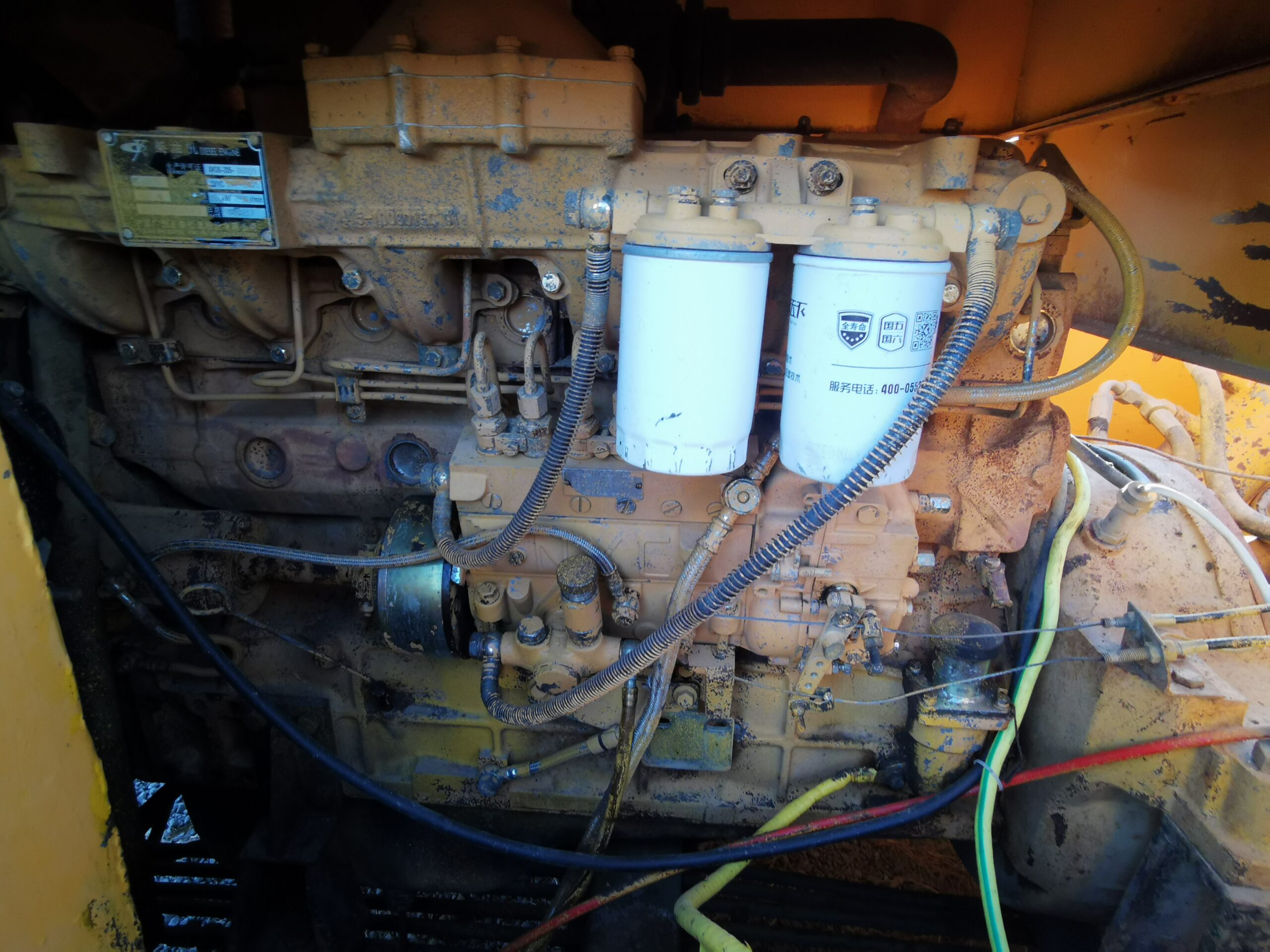

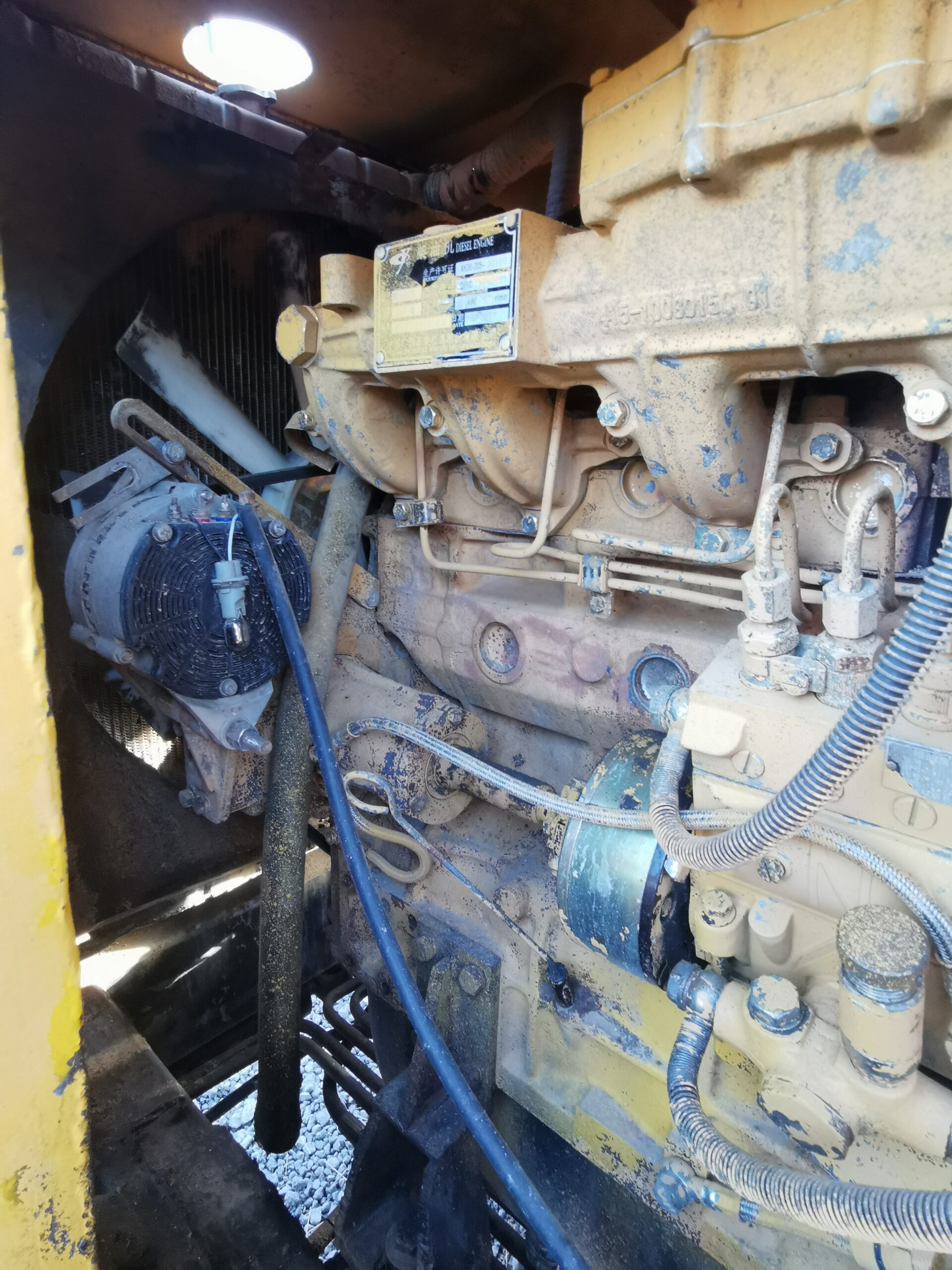

WeiChai Engine 132KW

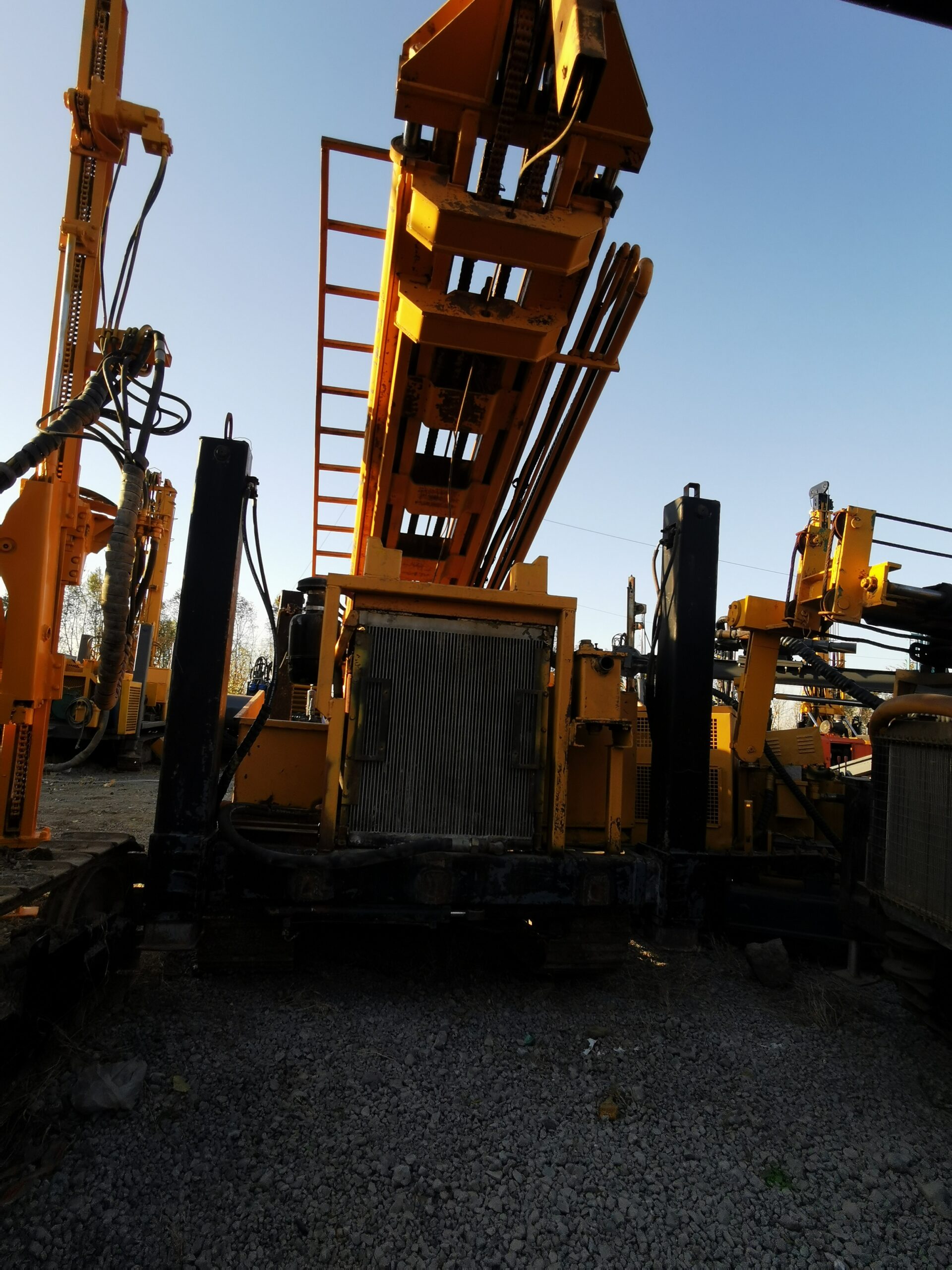

6.6m High Tower

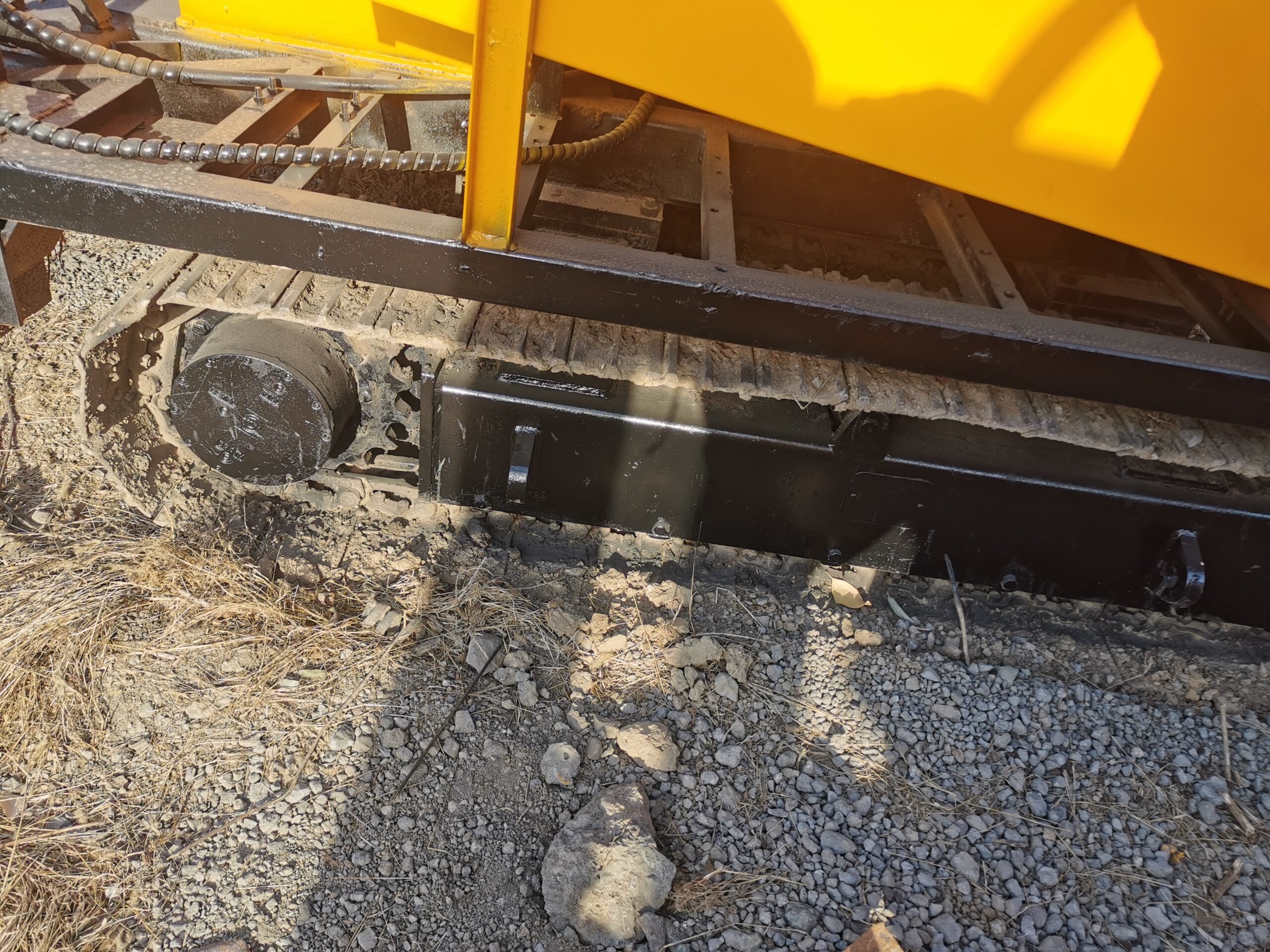

Steel Track

Max Drilling Depth:500 m

Drilling Diameter: 105-400 mm

Air Pressure: 1.2-3.5 Mpa

Air Consumption :16-55 m³/min

Drill Pipe Length: 6 m

Drill Pipe Diameter: 102 mm

Axial Pressure :6 T

Lifting Force :28 T

Fast Lifting Speed: 29 m/min

Fast Feeding Speed: 48 m/min

Max Rotary Torque :10000/5000 Nm

Max Rotary Speed: 75/150 r/min

Big Auxiliary Winch Lifting Force – Small Auxiliary Winch Lifting Force: 1.5 T

Jacks Stroke: 1.6 m

Drilling Efficiency :10-35 m/h

Feature:

1. High work efficiency, low construction cost, reliable work, and easy operation.

2. Early domestic manufacturers of tracked water well drilling rigs have developed and manufactured them, accounting for a high proportion of the domestic water well drilling rig market.

3. The product models cover a full range of models from 200 to 2400, with stable performance and good market reputation in the industry.

4. The hydraulic system design is excellent, and the hydraulic pipeline layout is reasonable, which can be 1-2 hours/100 meters ahead of other brands of drilling rigs.

5. The excellent hydraulic system and heat dissipation system ensure the consistent work efficiency of the drilling rig throughout the four seasons.

6. The track shoes of the tracks used on the chassis are all forged, with stronger overall climbing and gripping abilities, and are not easily deformed.

7. We have a professional design and R&D team, always maintaining cutting-edge technical reserves, ensuring timely product updates and upgrades.

8. The new generation of telescopic cleaning frame series products use imported steel for the sliding frame, ensuring that the drilling rig will experience shaking and gaps in the sliding frame after working for a long time

Application Industry:

water wells, rescue, dewatering wells, large-diameter blasting holes in mines (instead of rotary drills), exploration sampling wells, hydropower wells, highway wells, coal wells, petroleum wells, natural gas wells, coalbed methane wells, municipal wells, monitoring wells, ground source heat pump holes, anchoring, and non excavation.
