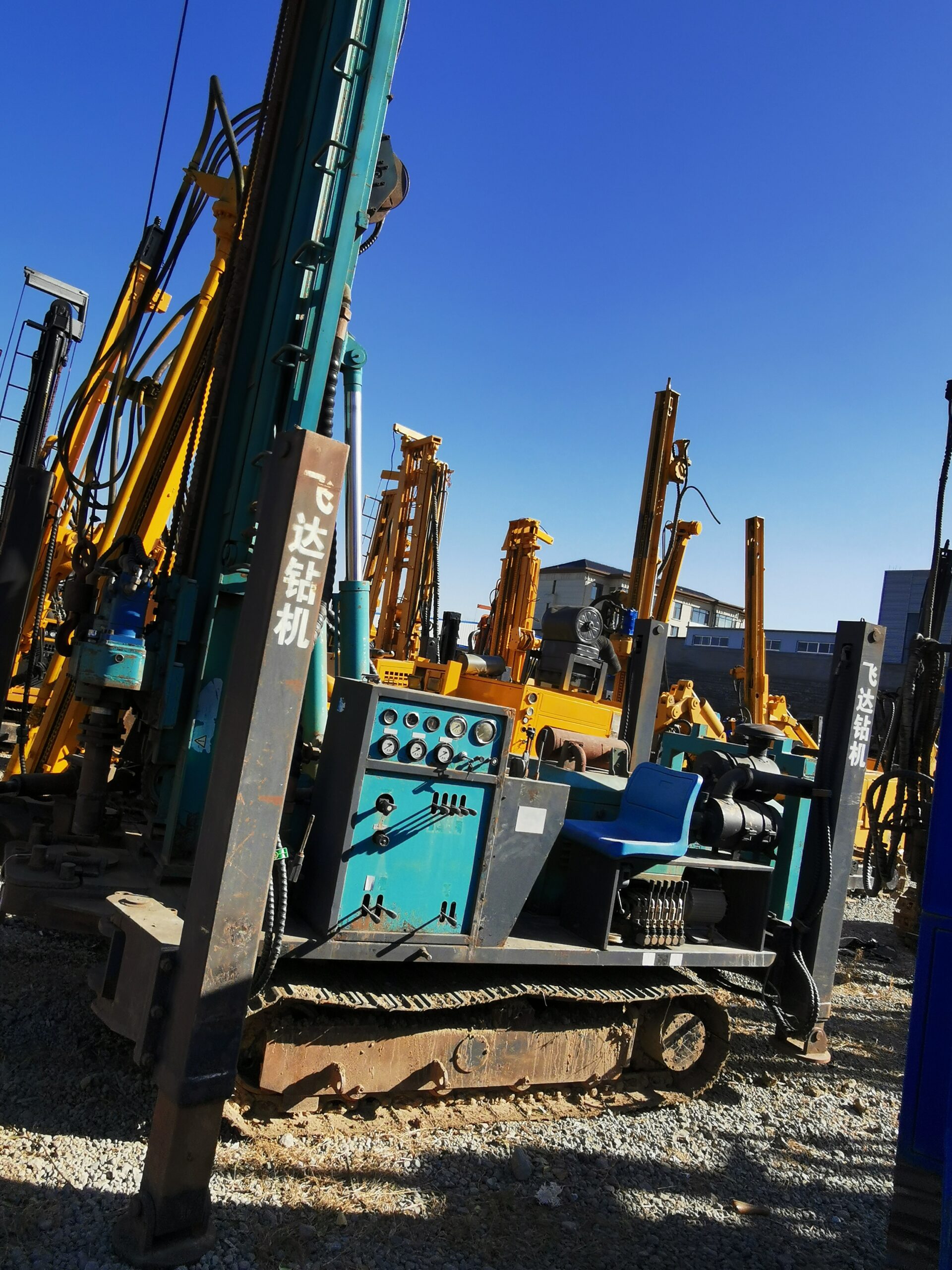

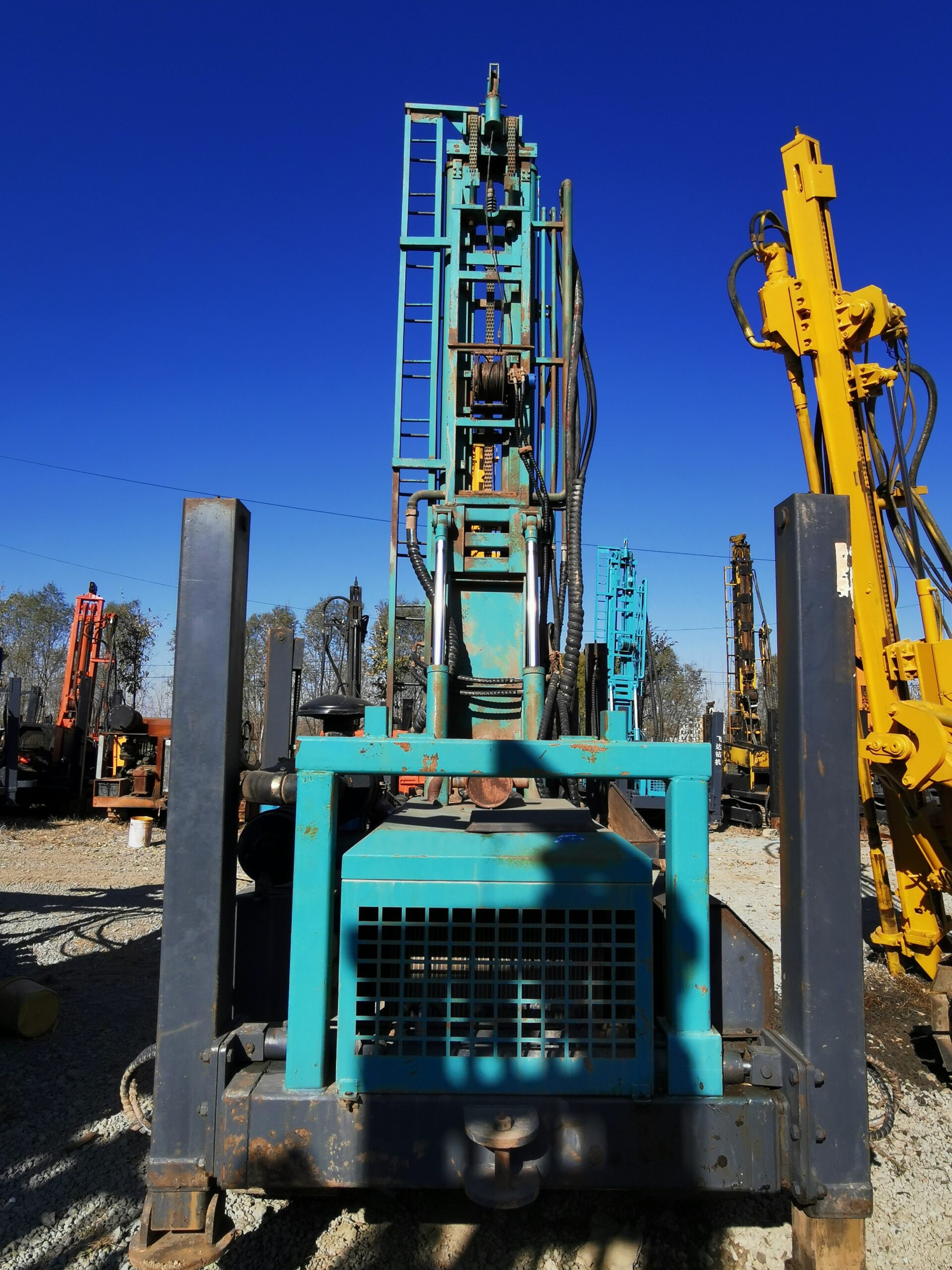

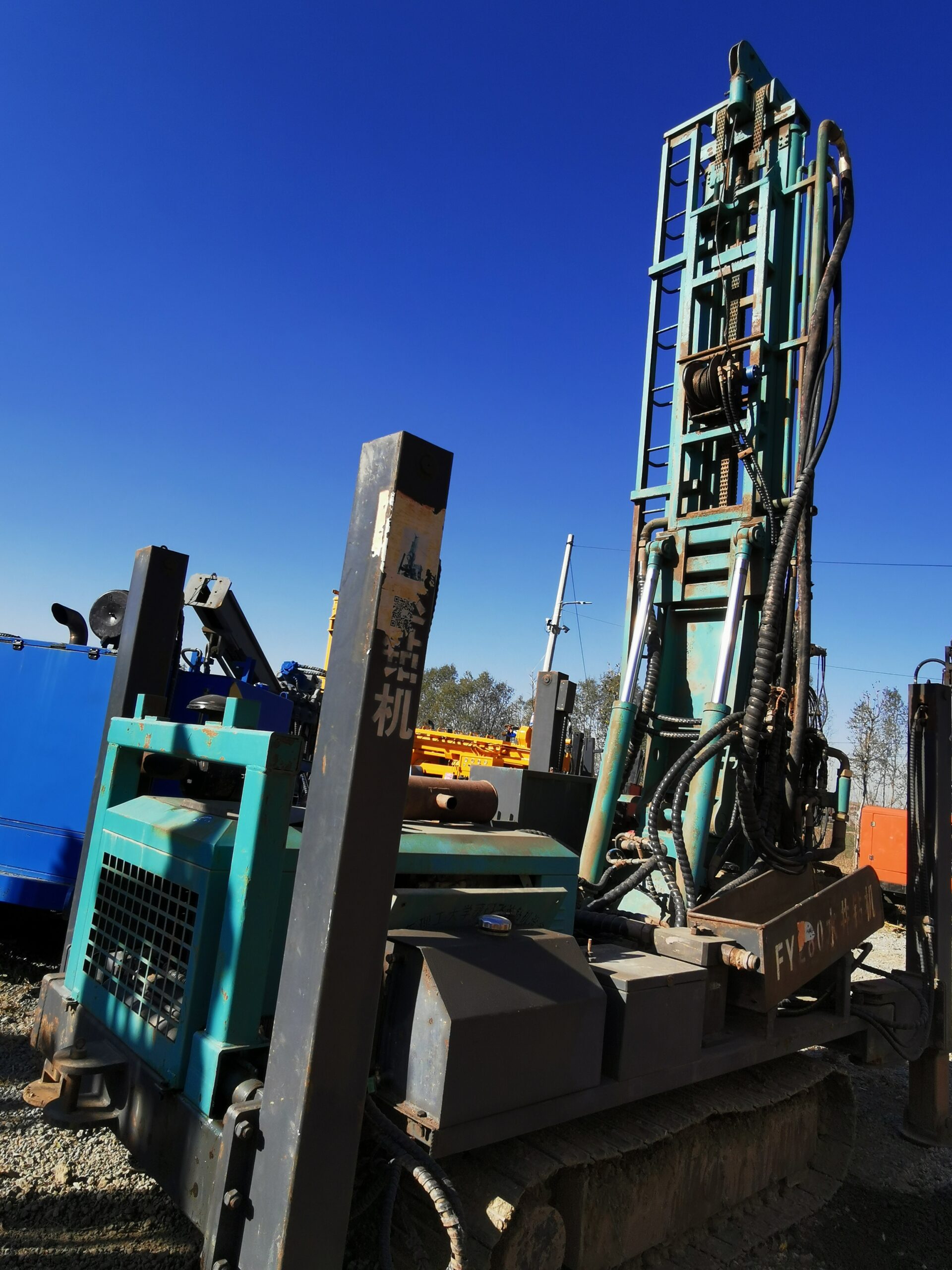

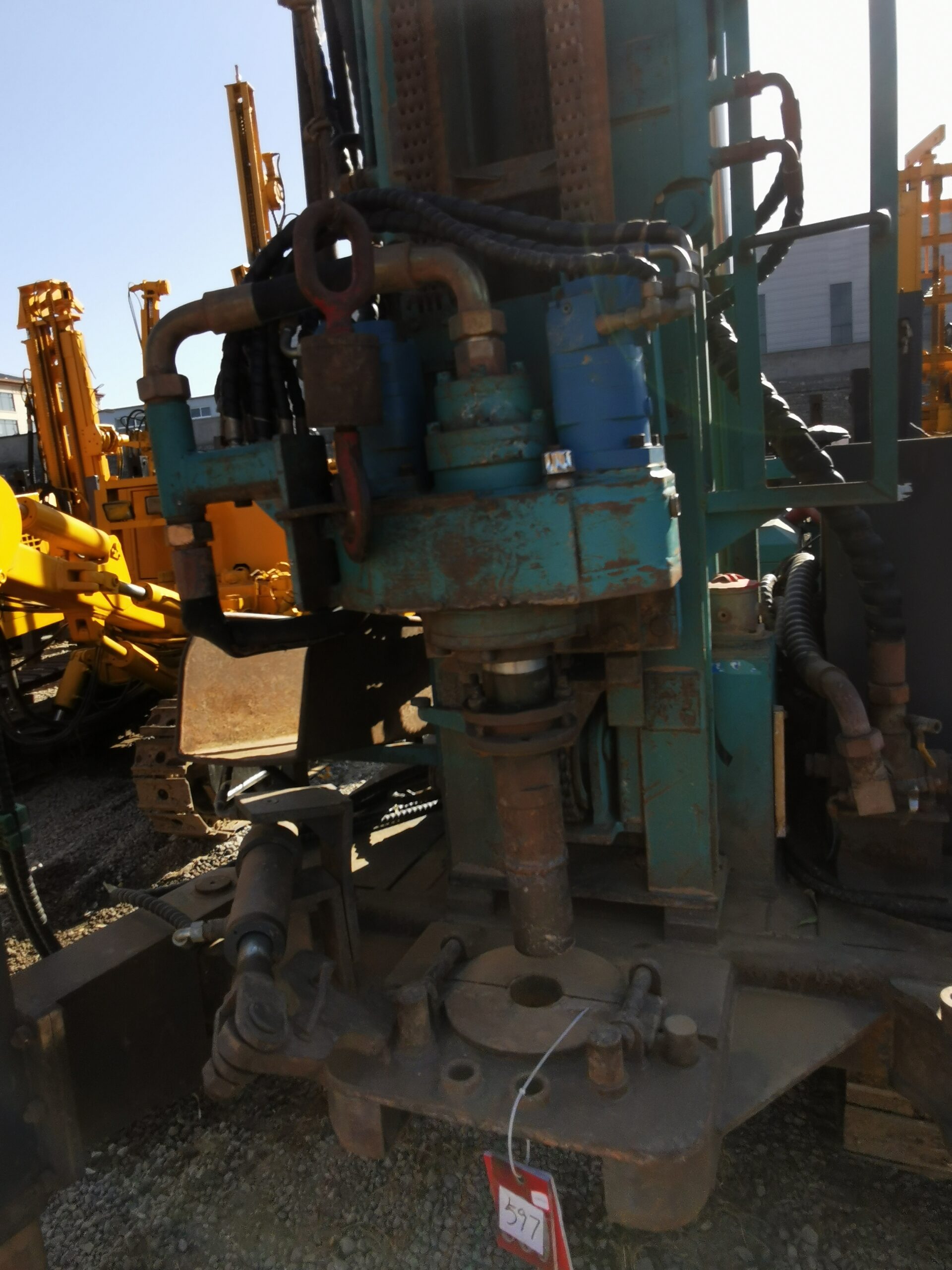

ABT271 FeiDaFYX280 Used Water Well Drilling Machine

描述

Product Name:280m water well drilling machine on sale

Year:2022

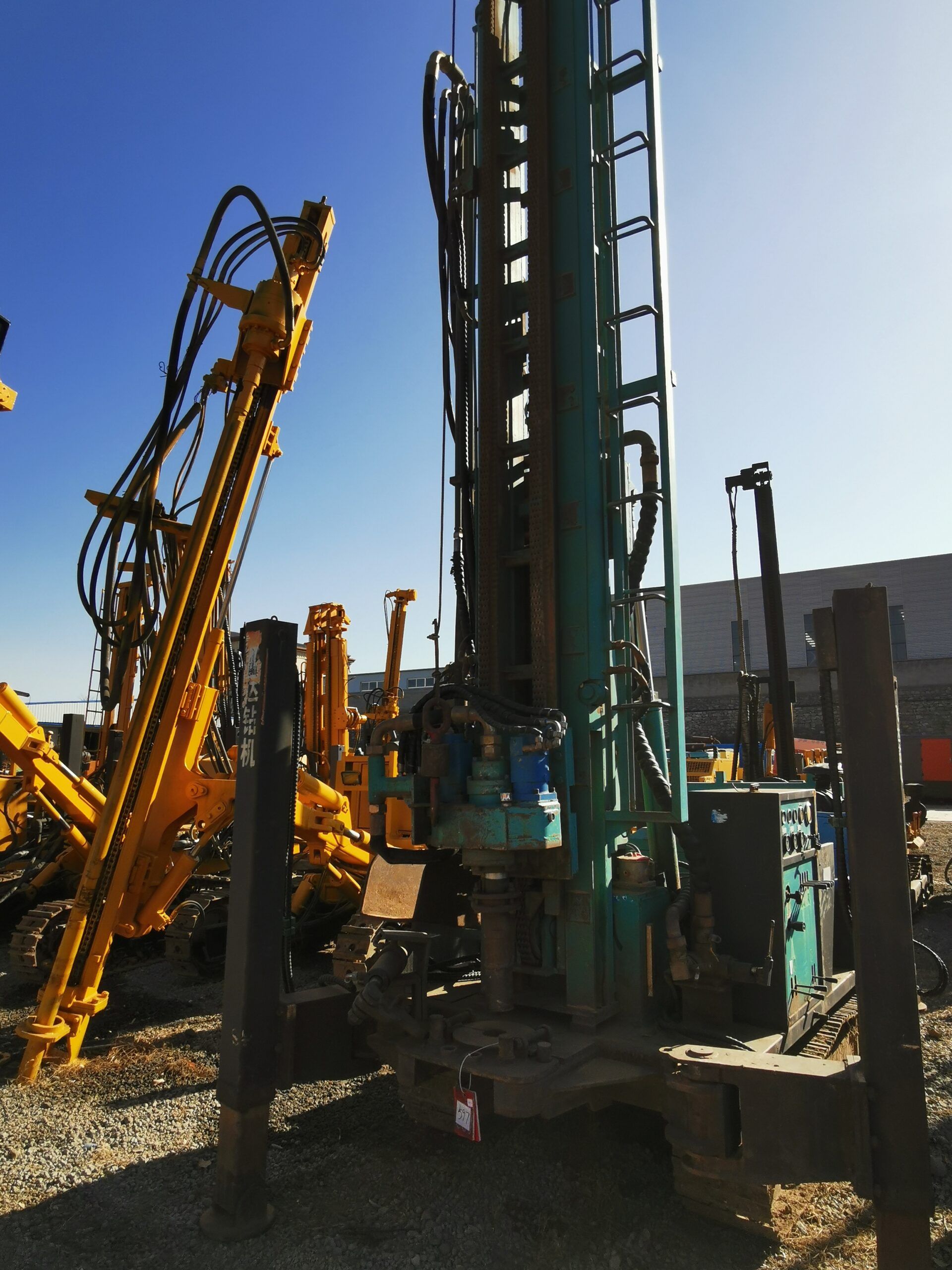

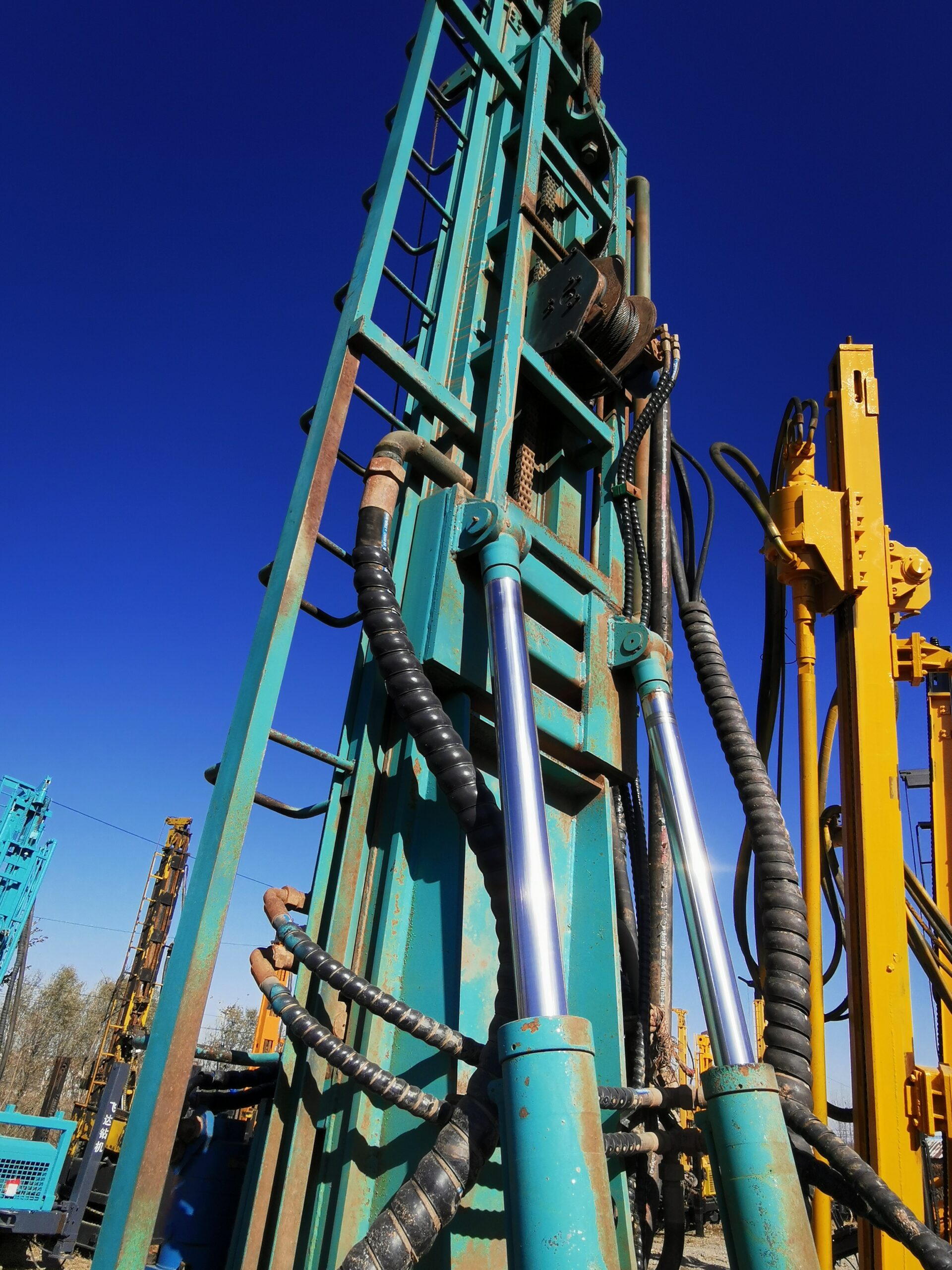

6.6m High Tower

Steel Track

Walking Speed:0-2.5km/h

Power Parameters:65kW/2400rpm

Ground Clearance:250mm

Climbing Ability 30°

Drilling Depth:260m

Working Wind Pressure:1.05-2.46MPa

Total Gas Consumption: 16~35m3/min

Drill Pipe Diameter:76/89/102 mm

Drill Pipe Length:3000mm

Drilling (drill bit) Diameter:115-350mm

Propulsion Force:8T

Lifting Force:16T

Rotator Speed: Slow speed:40 rpm

Fast Speed:160 rpm

Rotating Torque:5000N · m

Feature:

1. Compact structure, easy to handle and operate.

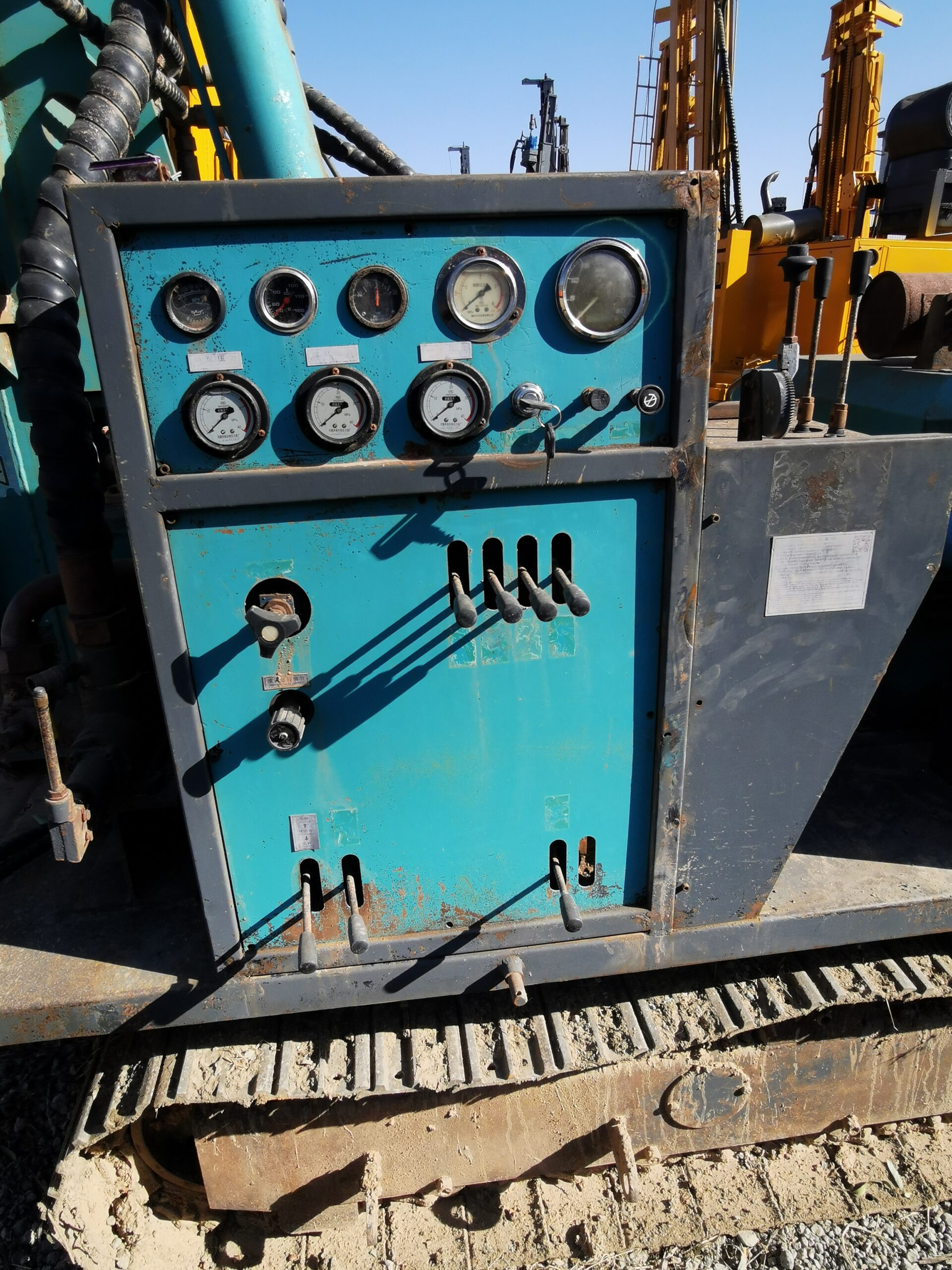

2. Easy to operate, equipped with a user-friendly operation control system.

3. High drilling efficiency, using efficient hydraulic and power systems to quickly complete drilling operations.

4. Standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, and low failure rate.

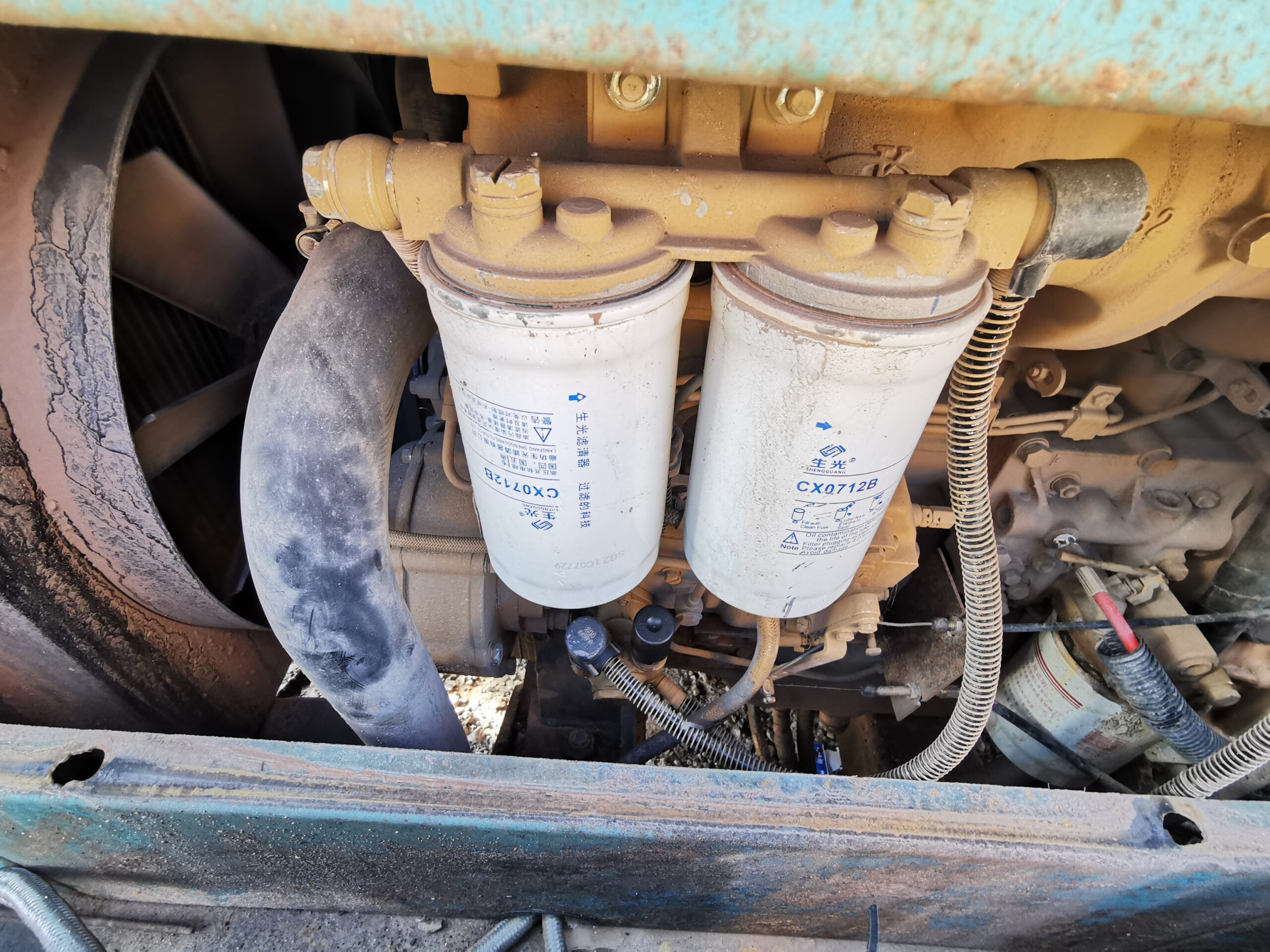

5. The engine uses Guangxi Yuchai 65Kw turbocharged engine

6. The walking device adopts the American Pomke hydraulic oil pump, which has a long durability life of

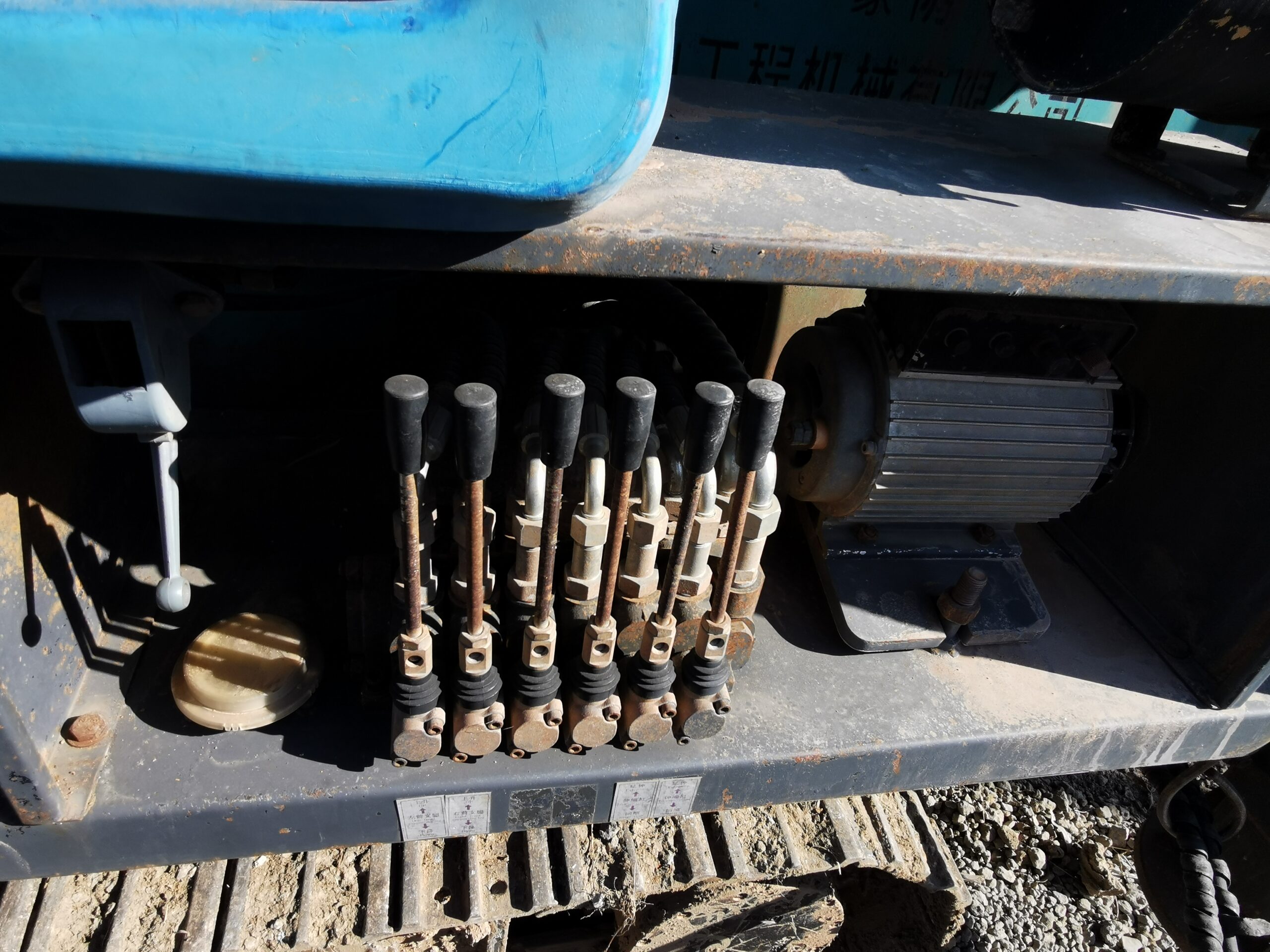

7. Adopting a parallel transmission design, the oil pump is separated from each other, providing sufficient and reasonable power distribution. The hydraulic system is uniquely designed, and maintenance is simple and cost-effective.

8. The drilling rig chassis adopts a professional excavator chassis, which is durable, has a large load-bearing capacity, a wide chain plate, and has little damage to hard road surfaces.

9. Adopting a designed composite boom, the boom has a small volume, long stroke, dual oil cylinder lifting, and a large lifting tonnage

Application Industry:

water wells, rescue, dewatering wells, large-diameter blasting holes in mines (instead of rotary drills), exploration sampling wells, hydropower wells, highway wells, coal wells, petroleum wells, natural gas wells, coalbed methane wells, municipal wells, monitoring wells, ground source heat pump holes, anchoring, and non excavation.
