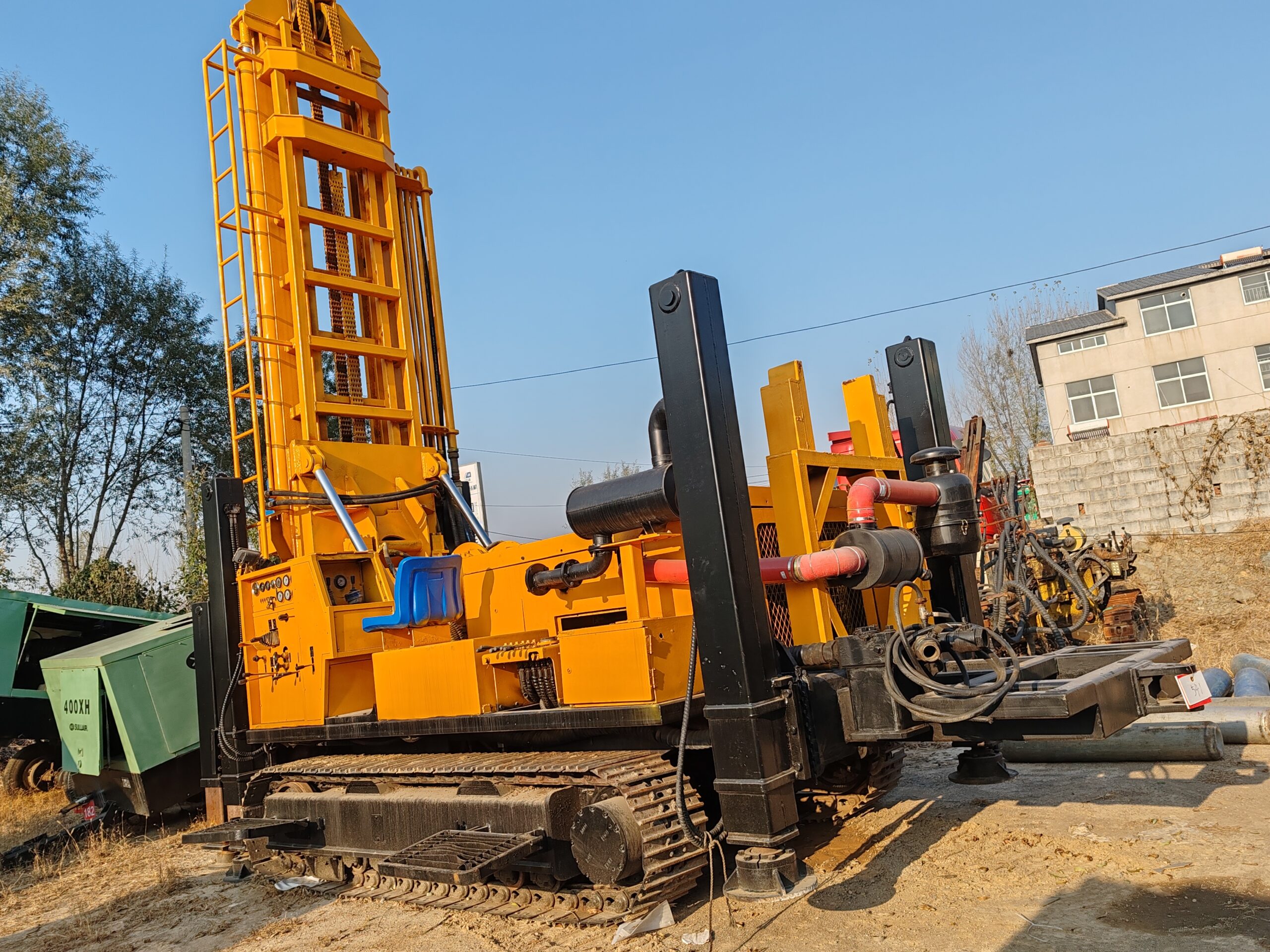

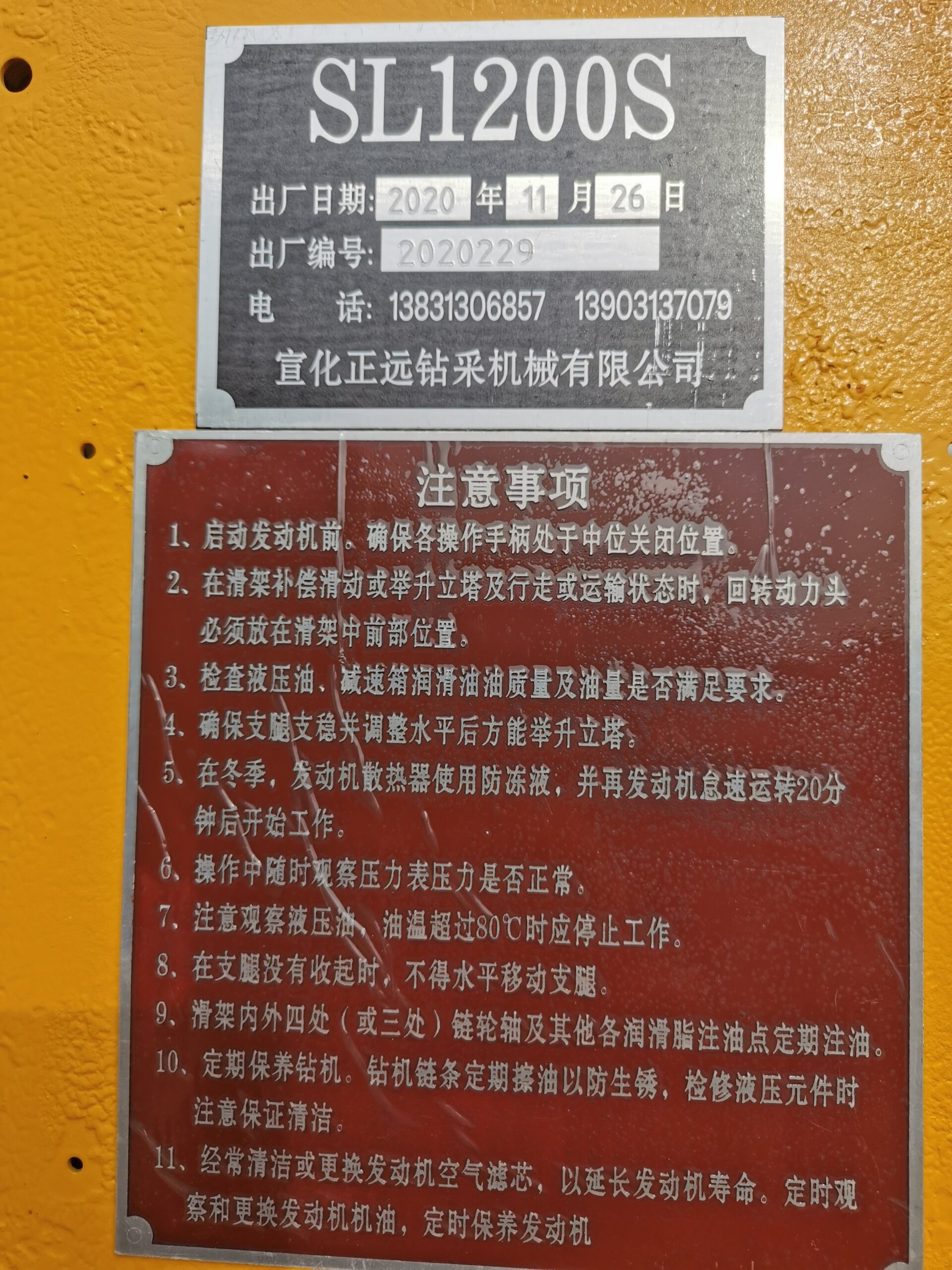

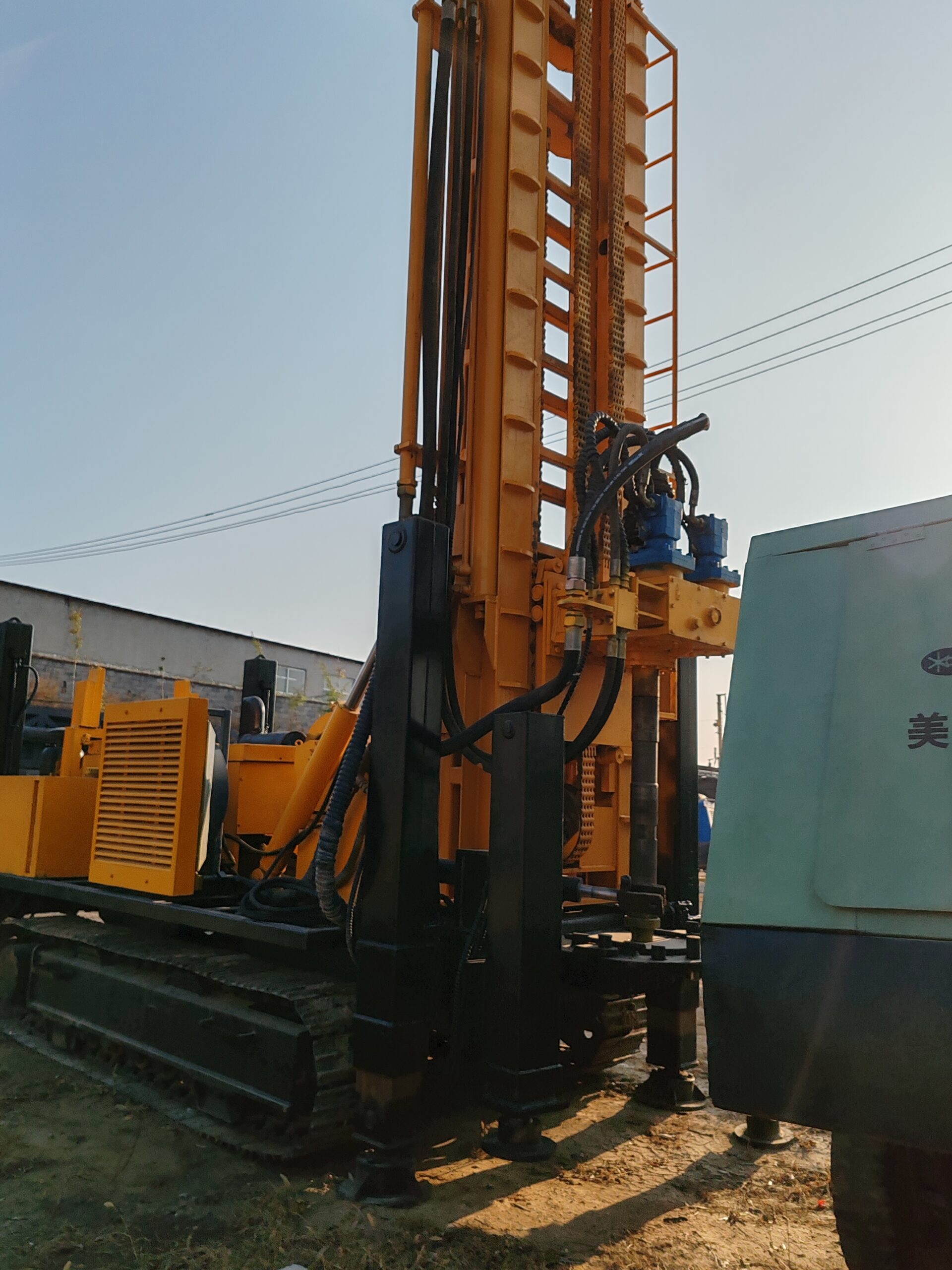

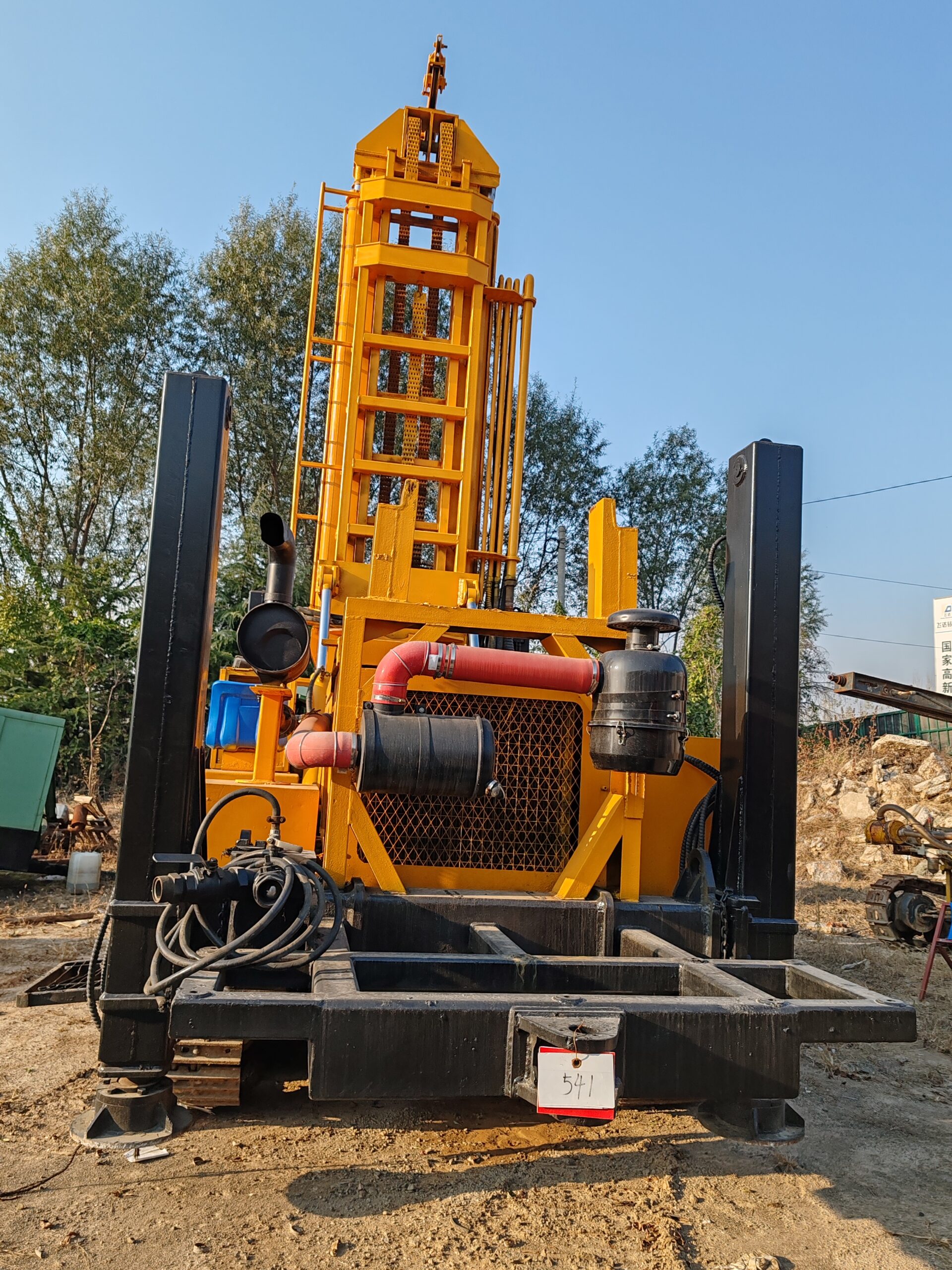

ABT252 ZhengYuanSL1200 Used Water Well Drilling Machine

描述

Product Name:1200m water well drilling machine on sale

Year:2020

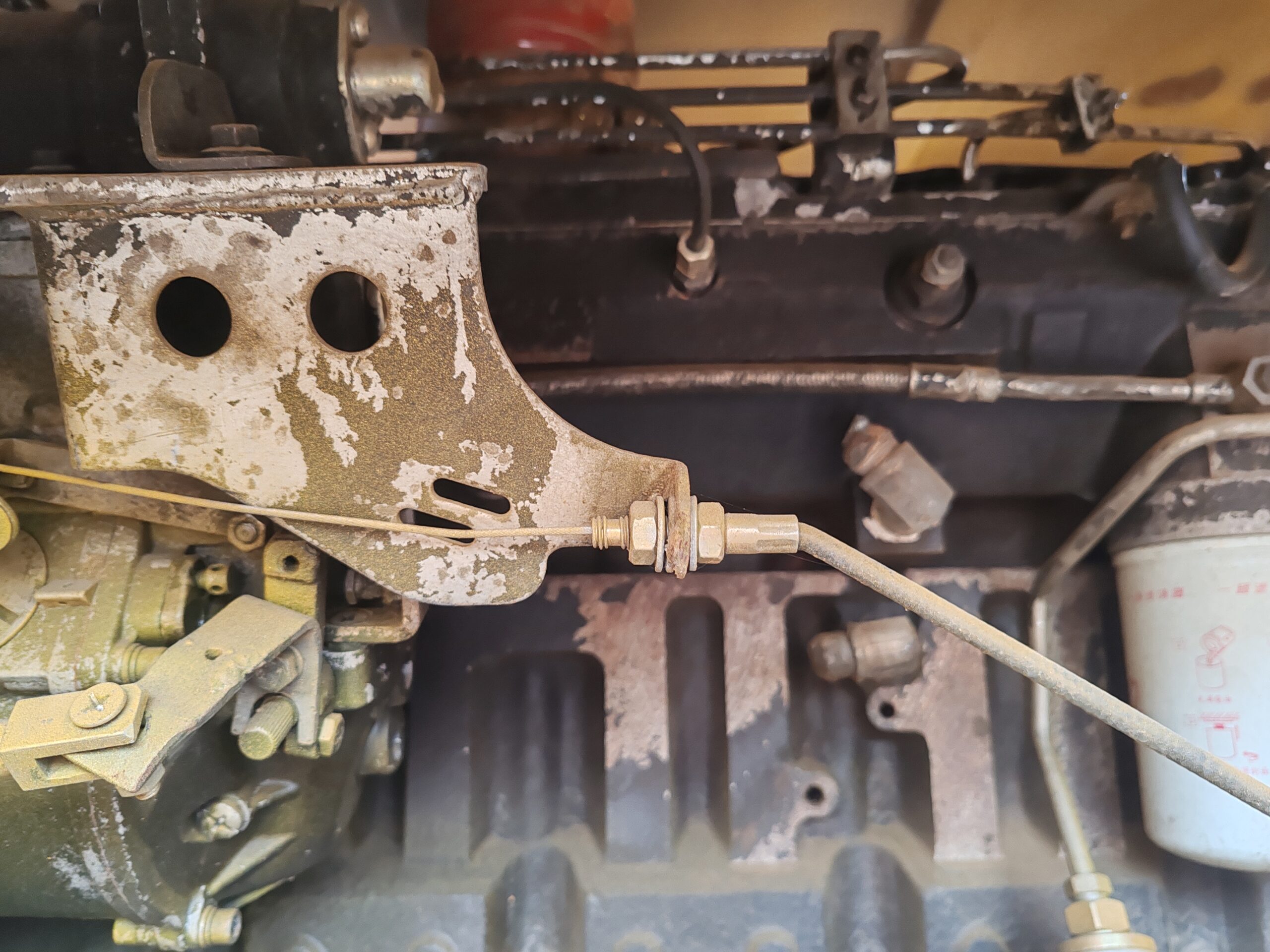

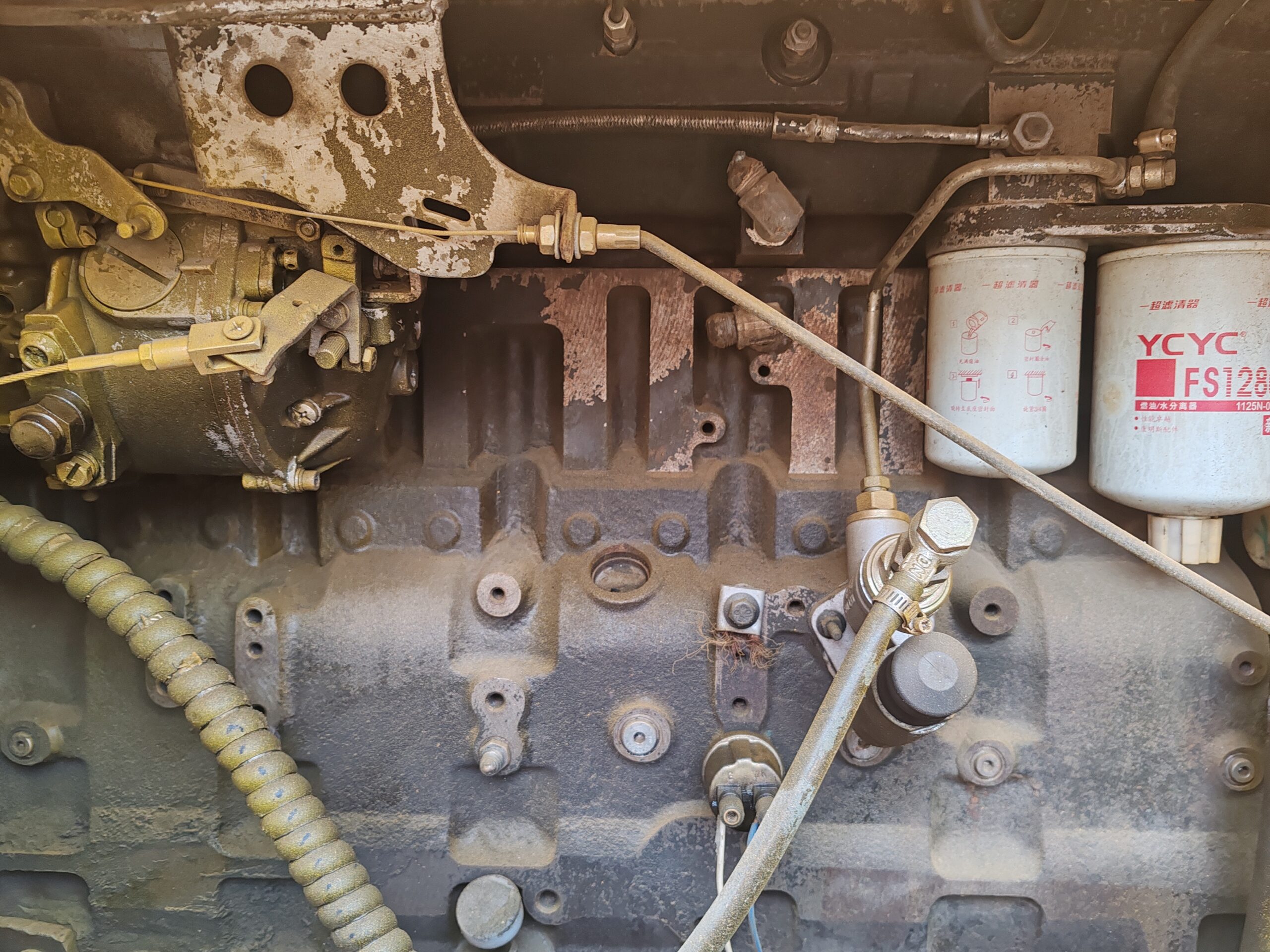

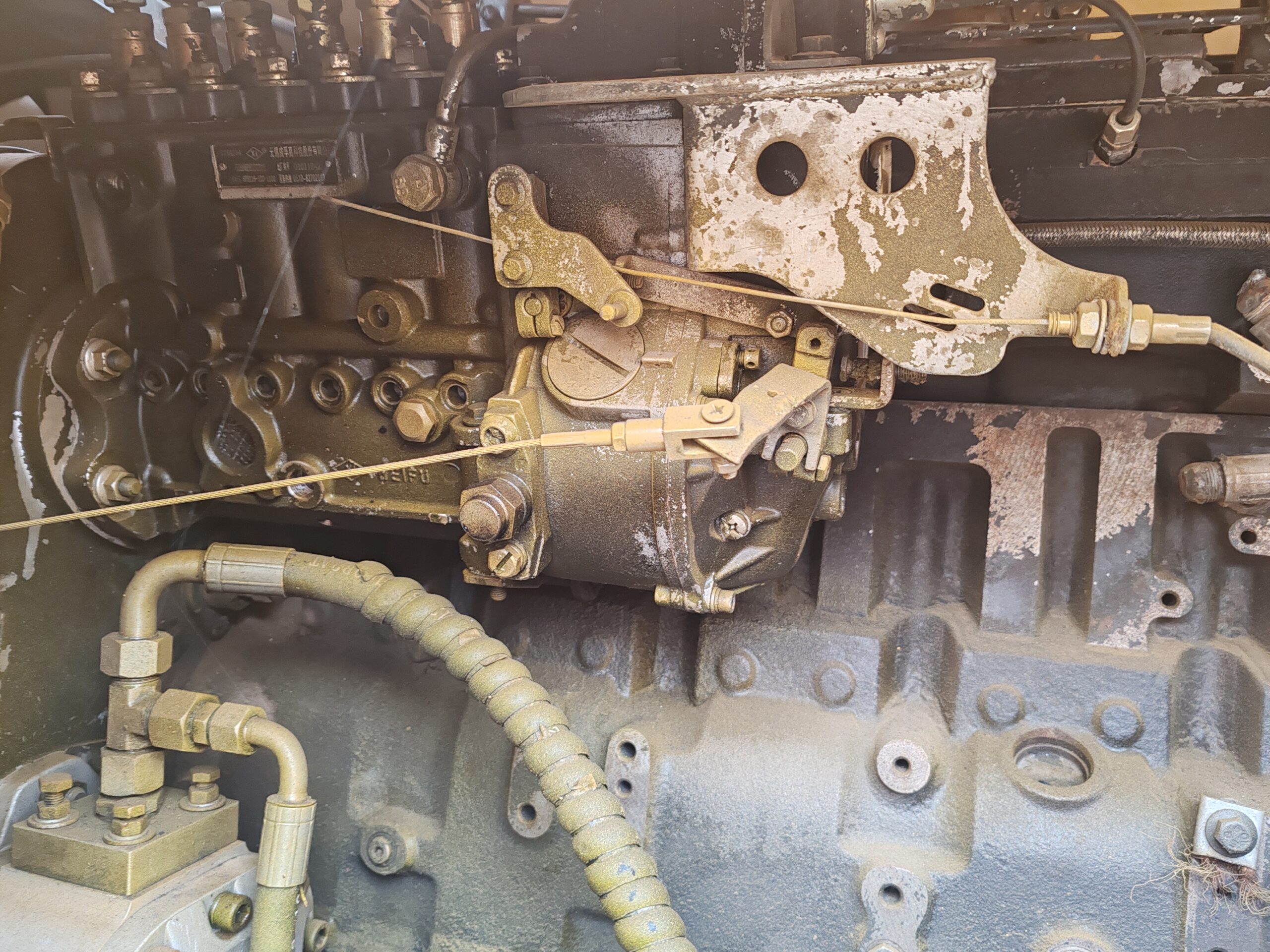

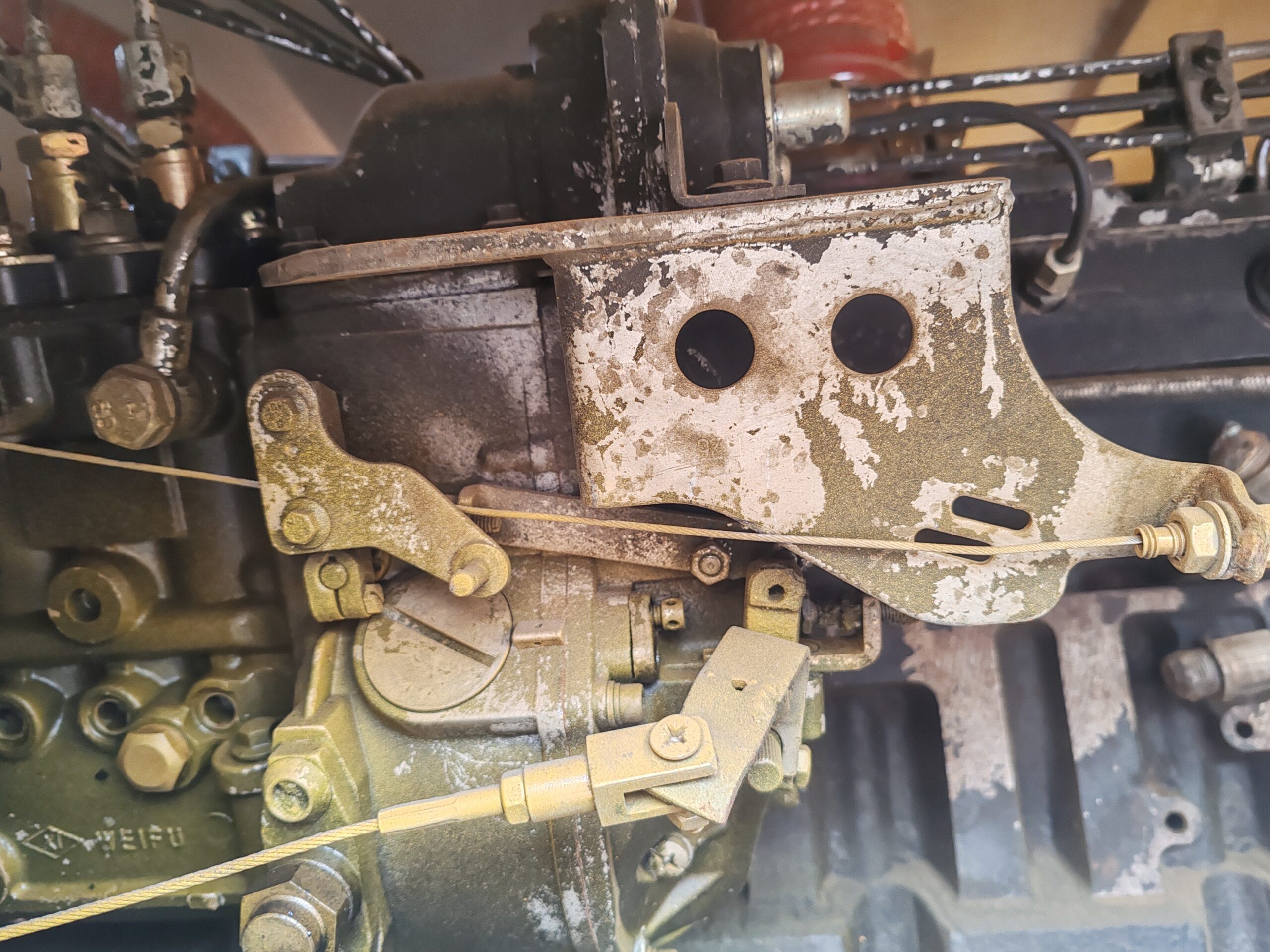

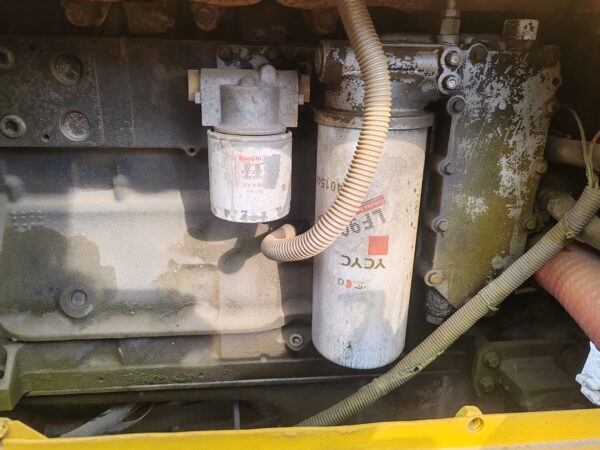

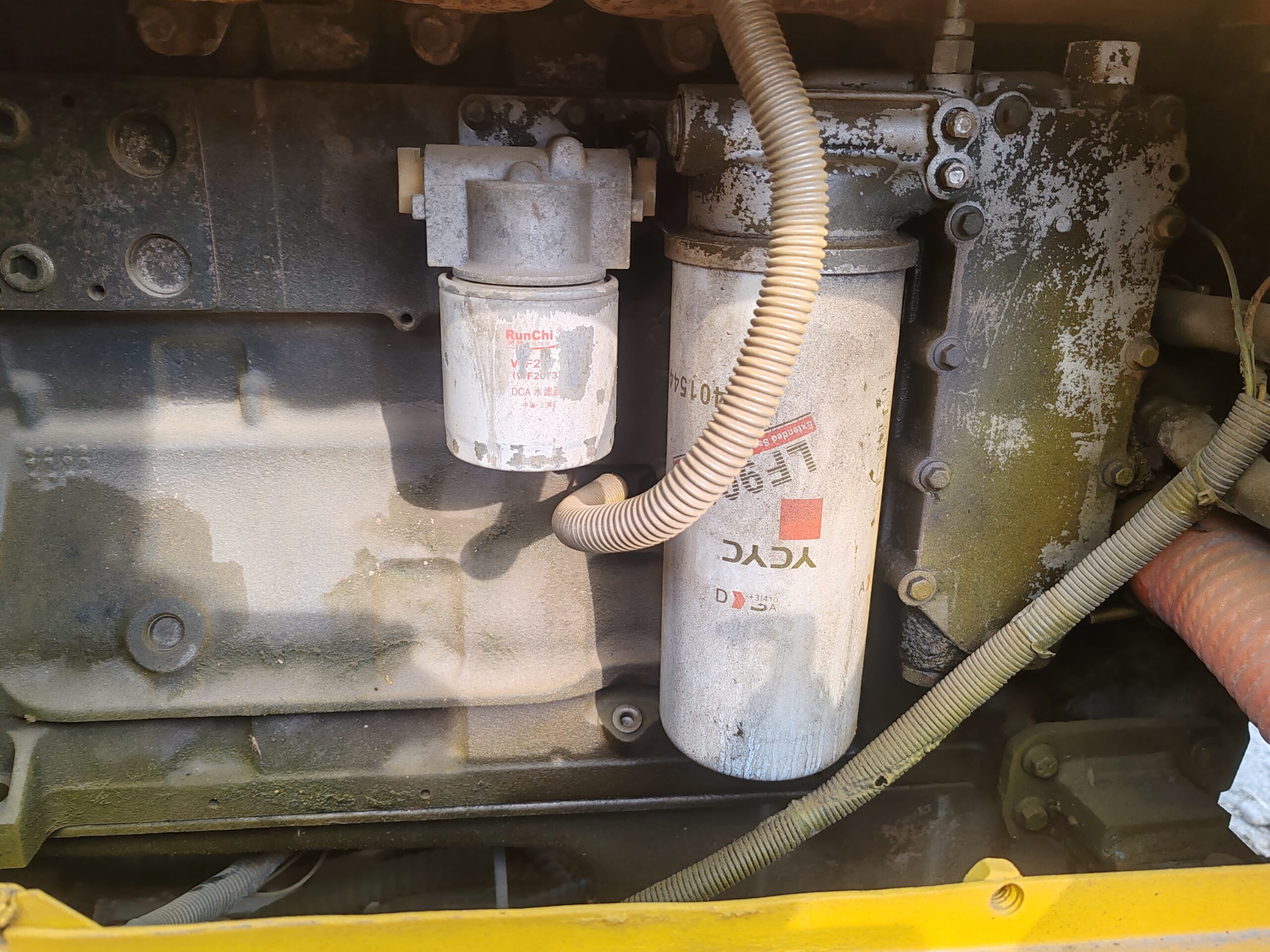

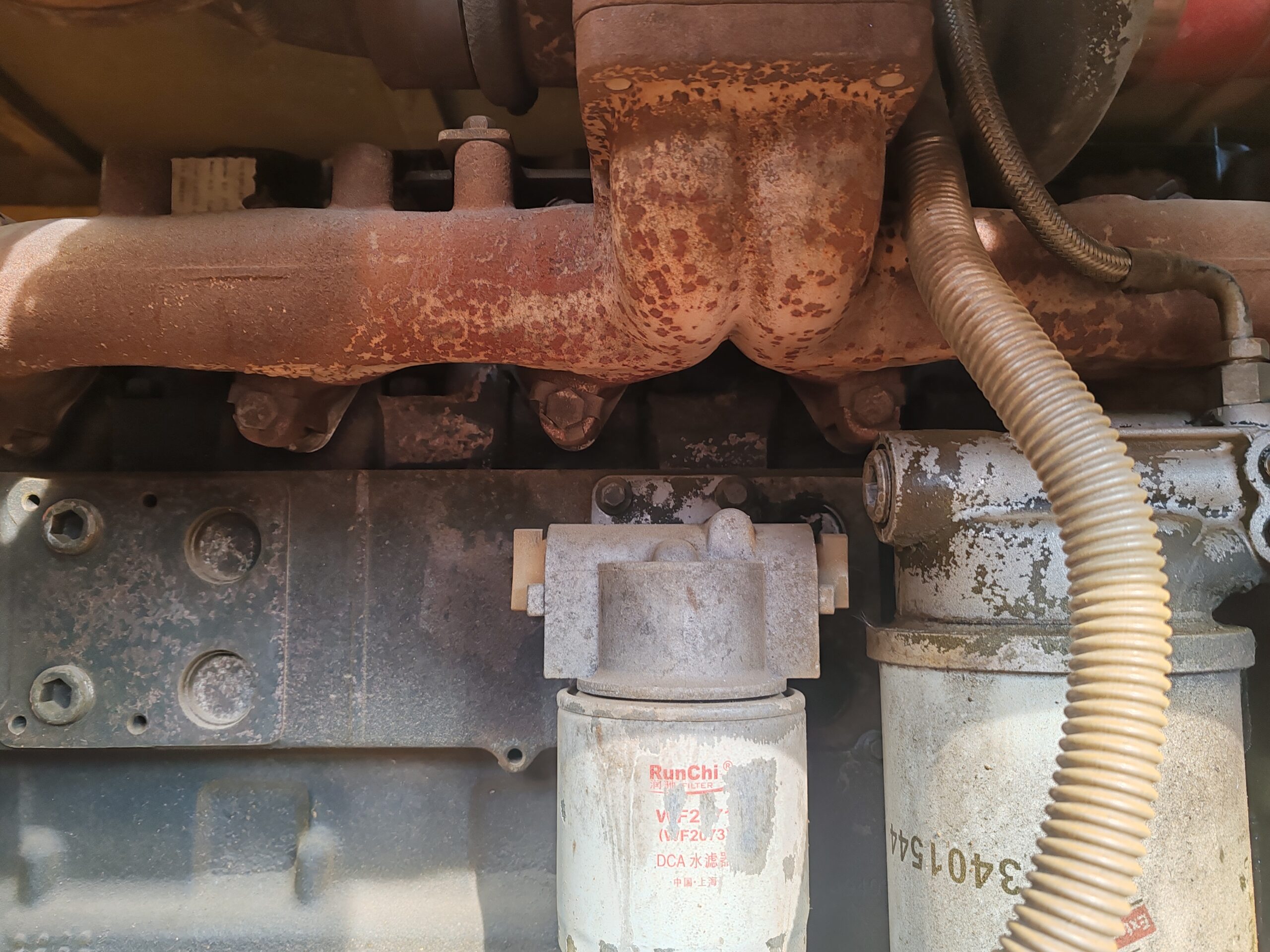

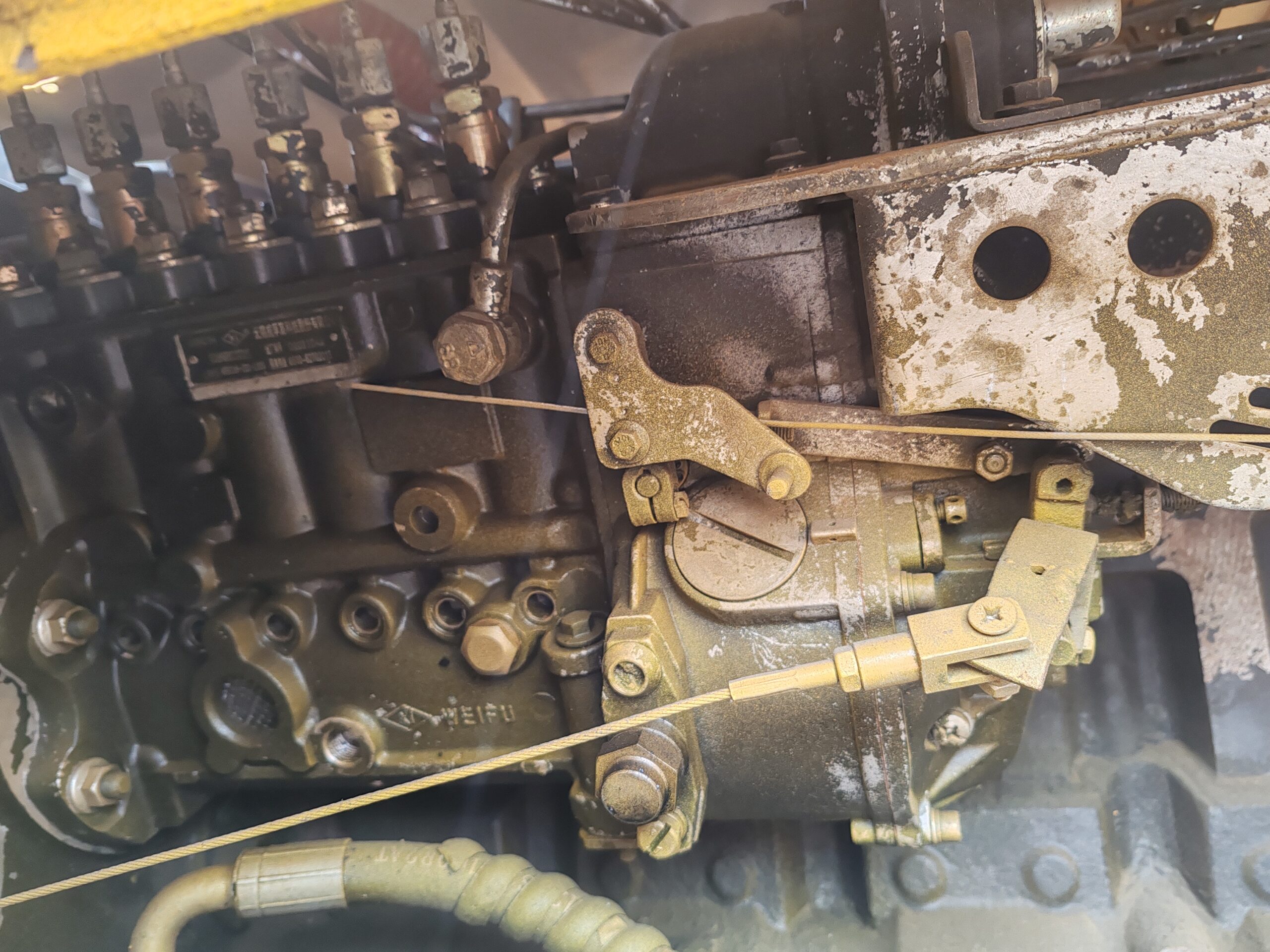

Cummins Engine 195KW

6.6m High Tower

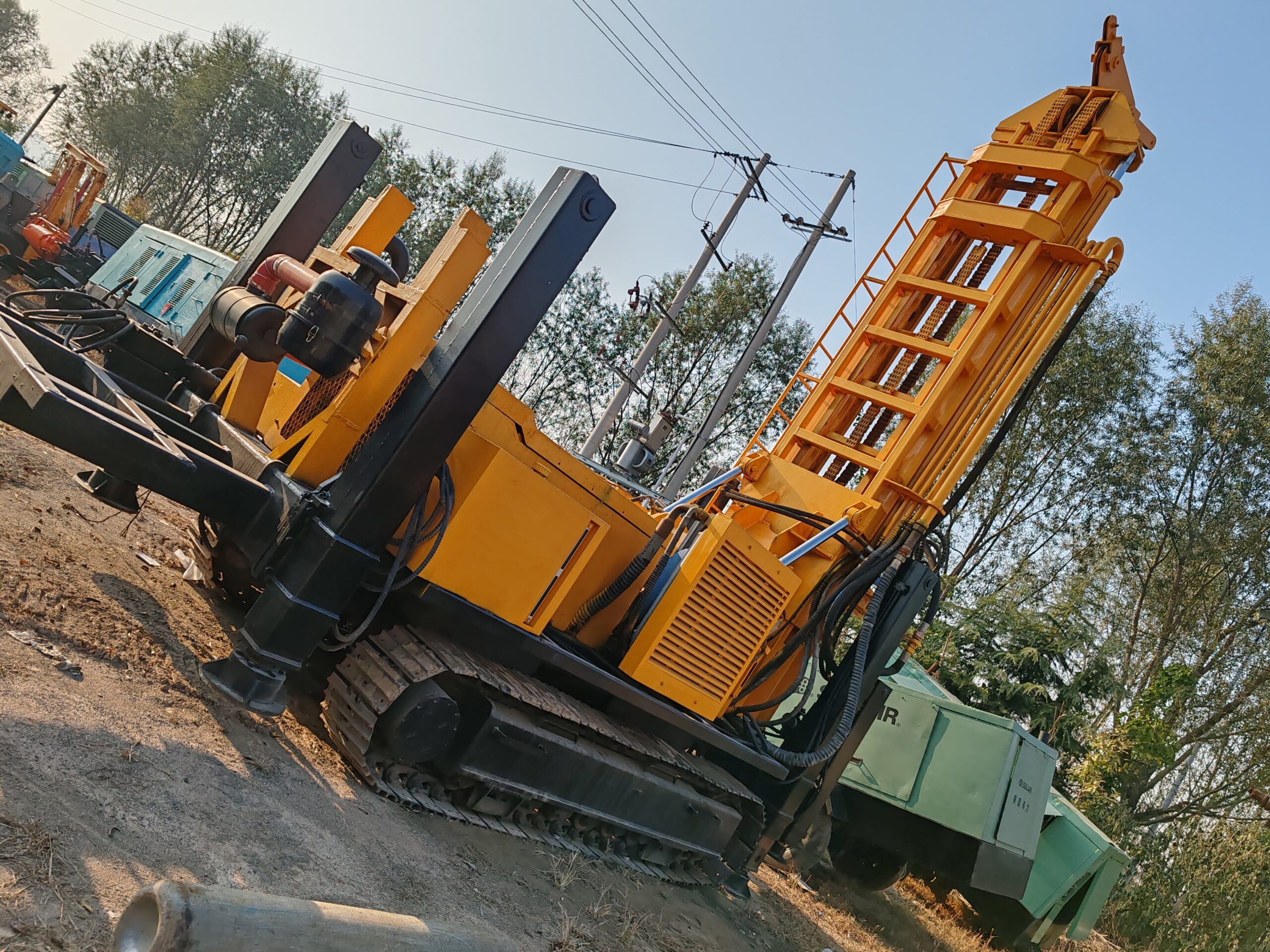

Steel Track

Drilling depth： 200m

Drill hole diameter: 75mm

Drill pipe diameter : 42/50mm

Large torque: 1200N · m

Rotational speed: 80-280r/min

Feed force : 36kN

Pulling force: 52 kN

Borehole inclination angle: -90~+90º

Motor power: 22kW

Hydraulic oil thickened on 10 working media

Feature:

1.The hydraulic power head structure consists of three main parts: the main engine, pump station, and operating platform.

2.Good disintegration, convenient demolition, and flexible handling;

3.The rotator is a through-hole structure, and the length of the drill pipe is not limited by the size of the drilling rig structure;

4.Mechanical unscrewing of drilling tools allows for linkage operation between chuck, gripper, and oil cylinder, as well as between rotator and gripper, with high automation, high work efficiency, easy operation, and low labor intensity for workers.

5.Wide range of speed and torque adjustment, strong process adaptability;

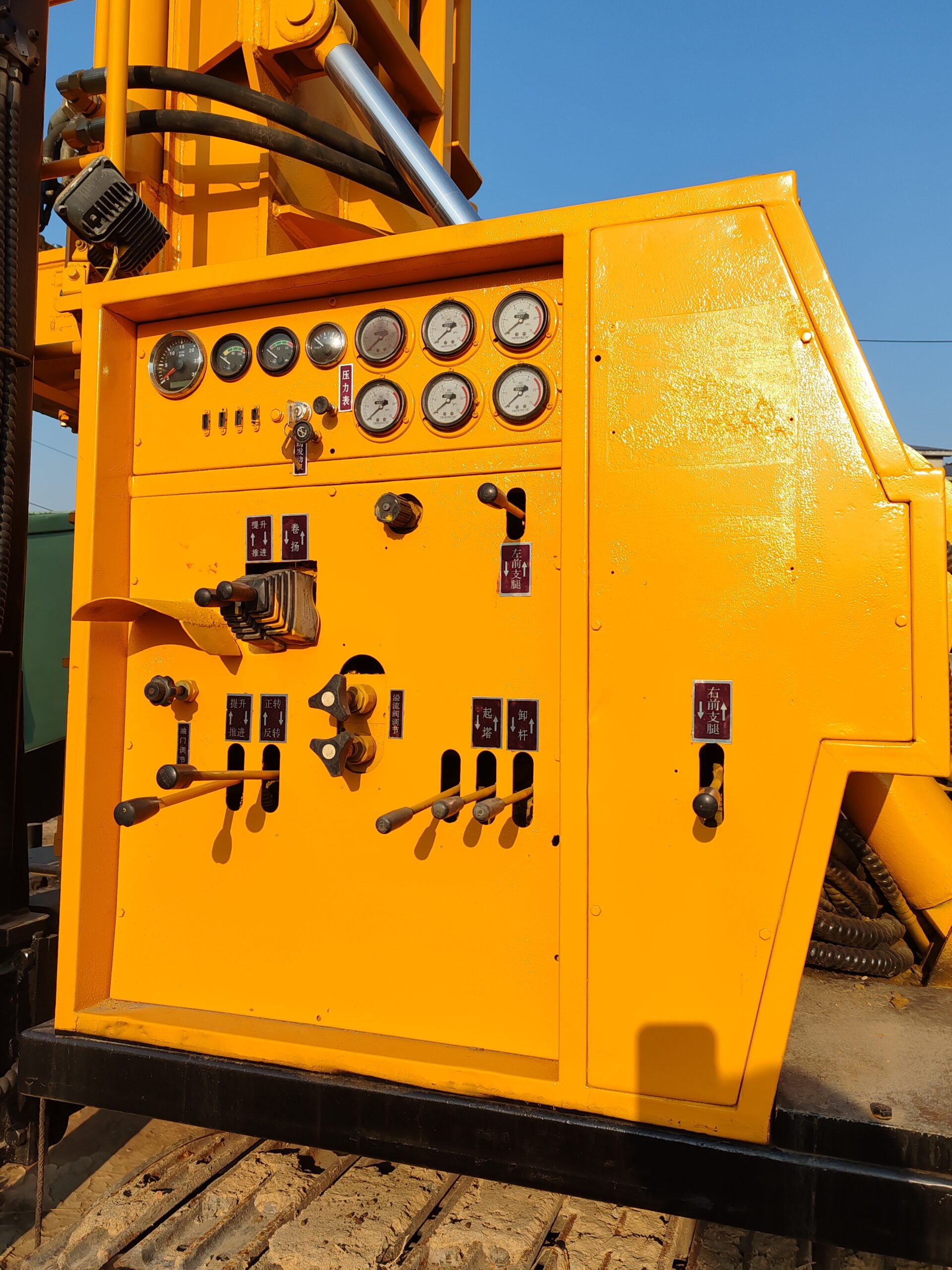

6.Centralized operation on the control console. Personnel can stay away from the orifice, which is beneficial for personal safety.

Application Industrty:

water wells, rescue, dewatering wells, large-diameter blasting holes in mines (instead of rotary drills), exploration sampling wells, hydropower wells, highway wells, coal wells, petroleum wells, natural gas wells, coalbed methane wells, municipal wells, monitoring wells, ground source heat pump holes, anchoring, and non excavation.
