ABT223 ZhengYuanSL400S Water Well Drilling Rigs

描述

Drilling diameter: 140-325mm

Drilling depth: up to 350m

Drilling angle: 90 °

Drill pipe diameter: 89/102mm

One thrust length: 6600mm

Lifting force: 24t

Walking speed: 2.5km/h

Climbing ability: 30 °

Working pressure: 1.7-3.3Mpa

Gas consumption: 17-35m ³/ Min1 2

Host power: 85kw

Speed: 55-115rpm

Feature:

1. High work efficiency, low construction cost, reliable work, and easy operation.

2. Early domestic manufacturers of tracked water well drilling rigs have developed and manufactured them, accounting for a high proportion of the domestic water well drilling rig market.

3. The product models cover a full range of models from 200 to 2400, with stable performance and good market reputation in the industry.

4. The hydraulic system design is excellent, and the hydraulic pipeline layout is reasonable, which can be 1-2 hours/100 meters ahead of other brands of drilling rigs.

5. The excellent hydraulic system and heat dissipation system ensure the consistent work efficiency of the drilling rig throughout the four seasons.

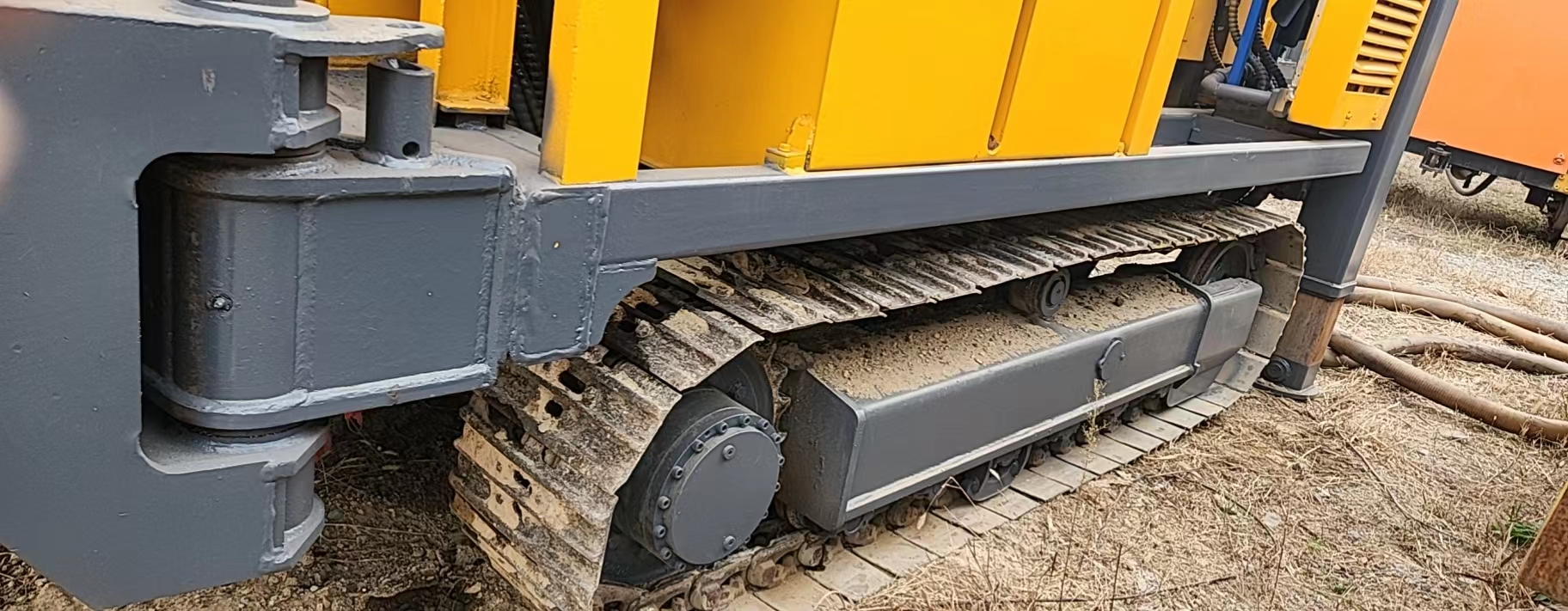

6. The track shoes of the tracks used on the chassis are all forged, with stronger overall climbing and gripping abilities, and are not easily deformed.

7. We have a professional design and R&D team, always maintaining cutting-edge technical reserves, ensuring timely product updates and upgrades.

8. The new generation of telescopic cleaning frame series products use imported steel for the sliding frame, ensuring that the drilling rig will experience shaking and gaps in the sliding frame after working for a long time.

Application Industry:

water wells, rescue, dewatering wells, large-diameter blasting holes in mines (instead of rotary drills), exploration sampling wells, hydropower wells, highway wells, coal wells, petroleum wells, natural gas wells, coalbed methane wells, municipal wells, monitoring wells, ground source heat pump holes, anchoring, and non excavation.
