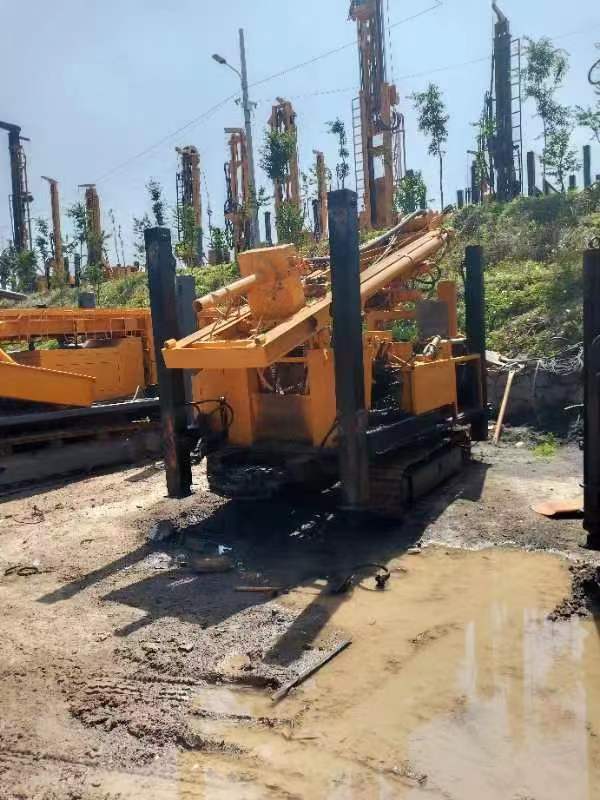

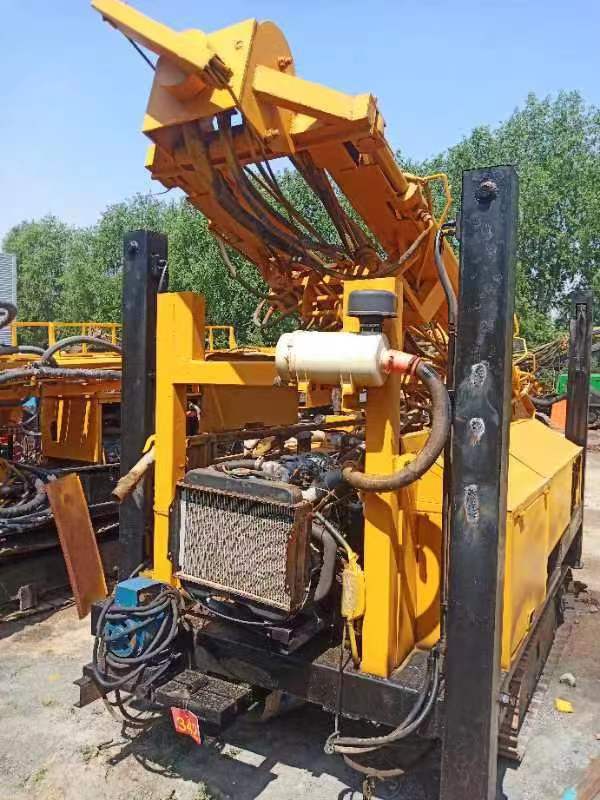

ABT115 HD400 Used Water Well Drilling Machine

描述

Product Name:400m water well drilling machine on sale

Year:2016

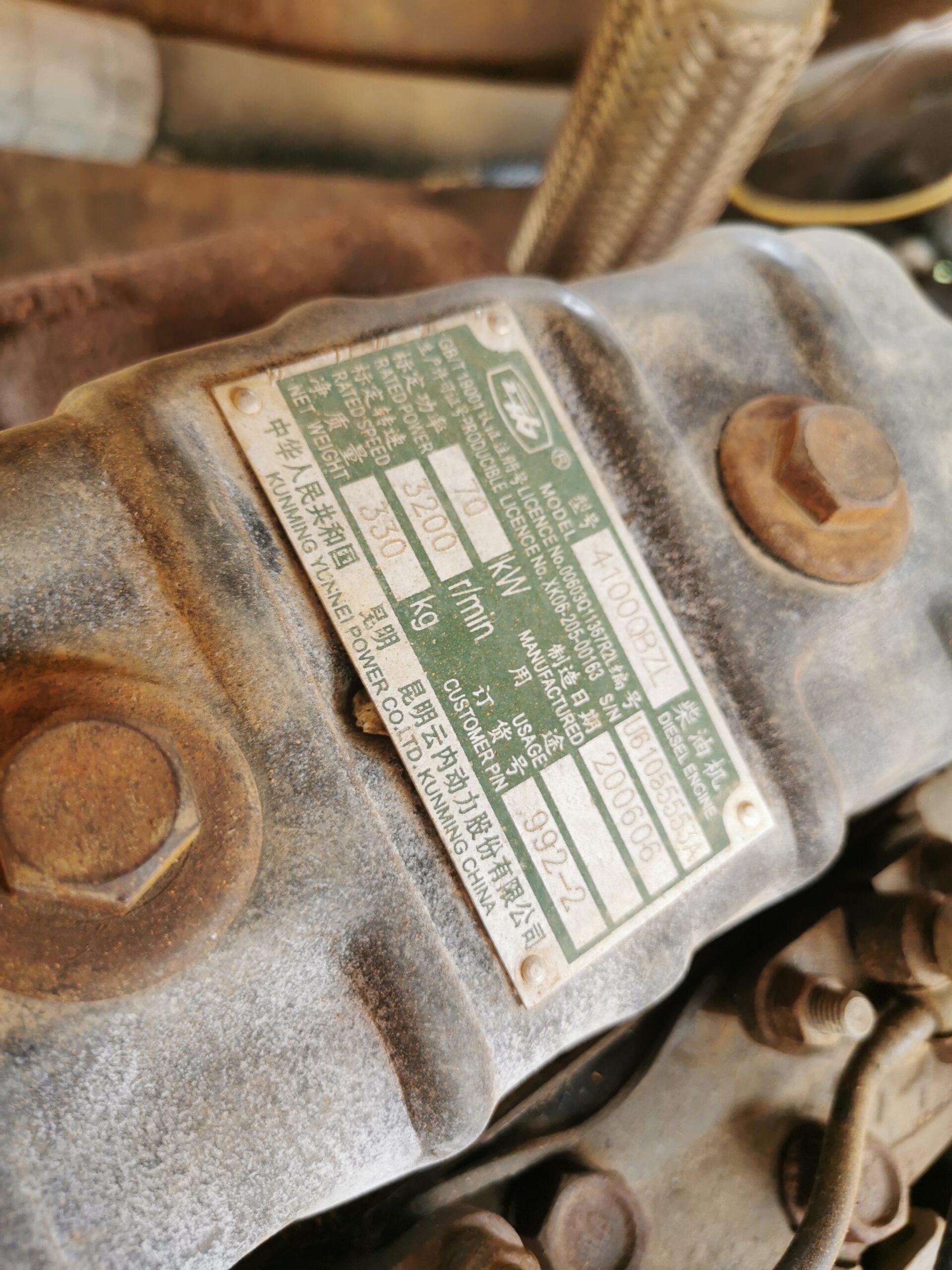

Engine:YuChai 92KW

3m High Tower

Steel Track

Drilling hole Diameter: 110-254mm

Drilling depth (m): 213

Working wind pressure (Mpa): 1.05-2.46

Total gas consumption (m ³/ Min) :16-30

Drill pipe length (m): 3

Drill pipe diameter (mm): 89

Applicable conditions: loose layer and bedrock

Equipped with impactors DH, DHD medium and high wind pressure series impactors

Feature:

1. It is used to drive the spindle rotation with a manual variable motor, with a wide range of stepless speed regulation and stable operation. Suitable for high-speed diamond drilling and low speed hard alloy drilling.

2. Adopting box type feeding frame, power head rotary drilling, oil cylinder pulling and feeding, cute to save bulkiness and indeed pulling.

3. Good disassembly performance, easy disassembly and relocation.

4. Compact structure, easy installation, capable of drilling holes in 0-360 degree directions.

5. The hydraulic transmission controls the chuck, gripper, and feed oil cylinder, making the pulling and feeding drilling tools interconnected and highly mechanized, greatly reducing the labor intensity of work.

6. Using a set of double gear oil pumps.

Application Industry:

Drilling water wells, monitoring wells, dewatering wells, rescue wells, gas layer mining, and other exploratory drilling projects.
