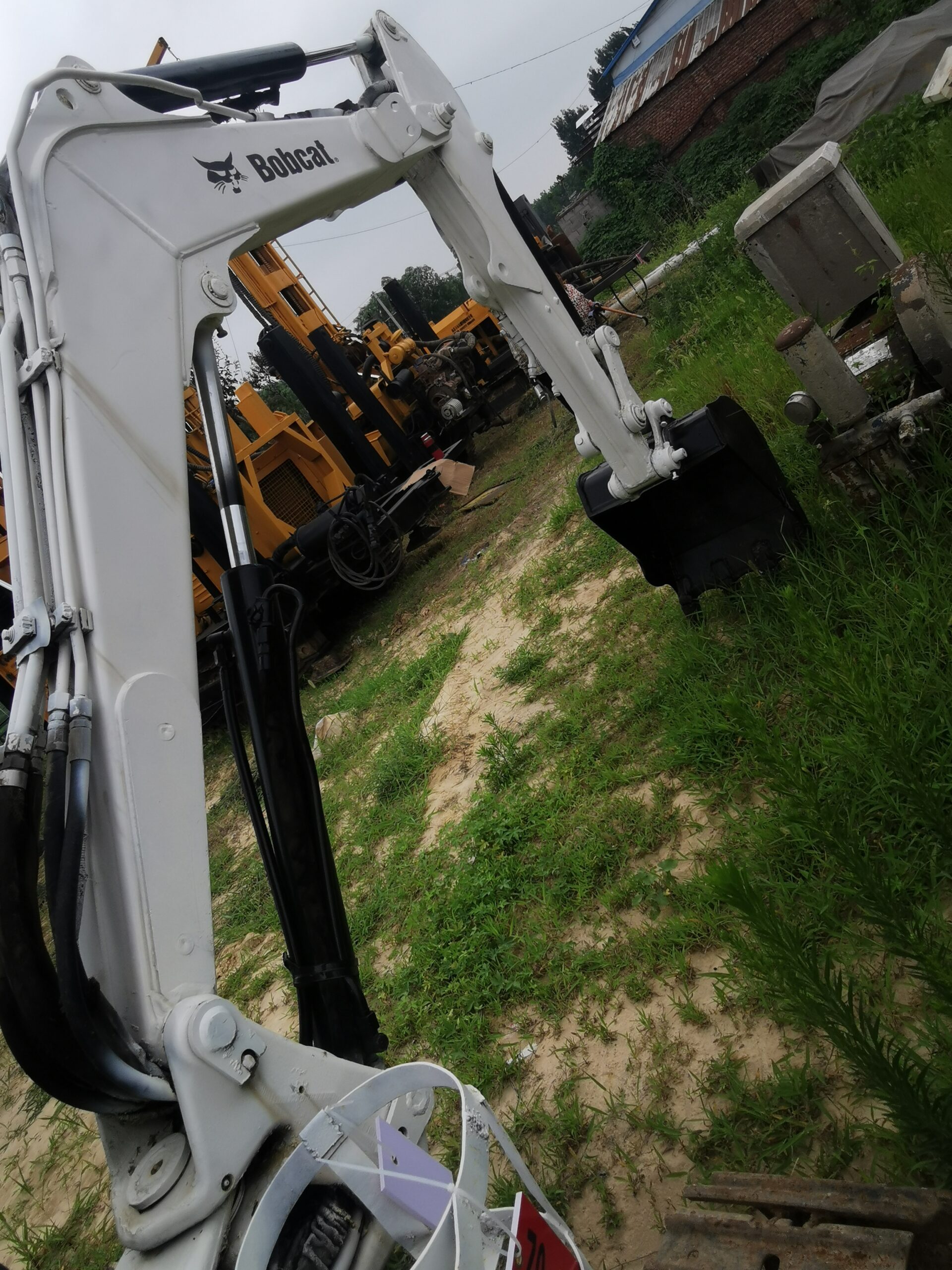

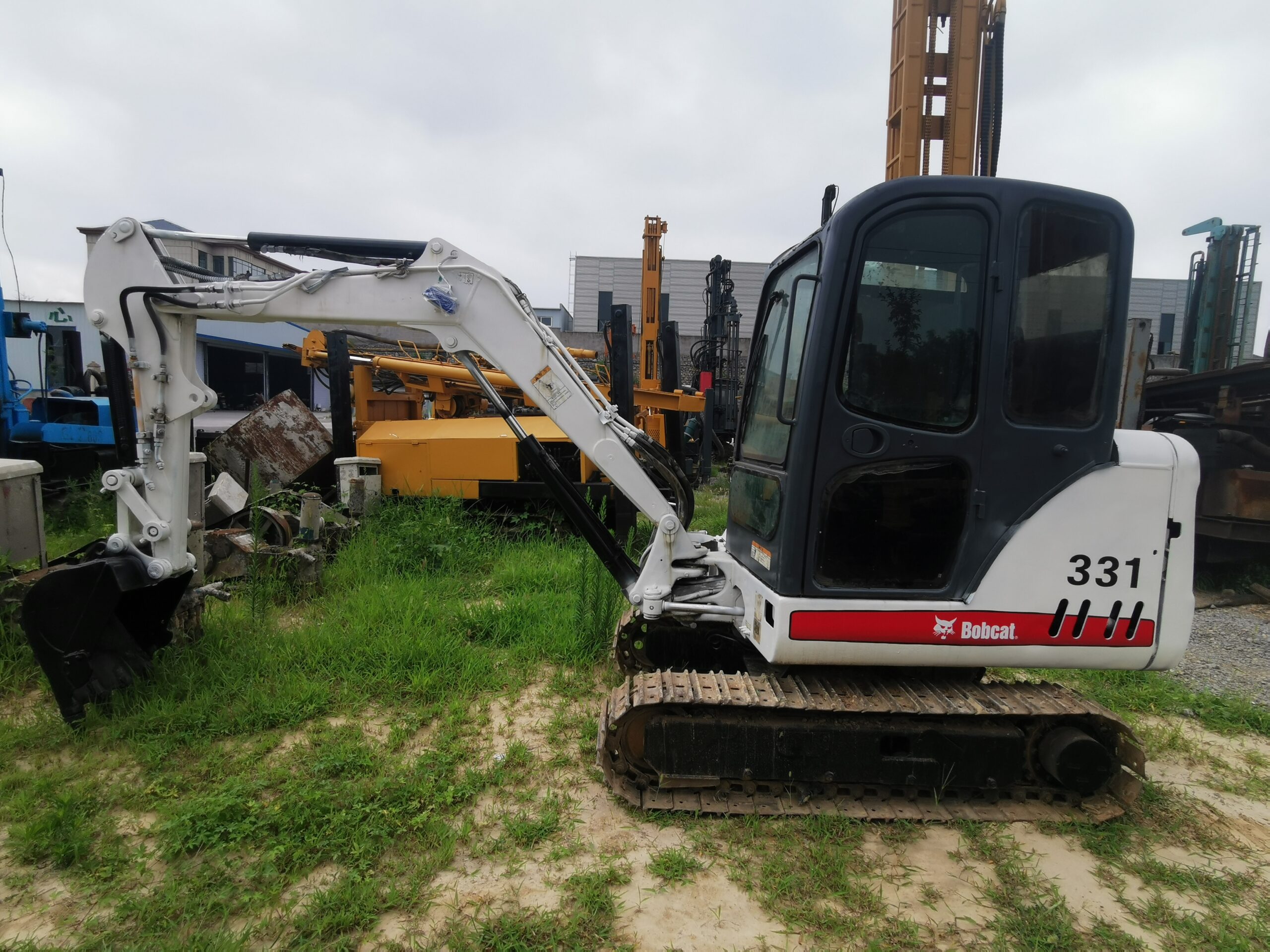

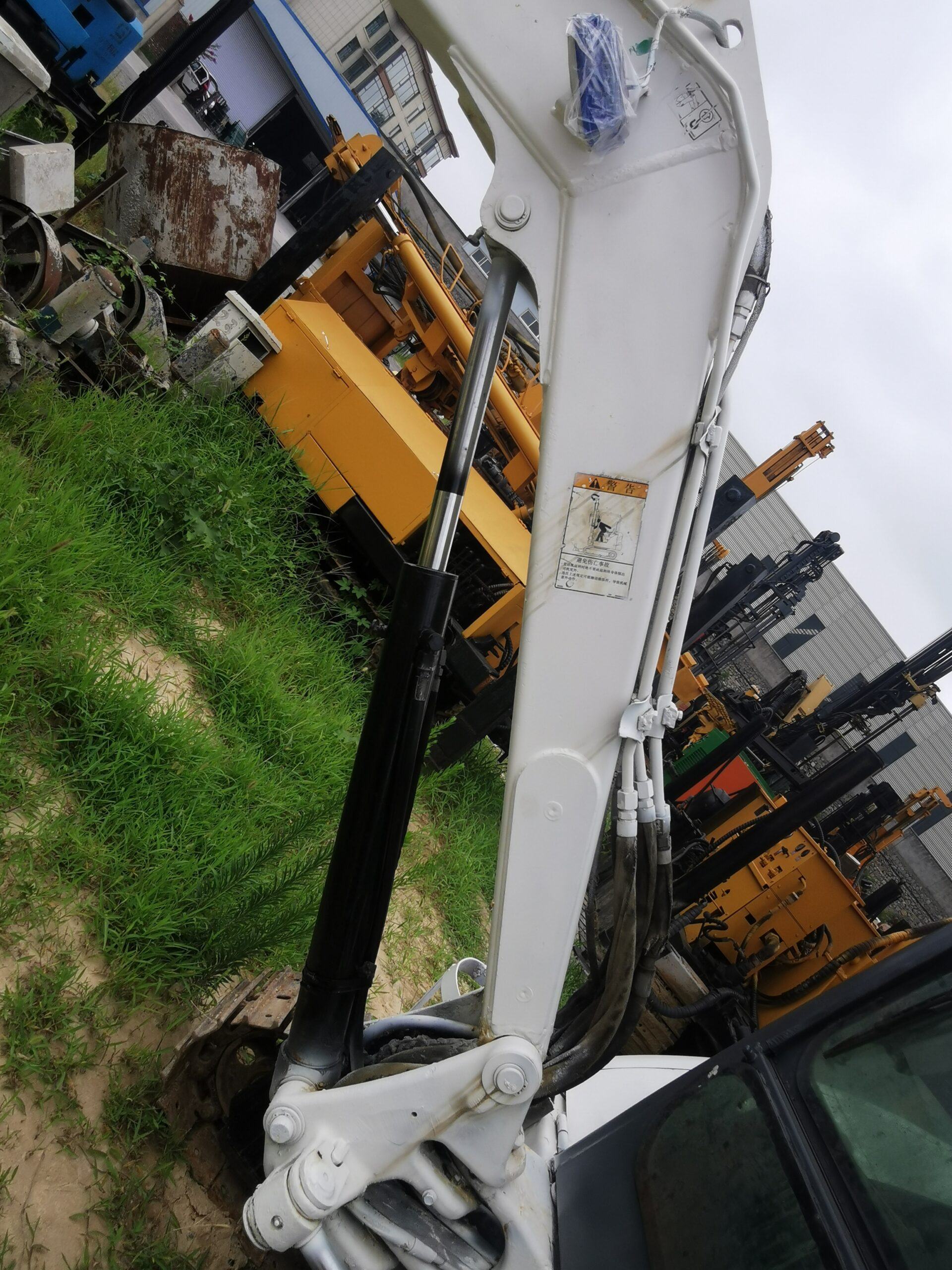

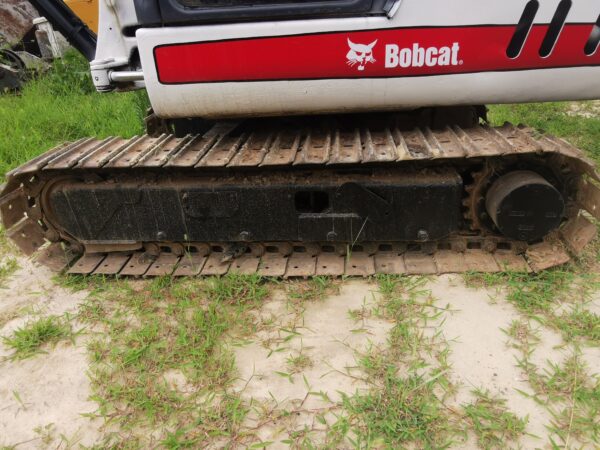

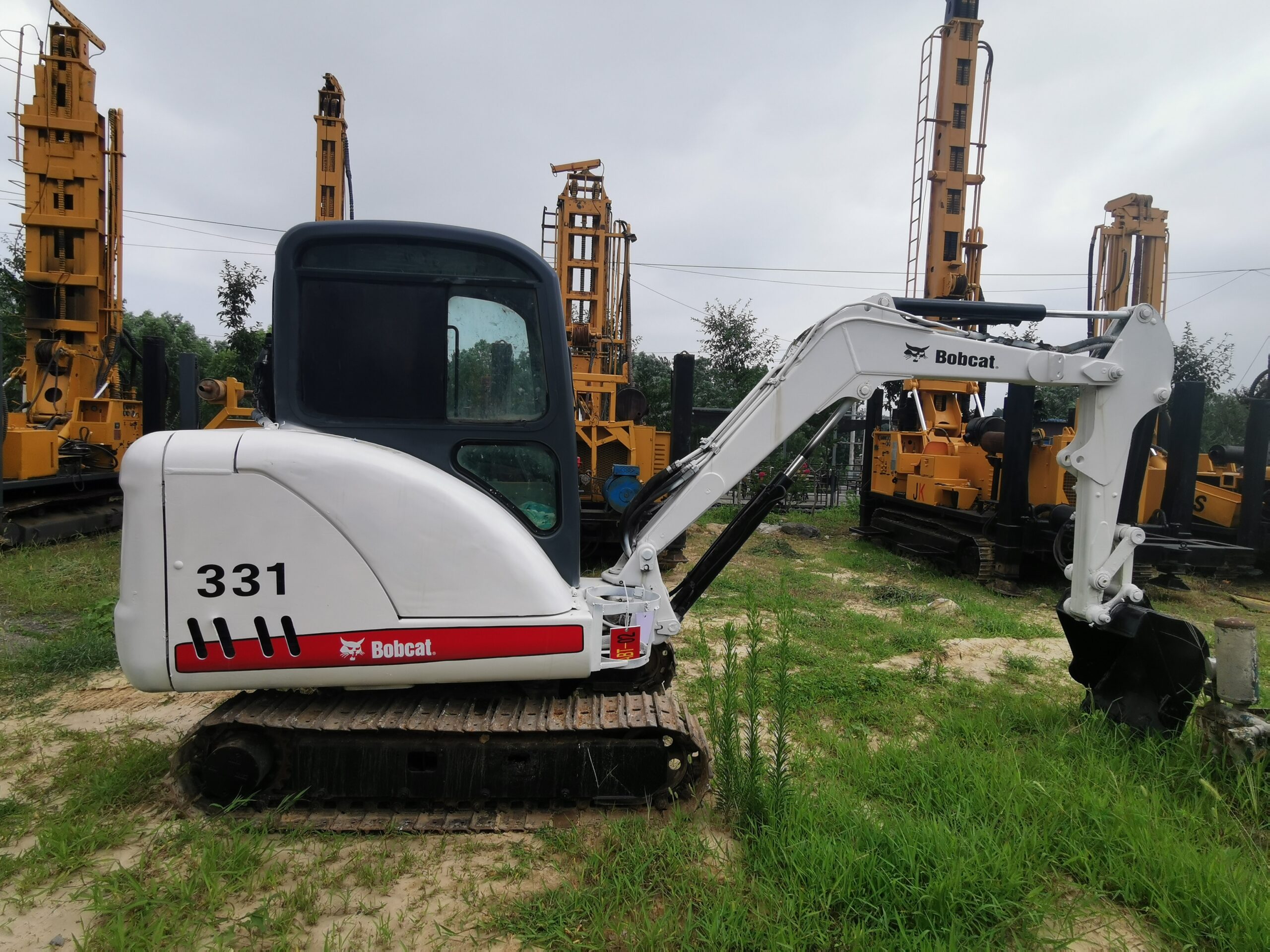

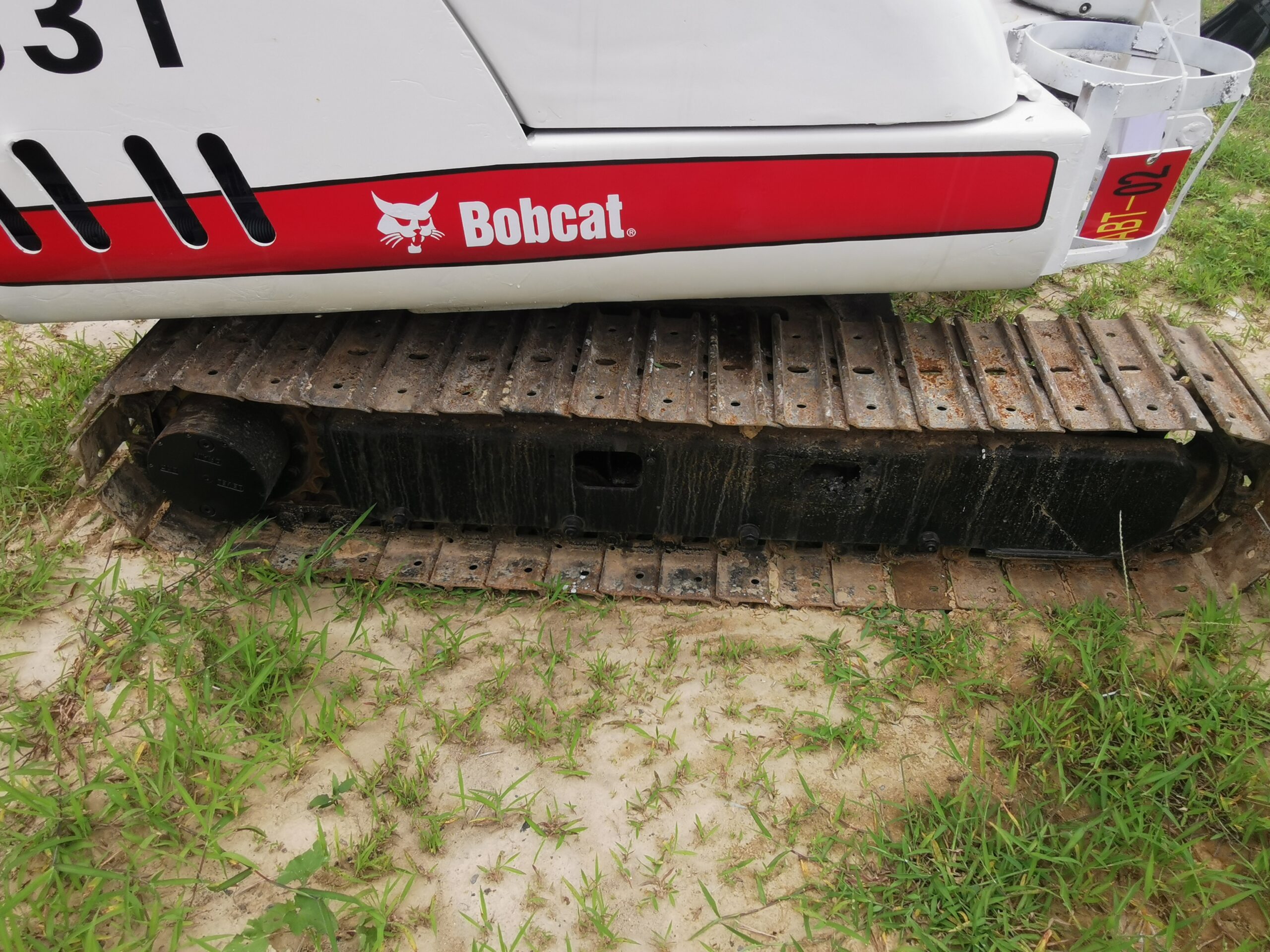

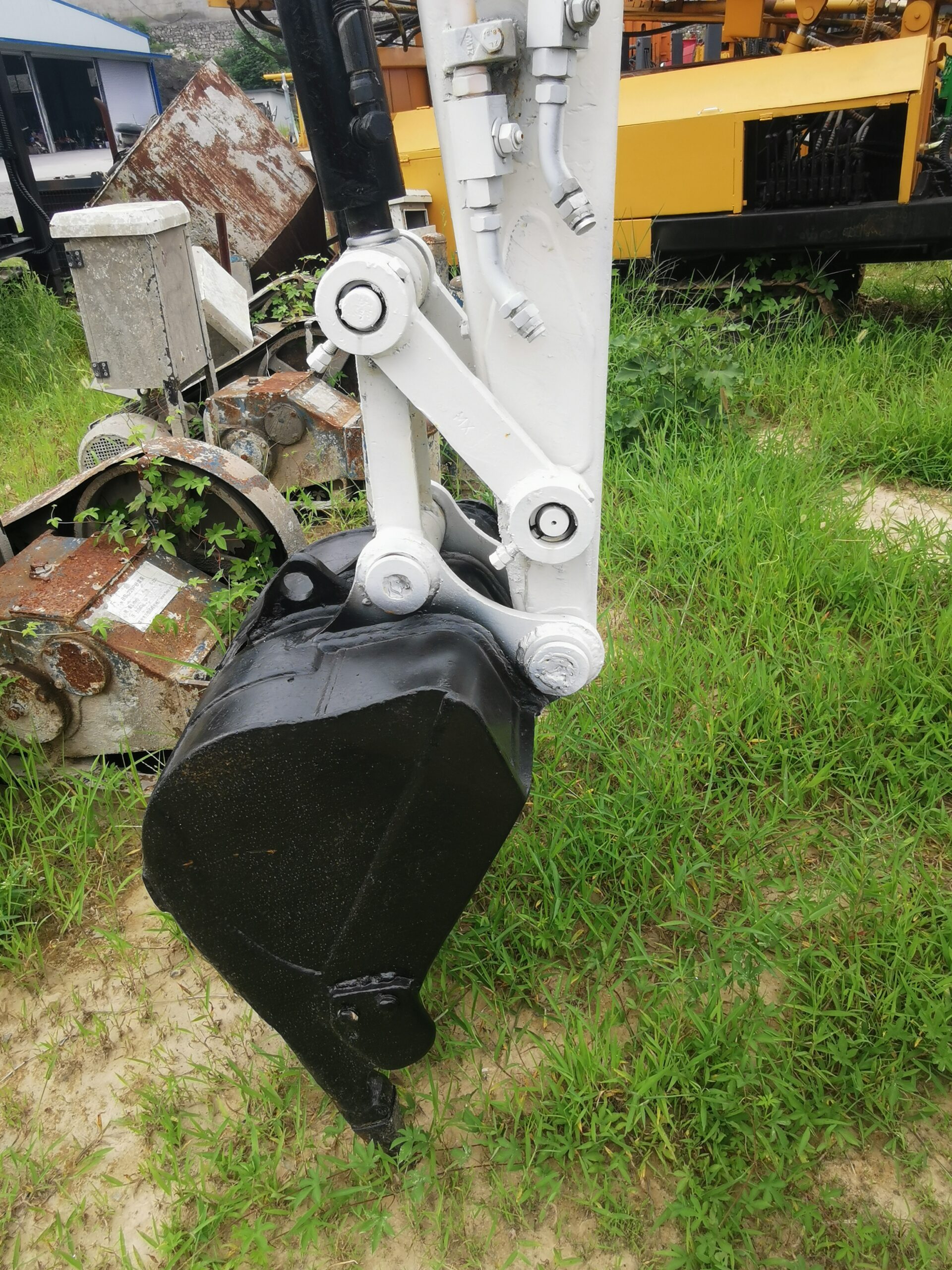

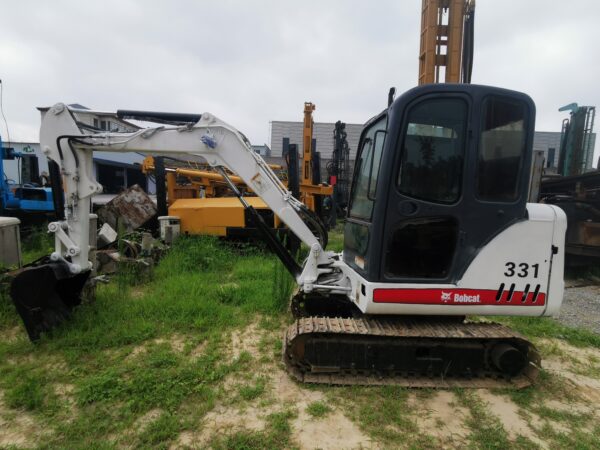

ABT02 ShanMao331 Used Excavating Machinery

描述

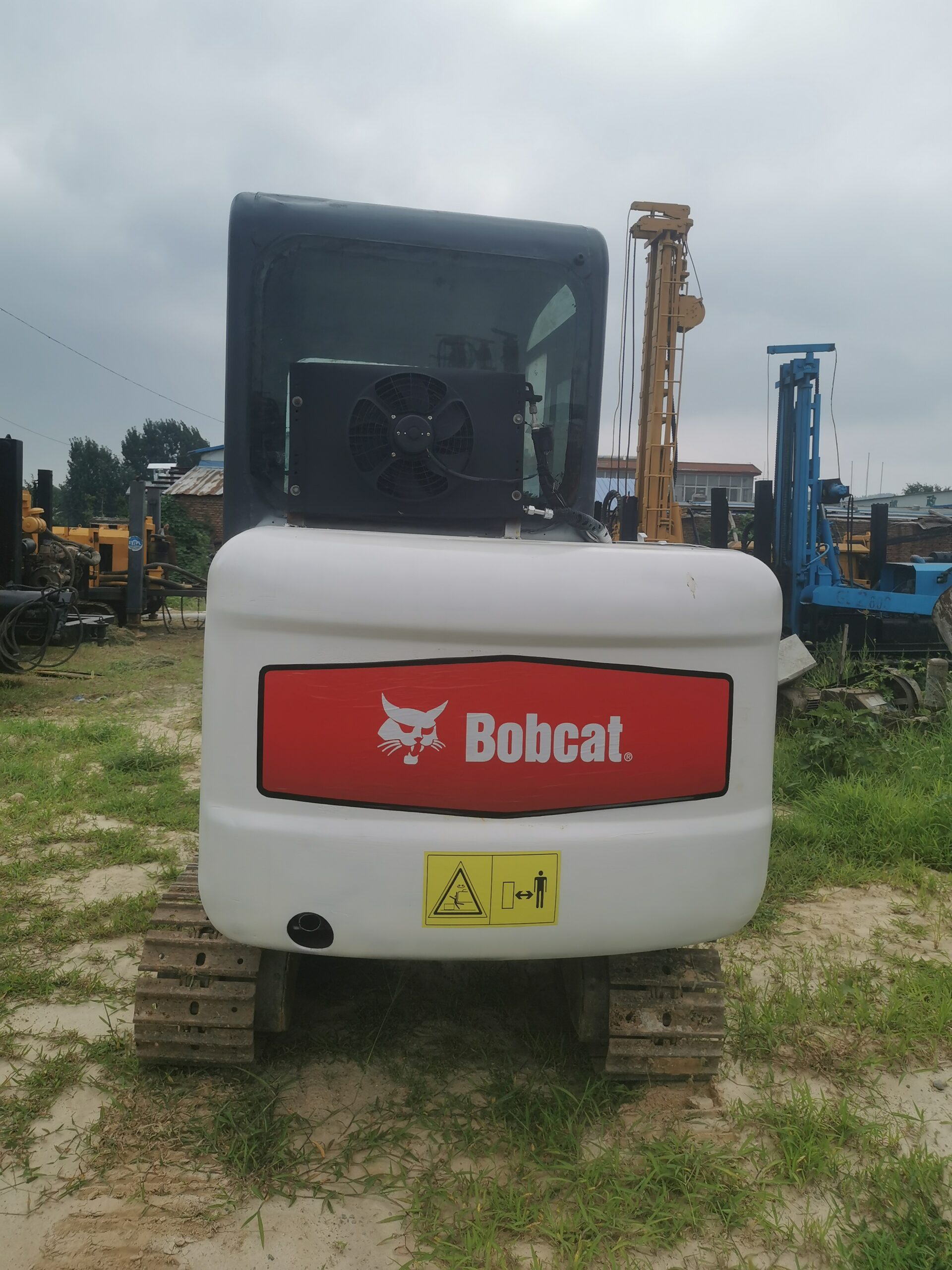

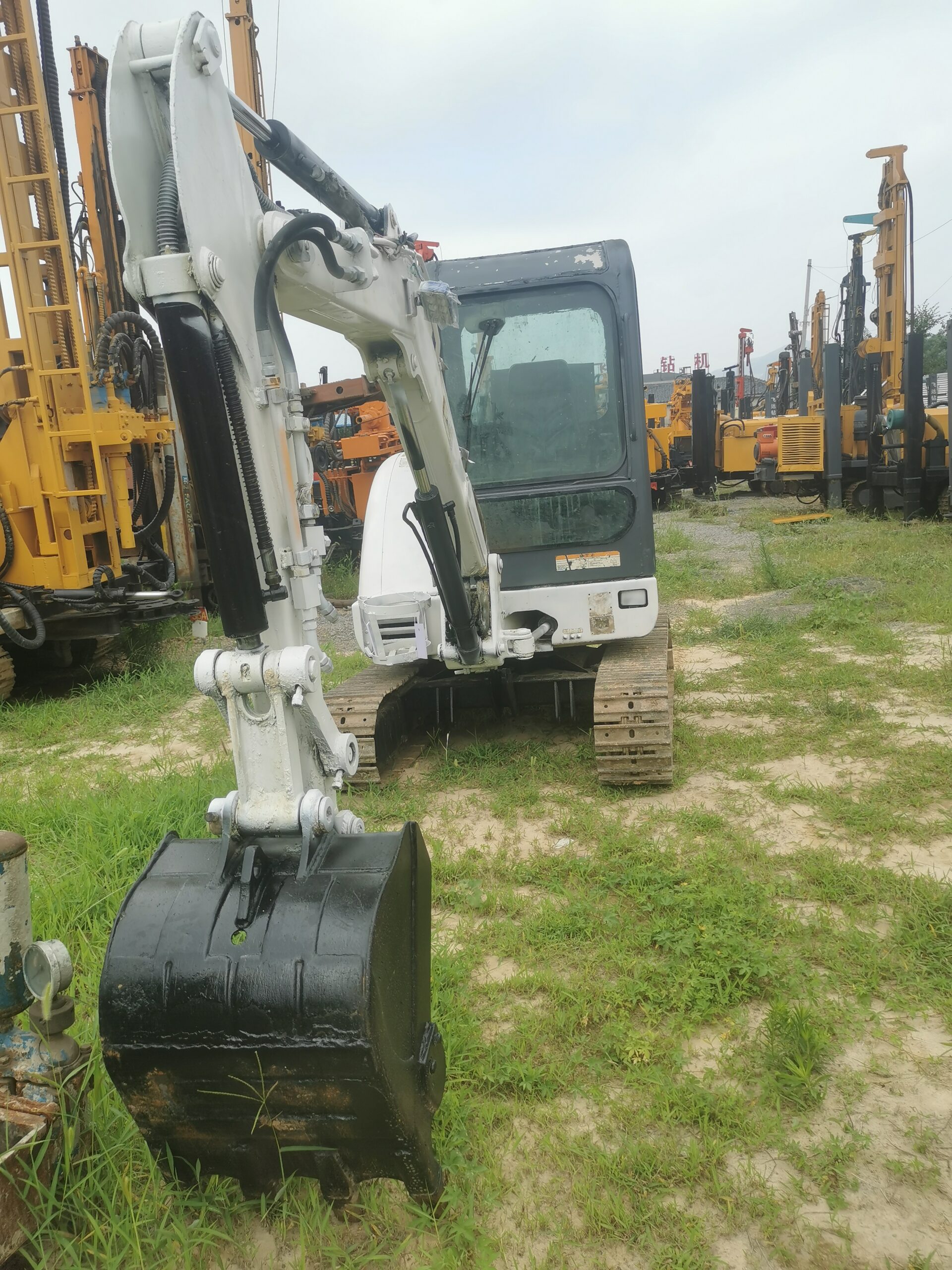

Product Name:ShanMao  excavating machinery 331 on sale

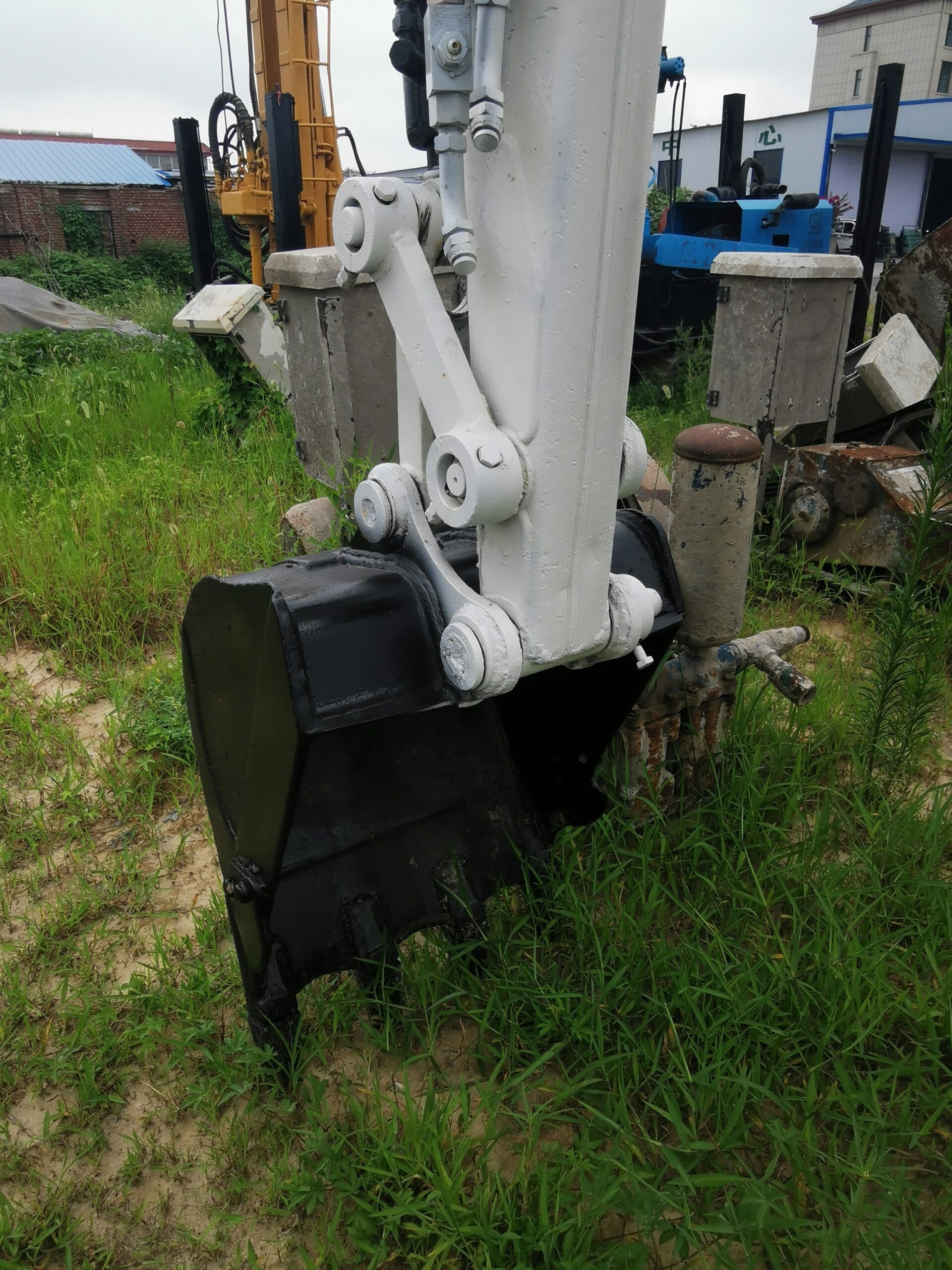

Standard bucket capacity: 0.1m ³

Vehicle weight: 3273KG

Engine power: 29.9KW

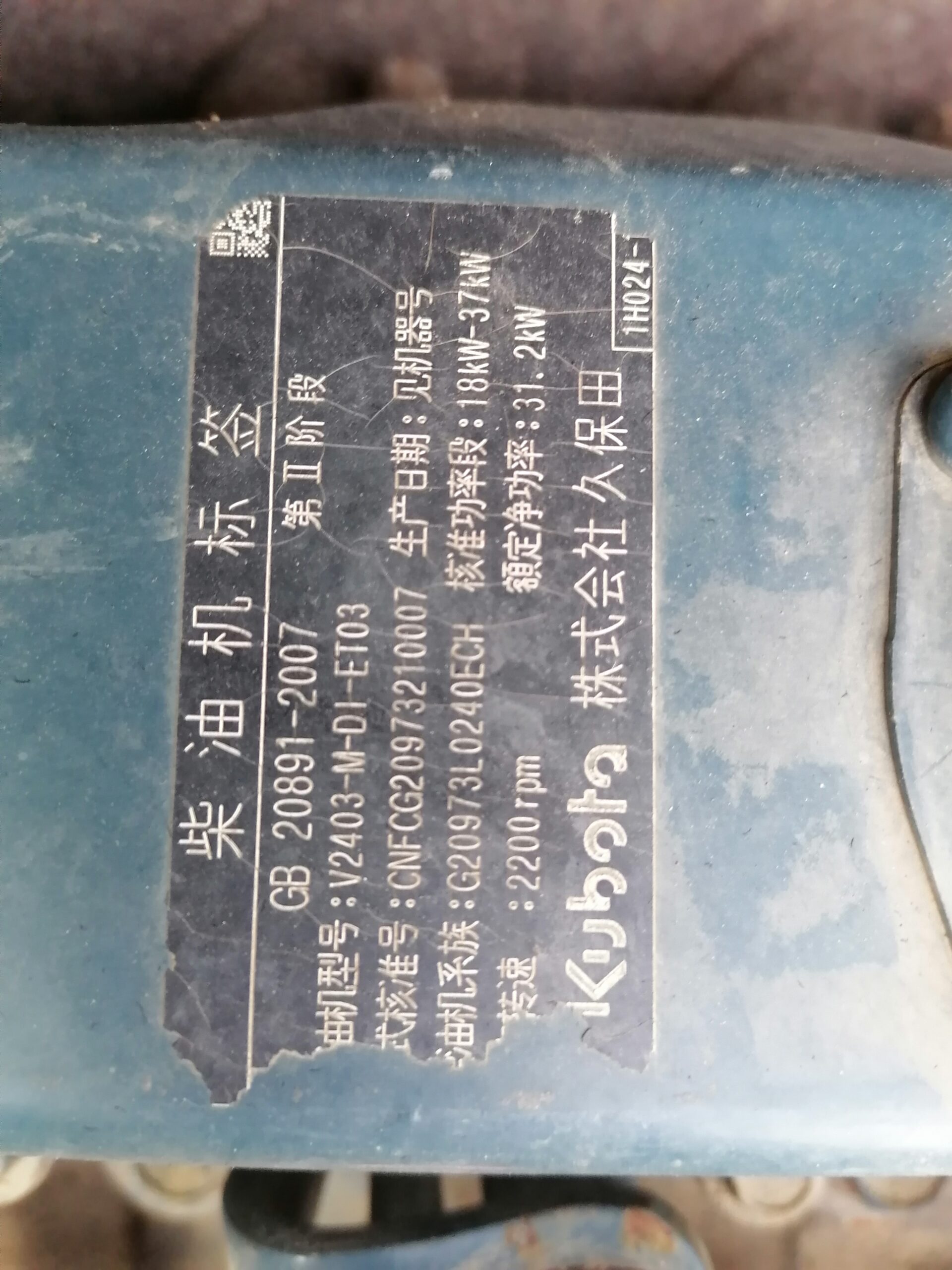

Engine brand: Kubota

Engine displacement: 2.2L

Maximum excavation height: 4539mm

Maximum unloading height: 3185mm

Maximum excavation depth: 3101mm

Maximum excavation radius: 4974mm

Bucket excavation force (ISO): 31.136kN

Boom deflection angle (left/right): 90/50 °

Maximum flow rate of main pump: 62.1L/min

Ground specific pressure: 31.2kPa

Driving (walking) speed (high/low): 5.6km/h

Feature:

1. Powerful power system: Equipped with high-performance engines and abundant power reserves, capable of handling various working environments and excavation tasks.

2. Flexibility and Mobility: Adopting a rigid chassis and independent walking device, it can maintain good stability and mobility on different terrains, and flexibly adapt to the requirements of excavation work.

3. Efficient excavation ability: Equipped with advanced hydraulic systems and optimized working devices, it can achieve fast and accurate excavation actions, and has a large excavation depth and force.

4. Operation comfort: The optimized design of the driver’s cab provides a comfortable working environment, with a good view and a user-friendly operation control system, allowing the driver to easily and accurately control the excavator.

Application Industry:

(1)Excavation of building and factory foundation

(2) Excavation of soil and stripping of mining site cover

(3) Loading operations in quarries, tunnels, underground power plants, and stockyards

(4) Excavation of channels, canals, and dredging of waterways

(5) After replacing the working device, operations such as pouring, lifting, installation, piling, and soil compaction can be carried out.
